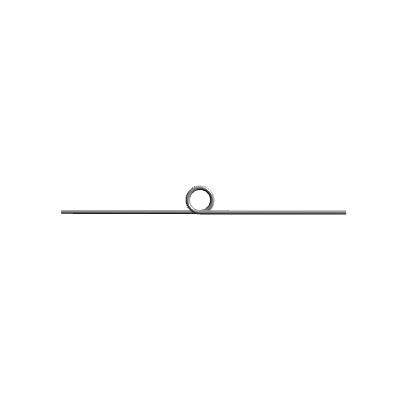

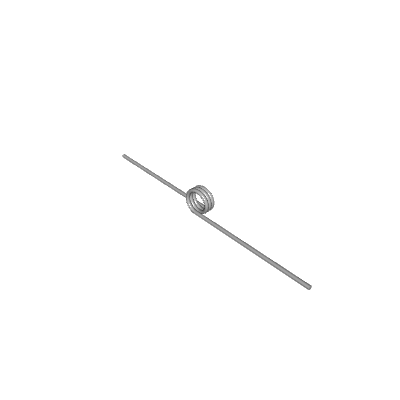

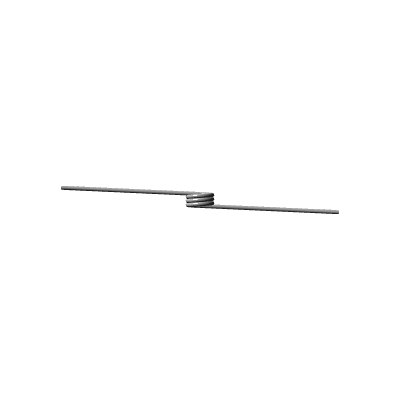

LTMR100J 04 S
Cost
$0.00
$0.00
Price
$0.00
Weight
0.00 lb.
Direction of Wind
Right Hand
Finish
Passivate per ASTM A967
Material
Stainless Steel
Total Coils
3.000
Product Series
Published Stock Code
LTMR100J04S
Product Type
Torsion Spring
Product Category
Stock
Revision
NR
Rate (N/mm)
2.95
Rate (kg/cm)
0.03
Rate (lb/in)
0.03
Rate (gm/mm)
300.71
Weight per Item (lb)
0.00
Material Specification
ASTM A313
Inside Diameter (cm)
0.50
Inside Diameter (in)
0.20
Inside Diameter (mm)
5.00
Outside Diameter (cm)
0.701
Outside Diameter (in)
0.28
Outside Diameter (mm)
7.01
Outside Diameter - Build Spec (in)
0.28
Outside Diameter Tolerance (cm)
0.02
Outside Diameter Tolerance (in)
0.01
Outside Diameter Tolerance (mm)
0.18
Outside Diameter Tolerance - Build Spec (in)
0.01
Rate (gm/cm)
30.07
Rate (kg/mm)
0.30
Rate (N/cm)
0.29
Rate - Build Spec (lb/in)
0.03
Rate Tolerance (gm/cm)
0.00
Rate Tolerance (gm/mm)
0.00
Rate Tolerance (kg/cm)
0.00
Rate Tolerance (kg/mm)
0.00
Rate Tolerance (lb/in)
0.00
Rate Tolerance (N/cm)
0.00
Rate Tolerance (N/mm)
0.00
Rate Tolerance - Build Spec (lb/in)
0.00
Total Coils - Build Spec
3.00
Wire Diameter (cm)
0.10
Wire Diameter (inch)
0.04
Wire Diameter (mm)
0.99
Wire Diameter - Build Spec (in)
0.04
Material Short Description
SS
Product Series
Torsion Springs
Inside Diameter Tolerance (cm)
Reference
Inside Diameter Tolerance (in)
Reference
Inside Diameter Tolerance (mm)
Reference
Inside Diameter Tolerance - Build Spec (in)
Reference
Body Length - Build Spec. (in)
0.16
Body Length (in)
0.16
Body Length (mm)
3.99
Body Length (cm)
0.40
Length of Leg (in)
1.38
Length of Leg - Build Spec. (in)
1.38
Length of Leg (mm)
35.00
Length of Leg (cm)
3.50
Length of Leg Tolerance - Build Spec. (in)
0.04
Length of Leg Tolerance (in)
0.04
Length of Leg Tolerance (mm)
1.02
Length of Leg Tolerance (cm)
0.102
Body Length Tolerance - Build Spec. (in)
Reference
Body Length Tolerance (in)
Reference
Body Length Tolerance (mm)
Reference
Body Length Tolerance (cm)
Reference
To Work Over Rod/Mandrel - Build Spec. (in)
0.16
To Work Over Rod/Mandrel (in)
0.16
To Work Over Rod/Mandrel (mm)
3.99
To Work Over Rod/Mandrel (cm)
0.40
To Work Over Rod/Mandrel Toler. - Build Spec. (in)
0
To Work Over Rod/Mandrel Tolerance (in)
0
To Work Over Rod/Mandrel Tolerance (mm)
0
To Work Over Rod/Mandrel Tolerance (cm)
0
Max Torque - Build Spec. (lb/in)
1.12
Max Torque (lb/in)
1.12
Max Torque (N/mm)
127.00
Max Torque (N/cm)
12.70
Max Torque (kg/mm)
12.95
Max Torque (kg/cm)
1.30
Max Torque (gm/mm)
12950.10
Max Torque (gm/cm)
1295.01
Max Torque Tolerance - Build Spec. (lb/in)
0.11
Max Torque Tolerance (lb/in)
0.11
Max Torque Tolerance (N/mm)
12.65
Max Torque Tolerance (kg/mm)
1.29
Max Torque Tolerance (kg/cm)
0.13
Max Torque Tolerance (gm/mm)
1290.40
Max Torque Tolerance (gm/cm)
129.04
Deflection to Max Torque
43.00
Deflection to Max Torque Tolerance
0
Radius - Build Spec. (in)
0.69
Radius (in)
0.69
Radius (mm)
17.50
Radius (cm)
1.75
Free Position of Ends
180.00
Free Position of Ends Tolerance
10.00
Max Torque Tolerance (N/cm)
1.26543
Inside Diameter - Build Spec (in)
0.20
Model Code
LTMR
