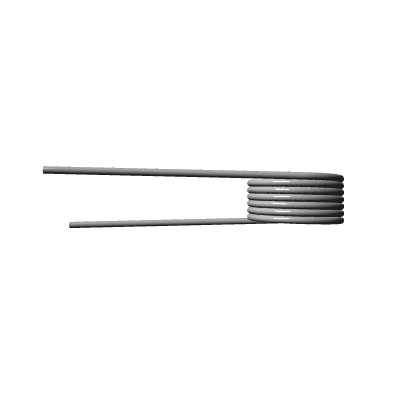

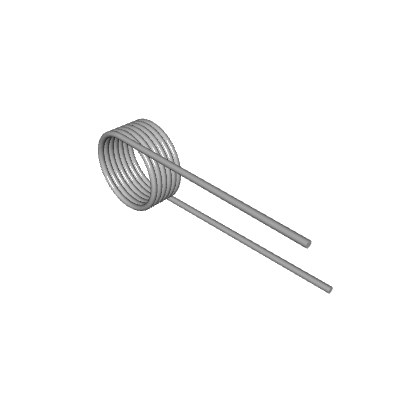

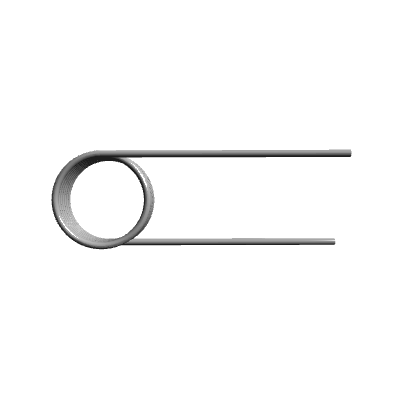

LTML100T 06 M
Cost
$0.00
$0.00
Price
$0.00
Weight
0.00 lb.
Direction of Wind
Left Hand
Finish
Zinc Plate and Bake per ASTM B633
Material
Music Wire
Total Coils
6.500
Product Series
Published Stock Code
LTML100T06M
Product Type
Torsion Spring
Product Category
Stock
Revision
NR
Rate (N/mm)
0.68
Rate (kg/cm)
0.01
Rate (lb/in)
0.01
Rate (gm/mm)
69.13
Weight per Item (lb)
0.00
Material Specification
ASTM A228
Inside Diameter (cm)
1.20
Inside Diameter (in)
0.47
Inside Diameter (mm)
11.99
Outside Diameter (cm)
1.400
Outside Diameter (in)
0.55
Outside Diameter (mm)
14.00
Outside Diameter - Build Spec (in)
0.55
Outside Diameter Tolerance (cm)
0.04
Outside Diameter Tolerance (in)
0.02
Outside Diameter Tolerance (mm)
0.38
Outside Diameter Tolerance - Build Spec (in)
0.02
Rate (gm/cm)
6.91
Rate (kg/mm)
0.07
Rate (N/cm)
0.07
Rate - Build Spec (lb/in)
0.01
Rate Tolerance (gm/cm)
0.00
Rate Tolerance (gm/mm)
0.00
Rate Tolerance (kg/cm)
0.00
Rate Tolerance (kg/mm)
0.00
Rate Tolerance (lb/in)
0.00
Rate Tolerance (N/cm)
0.00
Rate Tolerance (N/mm)
0.00
Rate Tolerance - Build Spec (lb/in)
0.00
Total Coils - Build Spec
6.50
Wire Diameter (cm)
0.10
Wire Diameter (inch)
0.04
Wire Diameter (mm)
0.99
Wire Diameter - Build Spec (in)
0.04
Material Short Description
MW
Product Series
Torsion Springs
Inside Diameter Tolerance (cm)
Reference
Inside Diameter Tolerance (in)
Reference
Inside Diameter Tolerance (mm)
Reference
Inside Diameter Tolerance - Build Spec (in)
Reference
Body Length - Build Spec. (in)
0.28
Body Length (in)
0.28
Body Length (mm)
7.01
Body Length (cm)
0.70
Length of Leg (in)
1.38
Length of Leg - Build Spec. (in)
1.38
Length of Leg (mm)
35.00
Length of Leg (cm)
3.50
Length of Leg Tolerance - Build Spec. (in)
0.04
Length of Leg Tolerance (in)
0.04
Length of Leg Tolerance (mm)
1.02
Length of Leg Tolerance (cm)
0.102
Body Length Tolerance - Build Spec. (in)
Reference
Body Length Tolerance (in)
Reference
Body Length Tolerance (mm)
Reference
Body Length Tolerance (cm)
Reference
To Work Over Rod/Mandrel - Build Spec. (in)
0.39
To Work Over Rod/Mandrel (in)
0.39
To Work Over Rod/Mandrel (mm)
10.01
To Work Over Rod/Mandrel (cm)
1.00
To Work Over Rod/Mandrel Toler. - Build Spec. (in)
0
To Work Over Rod/Mandrel Tolerance (in)
0
To Work Over Rod/Mandrel Tolerance (mm)
0
To Work Over Rod/Mandrel Tolerance (cm)
0
Max Torque - Build Spec. (lb/in)
1.21
Max Torque (lb/in)
1.21
Max Torque (N/mm)
136.15
Max Torque (N/cm)
13.61
Max Torque (kg/mm)
13.88
Max Torque (kg/cm)
1.39
Max Torque (gm/mm)
13883.30
Max Torque (gm/cm)
1388.33
Max Torque Tolerance - Build Spec. (lb/in)
0.12
Max Torque Tolerance (lb/in)
0.12
Max Torque Tolerance (N/mm)
13.67
Max Torque Tolerance (kg/mm)
1.39
Max Torque Tolerance (kg/cm)
0.14
Max Torque Tolerance (gm/mm)
1394.09
Max Torque Tolerance (gm/cm)
139.41
Deflection to Max Torque
201.00
Deflection to Max Torque Tolerance
0
Radius - Build Spec. (in)
0.69
Radius (in)
0.69
Radius (mm)
17.50
Radius (cm)
1.75
Free Position of Ends
360.00
Free Position of Ends Tolerance
10.00
Max Torque Tolerance (N/cm)
1.36712
Inside Diameter - Build Spec (in)
0.47
Model Code
LTML
