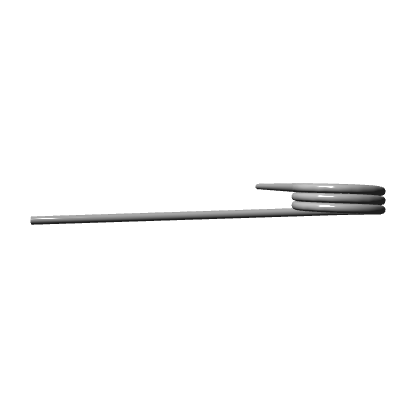

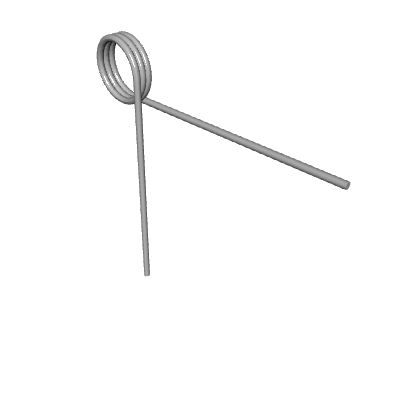

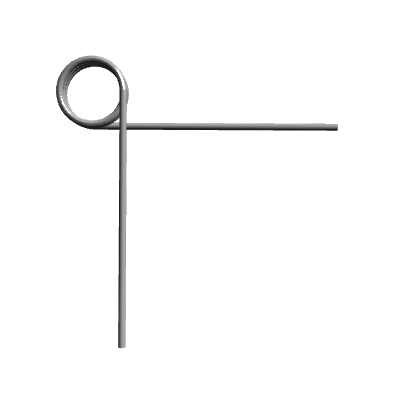

LTML060H 05 M
Cost
$0.00
$0.00
Price
$0.00
Weight
0.00 lb.
Direction of Wind
Left Hand
Finish
Zinc Plate per ASTM B633 (Factory Option to Pre-Galv or Pre-Coated Zinc Wire)
Material
Music Wire
Total Coils
2.750
Product Series
Published Stock Code
LTML060H05M
Product Type
Torsion Spring
Product Category
Stock
Revision
NR
Rate (N/mm)
0.50
Rate (kg/cm)
0.01
Rate (lb/in)
0.00
Rate (gm/mm)
50.69
Weight per Item (lb)
0.00
Material Specification
ASTM A228
Inside Diameter (cm)
0.50
Inside Diameter (in)
0.20
Inside Diameter (mm)
5.00
Outside Diameter (cm)
0.620
Outside Diameter (in)
0.24
Outside Diameter (mm)
6.20
Outside Diameter - Build Spec (in)
0.24
Outside Diameter Tolerance (cm)
0.02
Outside Diameter Tolerance (in)
0.01
Outside Diameter Tolerance (mm)
0.18
Outside Diameter Tolerance - Build Spec (in)
0.01
Rate (gm/cm)
5.07
Rate (kg/mm)
0.05
Rate (N/cm)
0.05
Rate - Build Spec (lb/in)
0.00
Rate Tolerance (gm/cm)
0.00
Rate Tolerance (gm/mm)
0.00
Rate Tolerance (kg/cm)
0.00
Rate Tolerance (kg/mm)
0.00
Rate Tolerance (lb/in)
0.00
Rate Tolerance (N/cm)
0.00
Rate Tolerance (N/mm)
0.00
Rate Tolerance - Build Spec (lb/in)
0.00
Total Coils - Build Spec
2.75
Wire Diameter (cm)
0.06
Wire Diameter (inch)
0.02
Wire Diameter (mm)
0.61
Wire Diameter - Build Spec (in)
0.02
Material Short Description
MW
Product Series
Torsion Springs
Inside Diameter Tolerance (cm)
Reference
Inside Diameter Tolerance (in)
Reference
Inside Diameter Tolerance (mm)
Reference
Inside Diameter Tolerance - Build Spec (in)
Reference
Body Length - Build Spec. (in)
0.09
Body Length (in)
0.09
Body Length (mm)
2.39
Body Length (cm)
0.24
Length of Leg (in)
0.87
Length of Leg - Build Spec. (in)
0.87
Length of Leg (mm)
22.00
Length of Leg (cm)
2.20
Length of Leg Tolerance - Build Spec. (in)
0.025
Length of Leg Tolerance (in)
0.025
Length of Leg Tolerance (mm)
0.64
Length of Leg Tolerance (cm)
0.064
Body Length Tolerance - Build Spec. (in)
Reference
Body Length Tolerance (in)
Reference
Body Length Tolerance (mm)
Reference
Body Length Tolerance (cm)
Reference
To Work Over Rod/Mandrel - Build Spec. (in)
0.16
To Work Over Rod/Mandrel (in)
0.16
To Work Over Rod/Mandrel (mm)
3.99
To Work Over Rod/Mandrel (cm)
0.40
To Work Over Rod/Mandrel Toler. - Build Spec. (in)
0
To Work Over Rod/Mandrel Tolerance (in)
0
To Work Over Rod/Mandrel Tolerance (mm)
0
To Work Over Rod/Mandrel Tolerance (cm)
0
Max Torque - Build Spec. (lb/in)
0.28
Max Torque (lb/in)
0.28
Max Torque (N/mm)
31.97
Max Torque (N/cm)
3.20
Max Torque (kg/mm)
3.26
Max Torque (kg/cm)
0.33
Max Torque (gm/mm)
3260.57
Max Torque (gm/cm)
326.06
Max Torque Tolerance - Build Spec. (lb/in)
0.03
Max Torque Tolerance (lb/in)
0.03
Max Torque Tolerance (N/mm)
3.16
Max Torque Tolerance (kg/mm)
0.32
Max Torque Tolerance (kg/cm)
0.03
Max Torque Tolerance (gm/mm)
322.60
Max Torque Tolerance (gm/cm)
32.26
Deflection to Max Torque
64.00
Deflection to Max Torque Tolerance
0
Radius - Build Spec. (in)
0.43
Radius (in)
0.43
Radius (mm)
11.00
Radius (cm)
1.10
Free Position of Ends
270.00
Free Position of Ends Tolerance
10.00
Max Torque Tolerance (N/cm)
0.31636
Inside Diameter - Build Spec (in)
0.20
Model Code
LTML
