Main view
side view
top view
3D
2D

Specifications



Download Spec Sheet

Imperial/Inches Metric
Physical Dimension

mm cm

Load

N kg gm




LWM08 030 0282S

Cost
$0.00
$0.00
Price
$0.00
Weight
0.00 lb.
Direction of Wind
Factory Option
Ends
Plain (End Turn is Wavy)
Finish
Passivate per ASTM A967
Material
Stainless Steel Type 17-7 PH
Total Coils
3.000
Product Series
Published Stock Code
LWM080300282S
Product Type
Compression Spring
Product Category
Stock
Revision
NR
Rate (N/mm)
28.81
Rate (kg/cm)
29.38
Rate (lb/in)
164.50
Rate (gm/mm)
2937.68
Weight per Item (lb)
0.00
Material Specification
AMS 5529
Free Length (cm)
0.282
Free Length (inch)
0.111
Free Length (mm)
2.820
Free Length - Build Spec (in)
0.11
Free Length Tolerance (cm)
0.06
Free Length Tolerance (in)
0.03
Free Length Tolerance (mm)
0.64
Free Length Tolerance - Build Spec (in)
0.03
Hole Diameter (cm)
0.80
Hole Diameter (inch)
0.32
Hole Diameter (mm)
8.00
Inside Diameter (cm)
0.66
Inside Diameter (in)
0.22
Inside Diameter (mm)
6.59
Outside Diameter (cm)
0.709
Outside Diameter (in)
0.28
Outside Diameter (mm)
7.09
Outside Diameter - Build Spec (in)
0.28
Rate (gm/cm)
29376.80
Rate (kg/mm)
2.94
Rate (N/cm)
288.10
Rate - Build Spec (lb/in)
164.50
Rate Tolerance (gm/cm)
7344.28
Rate Tolerance (gm/mm)
734.43
Rate Tolerance (kg/cm)
7.34
Rate Tolerance (kg/mm)
0.73
Rate Tolerance (lb/in)
41.13
Rate Tolerance (N/cm)
72.03
Rate Tolerance (N/mm)
7.20
Rate Tolerance - Build Spec (lb/in)
41.13
Rod Diameter (cm)
0.50
Rod Diameter (inch)
0.20
Rod Diameter (mm)
5.00
Solid Height (cm)
0.10
Solid Height (inch)
0.04
Solid Height (mm)
1.02
Total Coils - Build Spec
3.00
Wire Diameter (cm)
0.03
Wire Diameter (inch)
0.01
Wire Diameter (mm)
0.25
Wire Diameter - Build Spec (in)
0.01
Hole Diameter - Build Spec. (in)
0.32
Rod Diameter - Build Spec. (in)
0.20
Rod Diameter Tolerance - Build Spec. (in)
MIN
Rod Diameter Tolerance (in)
MIN
Rod Diameter Tolerance (mm)
MIN
Rod Diameter Tolerance (cm)
MIN
Solid Height - Build Spec. (in)
0.04
Material Short Description
17-7 PH
Load at Solid Height (lb)
11.68
Load at Solid Height - Build Spec. (lb)
11.68
Load at Solid Height (N)
51.96
Load at Solid Height (kg)
5.30
Load at Solid Height (gm)
5298.05
Active Coils - Build Spec.
3.00
Active Coils
3.00
Active Coils Tolerance - Build Spec.
Reference
Active Coils Tolerance
Reference
Product Series
REDUX™ Wave Series (metric)
Inside Diameter Tolerance (cm)
Reference
Inside Diameter Tolerance (in)
Reference
Inside Diameter Tolerance (mm)
Reference
Inside Diameter Tolerance - Build Spec (in)
Reference
Outside Diameter Tolerance (cm)
Reference
Outside Diameter Tolerance (in)
Reference
Outside Diameter Tolerance (mm)
Reference
Outside Diameter Tolerance - Build Spec (in)
Reference
Nominal Load - Build Spec. (lb)
6.74
Nominal Load (lb)
6.74
Nominal Load (N)
30.00
Nominal Load (kg)
3.06
Nominal Load (gm)
3059.08
Working Height - Build Spec. (in)
0.07
Working Height (in)
0.07
Working Height (cm)
0.18
Working Height (mm)
1.78
Waves per Turn
2.50
Material Width (in)
0.03
Material Width (mm)
0.81
Material Width (cm)
0.08
Inside Diameter - Build Spec (in)
0.22
Pitch - CAD Spec
0.03
Wave Height - CAD Spec
0.02
B Value - CAD Spec
0.01
Model Code
LWM

Wave Spring: OD 7.09 mm, FL 2.82 mm, Stainless Steel Type 17-7 PH

REDUX™ Wave Series (metric)

Redux Wave Springs with Big Performance.

Lee Spring LWM08 030 0282S is a precision wave spring from the REDUX™ Wave Series (metric), engineered for applications requiring controlled spring force in extremely limited axial space with superior load-to-height ratio. This spring features a 7.09-mm outside diameter (0.279 inch) with a 8-mm hole diameter (0.315 inch) designed to work over a 5-mm rod diameter (0.197 inch). Made from Stainless Steel Type 17-7 PH with a 0.25-mm wire thickness (0.01 inch), the spring provides a free length of 2.82 mm (0.111 inch) and compresses to a working height of 1.78 mm (0.07 inch) with a solid height of 1.02 mm (0.04 inch). The spring delivers a spring rate of 28.81 N/mm (164.502 lb/inch) with a nominal load of 30 N (6.744 lb) through its 2.5 waves per turn configuration and 0.81 -mm radial wall (0.032 inch). With a Passivate per ASTM A967 finish, this wave spring provides consistent performance for applications requiring maximum force in minimal space, including bearing preload, valve assemblies, and precision mechanical systems where conventional coil springs cannot achieve the required load-to-height performance.

REDUX™ Wave Springs: Space-Saving Compression Spring Solutions

Lee Spring's REDUX™ Wave Springs

Lee Spring's REDUX™ Wave Springs deliver superior performance in space-constrained environments where traditional compression springs fall short. These innovative wave springs are specifically engineered to replace conventional round wire compression springs in applications demanding precise load deflection specifications within minimal installation space.

Key Benefits of REDUX™ Wave Springs

  • Space Optimization: Up to 50% reduction in assembly size and weight compared to traditional coil springs.
  • Precision Engineering: Manufactured from premium Type 17-7 Stainless Steel flat wire with continuous precise coils, uniform diameters, and wave heights for consistent performance.
  • Superior Load-to-Space Ratio: Equal deflection and load characteristics in a dramatically reduced operating height.

Technical Specifications

Constructed from Stainless Steel Type 17-7 PH, a precipitation-hardened alloy that provides exceptional strength and corrosion resistance. Springs utilize pre-tempered flat wire formed into continuous coils, eliminating weak points found in welded or joined spring designs.

These wave springs operate reliably at temperatures up to 650°F (340°C), making them suitable for high-temperature applications where conventional springs may fail. All springs receive a passivated surface finish that enhances corrosion resistance and provides a clean, professional appearance.

The continuous coil construction with uniform diameter and wave heights ensures predictable load-deflection curves and consistent performance across the entire spring range. This precision manufacturing approach eliminates the variability often encountered with traditional compression spring production methods.

Applications for Wave Springs

  • Space-critical assemblies requiring load deflection control
  • High-temperature applications up to 650°F
  • Precision instruments and devices
  • Automotive components
  • Aerospace applications
  • Medical devices
  • Electronic assemblies

Why Choose REDUX™ Wave Springs?

Space Efficiency

Deliver identical load and deflection characteristics while reducing operating height by up to 50% compared to traditional compression springs.

Material Advantages

  • Excellent corrosion resistance
  • High-temperature stability
  • Superior fatigue life
  • Consistent spring rates

Manufacturing Precision

  • Uniform wave geometry
  • Predictable load characteristics
  • Consistent performance across production runs
  • Reduced manufacturing tolerances

Comparison: Wave Springs vs. Conventional Compression Springs

Traditional Coil Springs

  • Larger axial space requirements
  • Heavier assembly weight
  • Limited space optimization

REDUX™ Wave Springs

  • Compact footprint design
  • Lightweight construction
  • Optimal space utilization
  • Equal load and deflection performance

REDUX™ Wave Series (metric) have useful applications in various industries, including:

  • Medical devices
  • Firearms
  • Pharmaceutical delivery devices
  • Lighting and electrical control
  • Petro-chemical processes
  • Communication devices
  • Aerospace
  • Testing and measurement equipment
  • Marine applications
  • Automotive
  • Locks and security devices
  • Precision Instruments
  • Hardware

...and many more applications

449251
Product Wave Spring OD 0.279 in, FL 0.111 in, Stainless Steel Type 17-7 PH
Product Wave Spring OD 7.09 mm, FL 2.82 mm, Stainless Steel Type 17-7 PH
Part Number LWM08 030 0282S
Series REDUX™ Wave Series (metric)
Hole Diameter (cm) 0.8
Hole Diameter (inch) 0.315
Hole Diameter (mm) 8
Rod Diameter (cm) 0.5
Rod Diameter (inch) 0.197
Rod Diameter (mm) 5
Free Length (cm) 0.282
Free Length (inch) 0.111
Free Length (mm) 2.82
Working Height (cm) 0.178
Working Height (inch) 0.07
Working Height (mm) 1.78
Rate (gm/cm) 29376.8
Rate (gm/mm) 2937.68
Rate (kg/cm) 29.377
Rate (kg/mm) 2.9377
Rate (lb/inch) 164.502
Rate (N/cm) 288.1
Rate (N/mm) 28.81
Nominal Load (gm) 3059.08
Nominal Load (kg) 3.059
Nominal Load (lb) 6.744
Nominal Load (N) 30
Wire Thickness (cm) 0.025
Wire Thickness (inch) 0.01
Wire Thickness (mm) 0.25
Material Stainless Steel Type 17-7 PH
Outside Diameter (cm) 0.709
Outside Diameter (inch) 0.279
Outside Diameter (mm) 7.09
Solid Height (cm) 0.102
Solid Height (inch) 0.04
Solid Height (mm) 1.02
Waves per Turn 2.5
Radial Wall (cm) 0.081
Radial Wall (inch) 0.032
Radial Wall (mm) 0.81
Finish Passivate per ASTM A967
3 0.0201114 0.00823022 0.111 0.025 0.315 0.279 0.031111 164.502 41.126 0.197 0.04 11.68 2.5 0.01 0.032

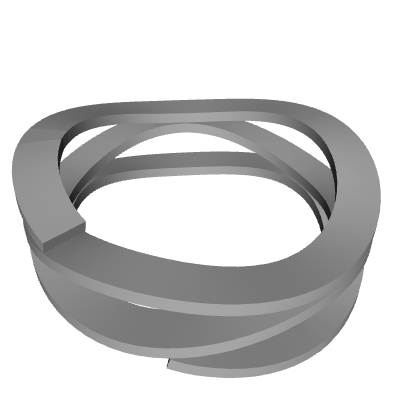

Default View

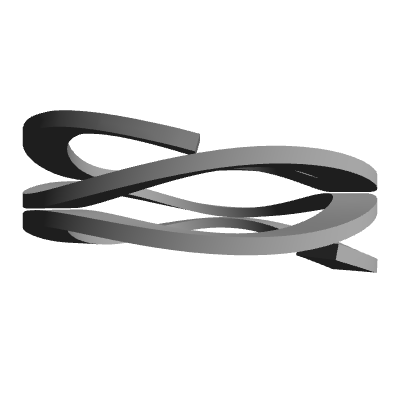

Side view

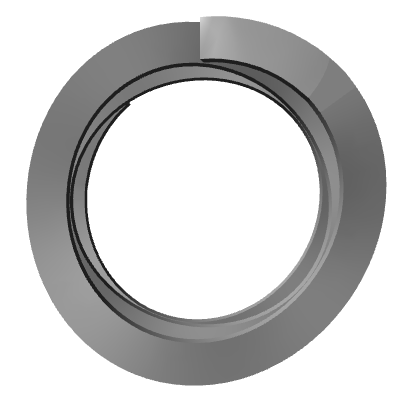

Top view
Quantity Price
1 - 19 $5.060
20 - 49 $3.160
50 - 99 $2.280
100 - 199 $1.570
200 - 299 $1.106
300 - 399 $1.023
400 - 499 $0.958
500 - 599 $0.873
600 - 699 $0.803
700 - 799 $0.750
800 - 899 $0.702
900 - 999 $0.661
1000 $0.625
