Lee Spring LEM080AC 03 S is a precision extension spring from the Standard Extension Series (metric) series, engineered for applications requiring reliable quality extension springs. This spring features a 3.99-mm outside diameter (0.157 inch) with 2.41-mm loop inside diameter (0.095 inch) and extends from a free length of 24.61 mm (0.969 inch) to a maximum extended length of 31.27 mm (1.231 inch). Made from Stainless Steel with a 0.79-mm wire diameter (0.031 inch), the spring delivers a spring rate of 4.25 N/mm (24.27 lb/inch) through its 25 total coils with an initial tension of 4.964 N (1.116 lb) for predictable extension behavior. The spring supports a maximum load of 33.228 N (7.47 lb) at full extension with a body length of 20.47 mm (0.806 inch). The spring features Inline loop position and Passivate per ASTM A967 finish for optimal performance.

Extension Springs: Standard Series

The Lee Spring Standard Extension Spring Series includes a wide range of size and rate combinations and in both inch and metric sizes. Standard Series springs are available in Music Wire, Type 302 Stainless Steel and Type 316 Stainless Steel. Metric Series springs are available in Music Wire and Type 302 Stainless Steel. The Music Wire springs are provided with a plating finish for light corrosion resistance. The Type 302 Stainless Steel springs are passivated, while Type 316 Stainless Steel springs are passivated and ultrasonically cleaned.

Lee Spring's Stock Extension Springs are supplied with full diameter loops (either to machine or crossover center style) at a random position with the exception of Metric Extension Springs which are specified to meet DIN Standards. Loop openings are approximately one wire diameter and the direction of wind is factory optional.

Standard Extension Series (metric) Extension Springs have useful applications in various industries, including:

  • Medical devices
  • Firearms
  • Pharmaceutical delivery devices
  • Lighting and electrical control
  • Petro-chemical processes
  • Communication devices
  • Aerospace
  • Testing and measurement equipment
  • Marine applications
  • Automotive
  • Locks and security devices
  • Precision Instruments
  • Hardware

...and many more applications

270371

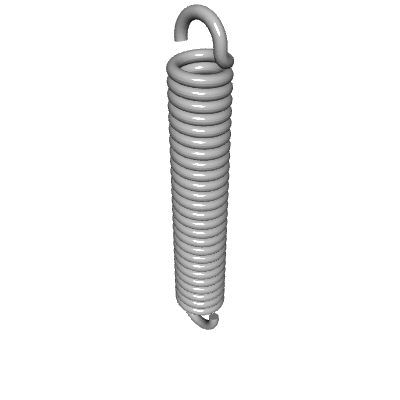

Product Extension OD 0.157 in, Length 0.969 in, Stainless Steel
Product Extension OD 3.99 mm, Length 24.61 mm, Stainless Steel
Part Number LEM080AC 03 S
Series Standard Extension Series (metric)
Outside Diameter (inch) 0.157
Outside Diameter (cm) 0.399
Outside Diameter (mm) 3.99
Wire Diameter (inch) 0.031
Wire Diameter (cm) 0.079
Wire Diameter (mm) 0.79
Max Load (gm) 3388.4
Max Load (lb) 7.47
Max Load (kg) 3.3884
Max Load (N) 33.228
Rate (gm/cm) 4334
Rate (gm/mm) 433.4
Rate (kg/cm) 4.334
Rate (kg/mm) 0.4334
Rate (lb/in) 24.27
Rate (N/cm) 42.5
Rate (N/mm) 4.25
Max Extended Length (cm) 3.127
Max Extended Length (in) 1.231
Max Extended Length (mm) 31.27
Initial Tension (gm) 506.2
Initial Tension (kg) 0.5062
Initial Tension (lb) 1.116
Initial Tension (N) 4.964
Free Length (cm) 2.461
Free Length (inch) 0.969
Free Length (mm) 24.61
Material Stainless Steel
Loop Inside Diameter (cm) 0.241
Loop Inside Diameter (in) 0.095
Loop Inside Diameter (mm) 2.41
Ends Standard Loops
Loop Position Inline
Direction of Wind Factory Option
Finish Passivate per ASTM A967
0.031 0.157 0.006 0.969 0.02 25 1.116 0.223 24.27 2.427 1.231 7.47 0.031 0.806 Inline 0.157 0.006 0.969 0.02 25 1.116 0.223 24.27 2.427 1.231 7.47
