Lee Spring LEM070BA 01 S is a precision extension spring from the Standard Extension Series (metric) series, engineered for applications requiring reliable quality extension springs. This spring features a 5-mm outside diameter (0.197 inch) with 3.58-mm loop inside diameter (0.141 inch) and extends from a free length of 13.49 mm (0.531 inch) to a maximum extended length of 19.76 mm (0.778 inch). Made from Stainless Steel with a 0.69-mm wire diameter (0.027 inch), the spring delivers a spring rate of 2.56 N/mm (14.62 lb/inch) through its 10 total coils with an initial tension of 2.825 N (0.635 lb) for predictable extension behavior. The spring supports a maximum load of 18.816 N (4.23 lb) at full extension with a body length of 7.82 mm (0.308 inch). The spring features Inline loop position and Passivate per ASTM A967 finish for optimal performance.

Extension Springs: Standard Series

The Lee Spring Standard Extension Spring Series includes a wide range of size and rate combinations and in both inch and metric sizes. Standard Series springs are available in Music Wire, Type 302 Stainless Steel and Type 316 Stainless Steel. Metric Series springs are available in Music Wire and Type 302 Stainless Steel. The Music Wire springs are provided with a plating finish for light corrosion resistance. The Type 302 Stainless Steel springs are passivated, while Type 316 Stainless Steel springs are passivated and ultrasonically cleaned.

Lee Spring's Stock Extension Springs are supplied with full diameter loops (either to machine or crossover center style) at a random position with the exception of Metric Extension Springs which are specified to meet DIN Standards. Loop openings are approximately one wire diameter and the direction of wind is factory optional.

Standard Extension Series (metric) Extension Springs have useful applications in various industries, including:

  • Medical devices
  • Firearms
  • Pharmaceutical delivery devices
  • Lighting and electrical control
  • Petro-chemical processes
  • Communication devices
  • Aerospace
  • Testing and measurement equipment
  • Marine applications
  • Automotive
  • Locks and security devices
  • Precision Instruments
  • Hardware

...and many more applications

269711
Product Extension OD 0.197 in, Length 0.531 in, Stainless Steel
Product Extension OD 5 mm, Length 13.49 mm, Stainless Steel
Part Number LEM070BA 01 S
Series Standard Extension Series (metric)
Outside Diameter (inch) 0.197
Outside Diameter (cm) 0.5
Outside Diameter (mm) 5
Wire Diameter (inch) 0.027
Wire Diameter (cm) 0.069
Wire Diameter (mm) 0.69
Max Load (gm) 1918.7
Max Load (lb) 4.23
Max Load (kg) 1.9187
Max Load (N) 18.816
Rate (gm/cm) 2611
Rate (gm/mm) 261.1
Rate (kg/cm) 2.611
Rate (kg/mm) 0.2611
Rate (lb/in) 14.62
Rate (N/cm) 25.6
Rate (N/mm) 2.56
Max Extended Length (cm) 1.976
Max Extended Length (in) 0.778
Max Extended Length (mm) 19.76
Initial Tension (gm) 288
Initial Tension (kg) 0.288
Initial Tension (lb) 0.635
Initial Tension (N) 2.825
Free Length (cm) 1.349
Free Length (inch) 0.531
Free Length (mm) 13.49
Material Stainless Steel
Loop Inside Diameter (cm) 0.358
Loop Inside Diameter (in) 0.141
Loop Inside Diameter (mm) 3.58
Ends Standard Loops
Loop Position Inline
Direction of Wind Factory Option
Finish Passivate per ASTM A967
0.027 0.197 0.008 0.531 0.02 10 0.635 0.127 14.62 1.462 0.778 4.23 0.027 0.308 Inline 0.197 0.008 0.531 0.02 10 0.635 0.127 14.62 1.462 0.778 4.23

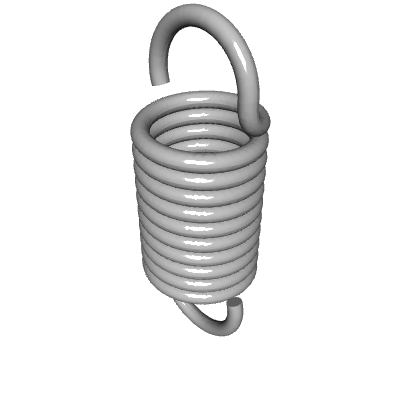

Default View

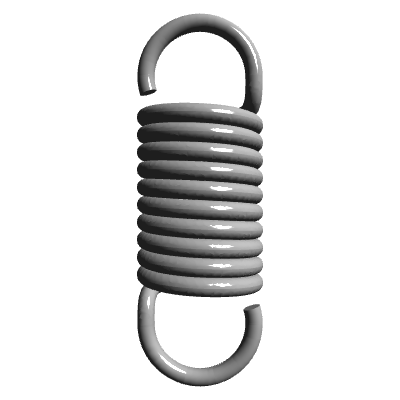

Side view
Top view
Quantity Price
1 - 19 $8.870
20 - 49 $5.370
50 - 99 $2.840
100 - 199 $1.770
200 - 299 $1.679
300 - 399 $1.648
400 - 499 $1.628
500 - 599 $1.612
600 - 699 $1.599
700 - 799 $1.590
800 - 899 $1.578
900 - 999 $1.569
1000 $1.562
