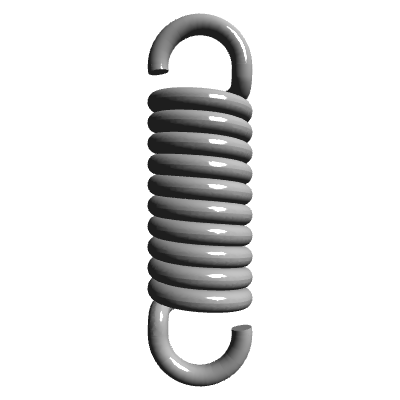

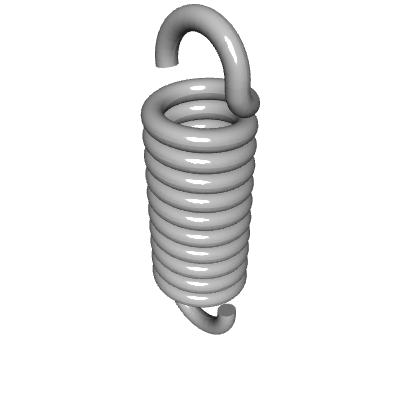

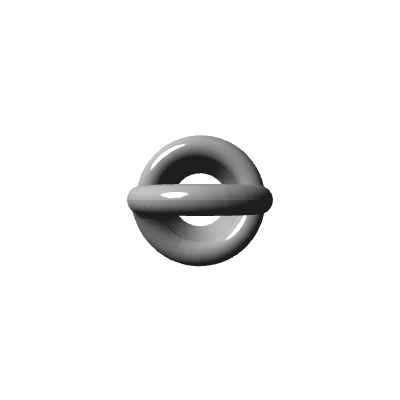

LEM070AB 01 M
Cost
$0.00
$0.00
Price
$0.00
Weight
0.00 lb.
Direction of Wind
Factory Option
Ends
Standard Loops
Finish
Zinc Plate and Bake per ASTM B633
Material
Music Wire
Total Coils
10.000
Published Stock Code
LEM070AB01M
Product Type
Extension Spring
Product Category
Stock
Revision
NR
Rate (N/mm)
11.10
Rate (kg/cm)
11.32
Rate (lb/in)
63.38
Rate (gm/mm)
1131.80
Weight per Item (lb)
0.00
Material Specification
ASTM A228
Free Length (cm)
1.110
Free Length (inch)
0.437
Free Length (mm)
11.100
Free Length - Build Spec (in)
0.44
Free Length Tolerance (cm)
0.05
Free Length Tolerance (in)
0.02
Free Length Tolerance (mm)
0.51
Free Length Tolerance - Build Spec (in)
0.02
Inside Diameter (cm)
0.21
Inside Diameter (in)
0.08
Inside Diameter (mm)
2.13
Outside Diameter (cm)
0.351
Outside Diameter (in)
0.14
Outside Diameter (mm)
3.51
Outside Diameter - Build Spec (in)
0.14
Outside Diameter Tolerance (cm)
0.02
Outside Diameter Tolerance (in)
0.01
Outside Diameter Tolerance (mm)
0.15
Outside Diameter Tolerance - Build Spec (in)
0.01
Rate (gm/cm)
11318.00
Rate (kg/mm)
1.13
Rate (N/cm)
111.00
Rate - Build Spec (lb/in)
63.38
Rate Tolerance (gm/cm)
1131.80
Rate Tolerance (gm/mm)
113.18
Rate Tolerance (kg/cm)
1.13
Rate Tolerance (kg/mm)
0.11
Rate Tolerance (lb/in)
6.34
Rate Tolerance (N/cm)
11.10
Rate Tolerance (N/mm)
1.11
Rate Tolerance - Build Spec (lb/in)
6.34
Total Coils - Build Spec
10.00
Wire Diameter (cm)
0.07
Wire Diameter (inch)
0.03
Wire Diameter (mm)
0.69
Wire Diameter - Build Spec (in)
0.03
Material Short Description
MW
Product Series
Standard Extension Series (metric)
Inside Diameter Tolerance (cm)
Reference
Inside Diameter Tolerance (in)
Reference
Inside Diameter Tolerance (mm)
Reference
Initial Tension - Build Spec. (lb)
1.01
Initial Tension (lb)
1.01
Initial Tension (N)
4.47
Initial Tension (kg)
0.46
Initial Tension (gm)
455.90
Initial Tension Tolerance - Build Spec. (lb)
0.20
Initial Tension Tolerance (lb)
0.20
Initial Tension Tolerance (N)
0.89
Initial Tension Tolerance (kg)
0.09
Initial Tension Tolerance (gm)
91.17
Inside Diameter Tolerance - Build Spec (in)
REF
Max Load - Build Spec. (lb)
6.90
Max Load (lb)
6.90
Max Load (kg)
3.13
Max Load (gm)
3129.80
Max Extended Length - Build Spec. (in)
0.53
Max Extended Length (in)
0.53
Max Extended Length (mm)
13.46
Max Extended Length (cm)
1.35
Body Length - Build Spec. (in)
0.31
Body Length (in)
0.31
Body Length (mm)
7.82
Body Length (cm)
0.78
Loop Inside Diameter - Build Spec. (in)
0.08
Loop Inside Diameter (in)
0.08
Loop Inside Diameter (mm)
2.08
Loop Inside Diameter (cm)
0.21
Loop Position
Inline
Loop Opening - Build Spec. (in)
0.03
Loop Opening (in)
0.03
Loop Opening (mm)
0.69
Loop Opening (cm)
0.07
Max Load (N)
30.69
Inside Diameter - Build Spec (in)
0.08
Model Code
LEM
