LEM063A 02 S
Cost
$0.00
$0.00
Price
$0.00
Weight
0.00 lb.
Direction of Wind
Factory Option
Ends
Standard Loops
Finish
Passivate per ASTM A967
Material
Stainless Steel
Total Coils
16.000
Published Stock Code
LEM063A02S

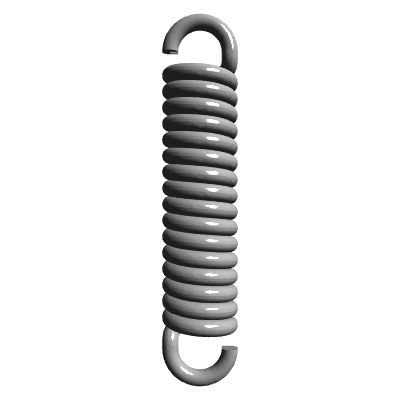

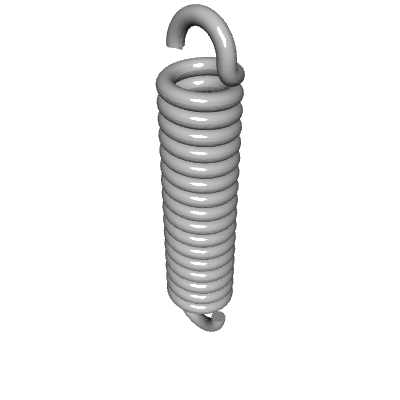

Product Type
Extension Spring
Product Category
Stock
Revision
NR
Rate (N/mm)
6.26
Rate (kg/cm)
6.38
Rate (lb/in)
35.75
Rate (gm/mm)
638.40
Weight per Item (lb)
0.00
Material Specification
ASTM A313
Free Length (cm)
1.349
Free Length (inch)
0.531
Free Length (mm)
13.490
Free Length - Build Spec (in)
0.53
Free Length Tolerance (cm)
0.05
Free Length Tolerance (in)
0.02
Free Length Tolerance (mm)
0.51
Free Length Tolerance - Build Spec (in)
0.02
Inside Diameter (cm)
0.17
Inside Diameter (in)
0.07
Inside Diameter (mm)
1.73
Outside Diameter (cm)
0.300
Outside Diameter (in)
0.12
Outside Diameter (mm)
3.00
Outside Diameter - Build Spec (in)
0.12
Outside Diameter Tolerance (cm)
0.02
Outside Diameter Tolerance (in)
0.01
Outside Diameter Tolerance (mm)
0.15
Outside Diameter Tolerance - Build Spec (in)
0.01
Rate (gm/cm)
6384.00
Rate (kg/mm)
0.64
Rate (N/cm)
62.61
Rate - Build Spec (lb/in)
35.75
Rate Tolerance (gm/cm)
638.40
Rate Tolerance (gm/mm)
63.84
Rate Tolerance (kg/cm)
0.64
Rate Tolerance (kg/mm)
0.06
Rate Tolerance (lb/in)
3.58
Rate Tolerance (N/cm)
6.26
Rate Tolerance (N/mm)
0.63
Rate Tolerance - Build Spec (lb/in)
3.58
Total Coils - Build Spec
16.00
Wire Diameter (cm)
0.06
Wire Diameter (inch)
0.03
Wire Diameter (mm)
0.64
Wire Diameter - Build Spec (in)
0.03
Material Short Description
SS
Product Series
Standard Extension Series (metric)
Inside Diameter Tolerance (cm)
Reference
Inside Diameter Tolerance (in)
Reference
Inside Diameter Tolerance (mm)
Reference
Initial Tension - Build Spec. (lb)
0.79
Initial Tension (lb)
0.79
Initial Tension (N)
3.49
Initial Tension (kg)
0.36
Initial Tension (gm)
356.10
Initial Tension Tolerance - Build Spec. (lb)
0.16
Initial Tension Tolerance (lb)
0.16
Initial Tension Tolerance (N)
0.70
Initial Tension Tolerance (kg)
0.07
Initial Tension Tolerance (gm)
71.22
Inside Diameter Tolerance - Build Spec (in)
REF
Max Load - Build Spec. (lb)
4.91
Max Load (lb)
4.91
Max Load (kg)
2.23
Max Load (gm)
2227.20
Max Extended Length - Build Spec. (in)
0.65
Max Extended Length (in)
0.65
Max Extended Length (mm)
16.46
Max Extended Length (cm)
1.65
Body Length - Build Spec. (in)
0.43
Body Length (in)
0.43
Body Length (mm)
10.80
Body Length (cm)
1.08
Loop Inside Diameter - Build Spec. (in)
0.07
Loop Inside Diameter (in)
0.07
Loop Inside Diameter (mm)
1.73
Loop Inside Diameter (cm)
0.17
Loop Position
Inline
Loop Opening - Build Spec. (in)
0.03
Loop Opening (in)
0.03
Loop Opening (mm)
0.64
Loop Opening (cm)
0.06
Max Load (N)
21.84
Inside Diameter - Build Spec (in)
0.07
Model Code
LEM
