Model Code
LHL

HEFTY™ Die Spring Compression Springs

Heavy Duty Compression Springs

Lee Spring LHL 750D 14 is a heavy-duty die compression spring from the HEFTY™ Die Spring series, specifically engineered for demanding industrial applications requiring durabiliy and substantial load capacity. This spring features an 0.73-inch outside diameter (18.54 mm) with a 0.75-inch hole diameter (19.05 mm) and extends to a free length of 7 inch (177.8 mm), making it ideal for stamping and die applications. Made from Oil Tempered Chrome Silicon with a 0.156-inch wire diameter (3.96 mm), the spring delivers a spring rate of 162 lb/inch (28.372 N/mm) through its 27.79 active coils out of 29.79 total coils, with Factory Option wind for predictable deflection behavior. The spring compresses to a solid height of 4.84 inch (122.94 mm) while supporting a maximum load of 381.2 lb (1695.66 N) at full compression. The spring has Squared and Ground ends and a Orange Powder Coat finish for optimal die spring performance.

About the HEFTY™ Die Spring Series

HEFTY™ Die Springs offer you the economy of round wire and the durability of chrome silicon or music wire ideally suited for any high stress, heavy load application. Great for many applications such as clutches, brakes, farm machinery and aircraft mechanisms. Available in five different types with different load ratings to fit standard diameters.

HEFTY™ Die Spring Compression Springs have useful applications in various industries, including:

  • Medical devices
  • Firearms
  • Pharmaceutical delivery devices
  • Lighting and electrical control
  • Petro-chemical processes
  • Communication devices
  • Aerospace
  • Testing and measurement equipment
  • Marine applications
  • Automotive
  • Locks and security devices
  • Precision Instruments
  • Hardware

...and many more applications

413821
Product Compression OD 0.73 in, Length 7 in, Oil Tempered Chrome Silicon
Product Compression OD 18.54 mm, Length 177.8 mm, Oil Tempered Chrome Silicon
Part Number LHL 750D 14
Series HEFTY™ Die Spring
Outside Diameter (inch) 0.73
Outside Diameter (cm) 1.854
Outside Diameter (mm) 18.54
Hole Diameter (inch) 0.75
Hole Diameter (cm) 1.905
Hole Diameter (mm) 19.05
Rod Diameter (inch) 0.375
Rod Diameter (cm) 0.953
Rod Diameter (mm) 9.53
Free Length (inch) 7
Free Length (cm) 17.78
Free Length (mm) 177.8
Rate (gm/mm) 2893
Rate (kg/cm) 28.93
Rate (kg/mm) 2.893
Rate (lb/inch) 162
Rate (gm/cm) 28930
Rate (N/cm) 283.72
Rate (N/mm) 28.372
Solid Height (inch) 4.84
Solid Height (cm) 12.294
Solid Height (mm) 122.94
Wire Diameter (inch) 0.156
Wire Diameter (cm) 0.396
Wire Diameter (mm) 3.96
Material Oil Tempered Chrome Silicon
Load at Solid Height (gm) 172912
Load at Solid Height (kg) 172.912
Load at Solid Height (lb) 381.2
Load at Solid Height (N) 1695.66
Ends Squared and Ground
Active Coils 27.79
Direction of Wind Factory Option
Finish Orange Powder Coat
Total Coils 29.79
0.156 0.73 0.001 0.001 0.75 0.375 7 0.19 29.79 162 16.2 4.84 381.2 0.156 7 0.73 3.96 18.54 0.04 19.05 9.53 177.8 4.826 28.372 122.94 1695.66

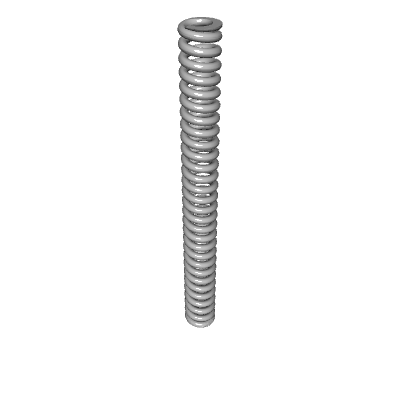

Default View

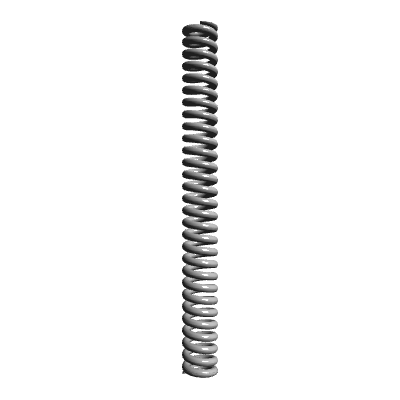

Side view
Top view
Quantity Price
1 - 24 $13.410
25 - 49 $12.430
50 - 99 $11.430
100 - 199 $10.670
200 - 299 $8.807
300 - 399 $8.044
400 - 499 $7.377
500 - 599 $6.805
600 - 699 $6.326
700 - 799 $5.950
800 - 899 $5.662
900 - 999 $5.477
1000 $5.374
