HEFTY™ Die Spring Compression Springs

Heavy Duty Compression Springs

Lee Spring LHL 750D 10 is a heavy-duty die compression spring from the HEFTY™ Die Spring series, specifically engineered for demanding industrial applications requiring durabiliy and substantial load capacity. This spring features an 0.73-inch outside diameter (18.54 mm) with a 0.75-inch hole diameter (19.05 mm) and extends to a free length of 4.5 inch (114.3 mm), making it ideal for stamping and die applications. Made from Oil Tempered Chrome Silicon with a 0.156-inch wire diameter (3.96 mm), the spring delivers a spring rate of 250 lb/inch (43.783 N/mm) through its 18.01 active coils out of 20.01 total coils, with Factory Option wind for predictable deflection behavior. The spring compresses to a solid height of 3.14 inch (79.76 mm) while supporting a maximum load of 340 lb (1512.4 N) at full compression. The spring has Squared and Ground ends and a Orange Powder Coat finish for optimal die spring performance.

About the HEFTY™ Die Spring Series

HEFTY™ Die Springs offer you the economy of round wire and the durability of chrome silicon or music wire ideally suited for any high stress, heavy load application. Great for many applications such as clutches, brakes, farm machinery and aircraft mechanisms. Available in five different types with different load ratings to fit standard diameters.

HEFTY™ Die Spring Compression Springs have useful applications in various industries, including:

  • Medical devices
  • Firearms
  • Pharmaceutical delivery devices
  • Lighting and electrical control
  • Petro-chemical processes
  • Communication devices
  • Aerospace
  • Testing and measurement equipment
  • Marine applications
  • Automotive
  • Locks and security devices
  • Precision Instruments
  • Hardware

...and many more applications

413781
Product Compression OD 0.73 in, Length 4.5 in, Oil Tempered Chrome Silicon
Product Compression OD 18.54 mm, Length 114.3 mm, Oil Tempered Chrome Silicon
Part Number LHL 750D 10
Series HEFTY™ Die Spring
Outside Diameter (inch) 0.73
Outside Diameter (cm) 1.854
Outside Diameter (mm) 18.54
Hole Diameter (inch) 0.75
Hole Diameter (cm) 1.905
Hole Diameter (mm) 19.05
Rod Diameter (inch) 0.375
Rod Diameter (cm) 0.953
Rod Diameter (mm) 9.53
Free Length (inch) 4.5
Free Length (cm) 11.43
Free Length (mm) 114.3
Rate (gm/mm) 4464.5
Rate (kg/cm) 44.645
Rate (kg/mm) 4.4645
Rate (lb/inch) 250
Rate (gm/cm) 44645
Rate (N/cm) 437.83
Rate (N/mm) 43.783
Solid Height (inch) 3.14
Solid Height (cm) 7.976
Solid Height (mm) 79.76
Wire Diameter (inch) 0.156
Wire Diameter (cm) 0.396
Wire Diameter (mm) 3.96
Material Oil Tempered Chrome Silicon
Load at Solid Height (gm) 154224
Load at Solid Height (kg) 154.224
Load at Solid Height (lb) 340
Load at Solid Height (N) 1512.4
Ends Squared and Ground
Active Coils 18.01
Direction of Wind Factory Option
Finish Orange Powder Coat
Total Coils 20.01
0.156 0.73 0.001 0.001 0.75 0.375 4.5 0.156 20.01 250 25 3.14 340 0.156 4.5 0.73 3.96 18.54 0.04 19.05 9.53 114.3 3.962 43.783 79.76 1512.4

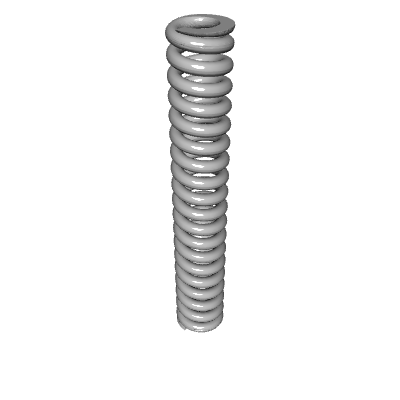

Default View
Side view

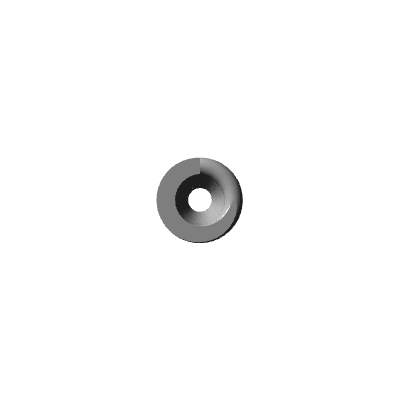

Top view
