HEFTY™ Die Spring Compression Springs

Heavy Duty Compression Springs

Lee Spring LHL 750C 11 is a heavy-duty die compression spring from the HEFTY™ Die Spring series, specifically engineered for demanding industrial applications requiring durabiliy and substantial load capacity. This spring features an 0.725-inch outside diameter (18.42 mm) with a 0.75-inch hole diameter (19.05 mm) and extends to a free length of 5 inch (127 mm), making it ideal for stamping and die applications. Made from Oil Tempered Chrome Silicon with a 0.148-inch wire diameter (3.76 mm), the spring delivers a spring rate of 176 lb/inch (30.823 N/mm) through its 20.4 active coils out of 22.4 total coils, with Factory Option wind for predictable deflection behavior. The spring compresses to a solid height of 3.33 inch (84.58 mm) while supporting a maximum load of 293.9 lb (1307.33 N) at full compression. The spring has Squared and Ground ends and a Black Powder Coat finish for optimal die spring performance.

About the HEFTY™ Die Spring Series

HEFTY™ Die Springs offer you the economy of round wire and the durability of chrome silicon or music wire ideally suited for any high stress, heavy load application. Great for many applications such as clutches, brakes, farm machinery and aircraft mechanisms. Available in five different types with different load ratings to fit standard diameters.

HEFTY™ Die Spring Compression Springs have useful applications in various industries, including:

  • Medical devices
  • Firearms
  • Pharmaceutical delivery devices
  • Lighting and electrical control
  • Petro-chemical processes
  • Communication devices
  • Aerospace
  • Testing and measurement equipment
  • Marine applications
  • Automotive
  • Locks and security devices
  • Precision Instruments
  • Hardware

...and many more applications

413631
Product Compression OD 0.725 in, Length 5 in, Oil Tempered Chrome Silicon
Product Compression OD 18.42 mm, Length 127 mm, Oil Tempered Chrome Silicon
Part Number LHL 750C 11
Series HEFTY™ Die Spring
Outside Diameter (inch) 0.725
Outside Diameter (cm) 1.842
Outside Diameter (mm) 18.42
Hole Diameter (inch) 0.75
Hole Diameter (cm) 1.905
Hole Diameter (mm) 19.05
Rod Diameter (inch) 0.375
Rod Diameter (cm) 0.953
Rod Diameter (mm) 9.53
Free Length (inch) 5
Free Length (cm) 12.7
Free Length (mm) 127
Rate (gm/mm) 3143.01
Rate (kg/cm) 31.43
Rate (kg/mm) 3.143
Rate (lb/inch) 176
Rate (gm/cm) 31430.1
Rate (N/cm) 308.23
Rate (N/mm) 30.823
Solid Height (inch) 3.33
Solid Height (cm) 8.458
Solid Height (mm) 84.58
Wire Diameter (inch) 0.148
Wire Diameter (cm) 0.376
Wire Diameter (mm) 3.76
Material Oil Tempered Chrome Silicon
Load at Solid Height (gm) 133313
Load at Solid Height (kg) 133.313
Load at Solid Height (lb) 293.9
Load at Solid Height (N) 1307.33
Ends Squared and Ground
Active Coils 20.4
Direction of Wind Factory Option
Finish Black Powder Coat
Total Coils 22.4
0.148 0.725 0.001 0.001 0.75 0.375 5 0.175 22.4 176 17.6 3.33 293.9 0.148 5 0.725 3.76 18.42 0.04 19.05 9.53 127 4.445 30.823 84.58 1307.33

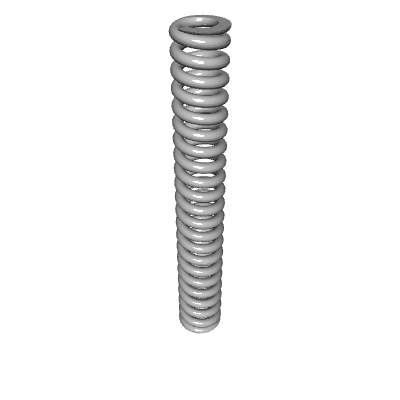

Default View
