Model Code
LHL

HEFTY™ Die Spring Compression Springs

Heavy Duty Compression Springs

Lee Spring LHL 750C 06 is a heavy-duty die compression spring from the HEFTY™ Die Spring series, specifically engineered for demanding industrial applications requiring durabiliy and substantial load capacity. This spring features an 0.71-inch outside diameter (18.03 mm) with a 0.75-inch hole diameter (19.05 mm) and extends to a free length of 2.5 inch (63.5 mm), making it ideal for stamping and die applications. Made from Oil Tempered Chrome Silicon with a 0.142-inch wire diameter (3.61 mm), the spring delivers a spring rate of 330 lb/inch (57.794 N/mm) through its 9.67 active coils out of 11.67 total coils, with Factory Option wind for predictable deflection behavior. The spring compresses to a solid height of 1.67 inch (42.42 mm) while supporting a maximum load of 273.9 lb (1218.37 N) at full compression. The spring has Squared and Ground ends and a Black Powder Coat finish for optimal die spring performance.

About the HEFTY™ Die Spring Series

HEFTY™ Die Springs offer you the economy of round wire and the durability of chrome silicon or music wire ideally suited for any high stress, heavy load application. Great for many applications such as clutches, brakes, farm machinery and aircraft mechanisms. Available in five different types with different load ratings to fit standard diameters.

HEFTY™ Die Spring Compression Springs have useful applications in various industries, including:

  • Medical devices
  • Firearms
  • Pharmaceutical delivery devices
  • Lighting and electrical control
  • Petro-chemical processes
  • Communication devices
  • Aerospace
  • Testing and measurement equipment
  • Marine applications
  • Automotive
  • Locks and security devices
  • Precision Instruments
  • Hardware

...and many more applications

413581
Product Compression OD 0.71 in, Length 2.5 in, Oil Tempered Chrome Silicon
Product Compression OD 18.03 mm, Length 63.5 mm, Oil Tempered Chrome Silicon
Part Number LHL 750C 06
Series HEFTY™ Die Spring
Outside Diameter (inch) 0.71
Outside Diameter (cm) 1.803
Outside Diameter (mm) 18.03
Hole Diameter (inch) 0.75
Hole Diameter (cm) 1.905
Hole Diameter (mm) 19.05
Rod Diameter (inch) 0.375
Rod Diameter (cm) 0.953
Rod Diameter (mm) 9.53
Free Length (inch) 2.5
Free Length (cm) 6.35
Free Length (mm) 63.5
Rate (gm/mm) 5893.14
Rate (kg/cm) 58.931
Rate (kg/mm) 5.8931
Rate (lb/inch) 330
Rate (gm/cm) 58931.4
Rate (N/cm) 577.94
Rate (N/mm) 57.794
Solid Height (inch) 1.67
Solid Height (cm) 4.242
Solid Height (mm) 42.42
Wire Diameter (inch) 0.142
Wire Diameter (cm) 0.361
Wire Diameter (mm) 3.61
Material Oil Tempered Chrome Silicon
Load at Solid Height (gm) 124241
Load at Solid Height (kg) 124.241
Load at Solid Height (lb) 273.9
Load at Solid Height (N) 1218.37
Ends Squared and Ground
Active Coils 9.67
Direction of Wind Factory Option
Finish Black Powder Coat
Total Coils 11.67
0.142 0.71 0.001 0.001 0.75 0.375 2.5 0.088 11.67 330 33 1.67 273.9 0.142 2.5 0.71 3.61 18.03 0.04 19.05 9.53 63.5 2.235 57.794 42.42 1218.37

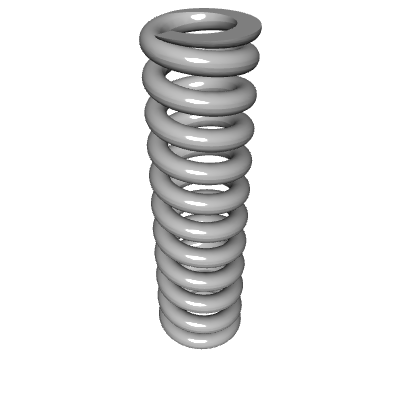

Default View

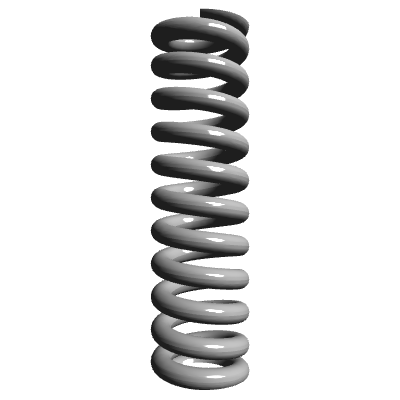

Side view
Top view
Quantity Price
1 - 24 $7.040
25 - 49 $6.190
50 - 99 $5.360
100 - 199 $4.590
200 - 299 $3.756
300 - 399 $3.433
400 - 499 $3.146
500 - 599 $2.904
600 - 699 $2.697
700 - 799 $2.539
800 - 899 $2.417
900 - 999 $2.334
1000 $2.293
