Model Code
LHL

HEFTY™ Die Spring Compression Springs

Heavy Duty Compression Springs

Lee Spring LHL 750B 15 is a heavy-duty die compression spring from the HEFTY™ Die Spring series, specifically engineered for demanding industrial applications requiring durabiliy and substantial load capacity. This spring features an 0.68-inch outside diameter (17.27 mm) with a 0.75-inch hole diameter (19.05 mm) and extends to a free length of 8 inch (203.2 mm), making it ideal for stamping and die applications. Made from Oil Tempered Chrome Silicon with a 0.125-inch wire diameter (3.18 mm), the spring delivers a spring rate of 61 lb/inch (10.683 N/mm) through its 33.65 active coils out of 35.65 total coils, with Factory Option wind for predictable deflection behavior. The spring compresses to a solid height of 4.7 inch (119.38 mm) while supporting a maximum load of 216.137 lb (961.43 N) at full compression. The spring has Squared and Ground ends and a Purple Powder Coat finish for optimal die spring performance.

About the HEFTY™ Die Spring Series

HEFTY™ Die Springs offer you the economy of round wire and the durability of chrome silicon or music wire ideally suited for any high stress, heavy load application. Great for many applications such as clutches, brakes, farm machinery and aircraft mechanisms. Available in five different types with different load ratings to fit standard diameters.

HEFTY™ Die Spring Compression Springs have useful applications in various industries, including:

  • Medical devices
  • Firearms
  • Pharmaceutical delivery devices
  • Lighting and electrical control
  • Petro-chemical processes
  • Communication devices
  • Aerospace
  • Testing and measurement equipment
  • Marine applications
  • Automotive
  • Locks and security devices
  • Precision Instruments
  • Hardware

...and many more applications

413521
Product Compression OD 0.68 in, Length 8 in, Oil Tempered Chrome Silicon
Product Compression OD 17.27 mm, Length 203.2 mm, Oil Tempered Chrome Silicon
Part Number LHL 750B 15
Series HEFTY™ Die Spring
Outside Diameter (inch) 0.68
Outside Diameter (cm) 1.727
Outside Diameter (mm) 17.27
Hole Diameter (inch) 0.75
Hole Diameter (cm) 1.905
Hole Diameter (mm) 19.05
Rod Diameter (inch) 0.375
Rod Diameter (cm) 0.953
Rod Diameter (mm) 9.53
Free Length (inch) 8
Free Length (cm) 20.32
Free Length (mm) 203.2
Rate (gm/mm) 1089.34
Rate (kg/cm) 10.893
Rate (kg/mm) 1.0893
Rate (lb/inch) 61
Rate (gm/cm) 10893.4
Rate (N/cm) 106.83
Rate (N/mm) 10.683
Solid Height (inch) 4.7
Solid Height (cm) 11.938
Solid Height (mm) 119.38
Wire Diameter (inch) 0.125
Wire Diameter (cm) 0.318
Wire Diameter (mm) 3.18
Material Oil Tempered Chrome Silicon
Load at Solid Height (gm) 98039.7
Load at Solid Height (kg) 98.04
Load at Solid Height (lb) 216.137
Load at Solid Height (N) 961.43
Ends Squared and Ground
Active Coils 33.65
Direction of Wind Factory Option
Finish Purple Powder Coat
Total Coils 35.65
0.125 0.68 0.001 0.001 0.75 0.375 8 0.205 35.65 61 6.1 4.7 216.137 0.125 8 0.68 3.18 17.27 0.04 19.05 9.53 203.2 5.207 10.683 119.38 961.43

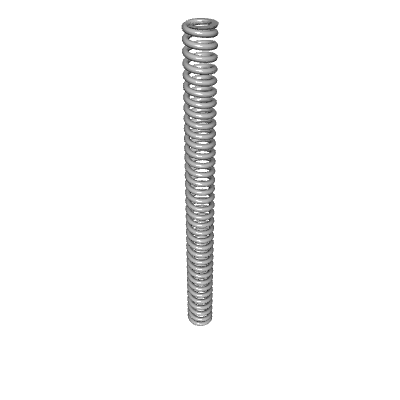

Default View

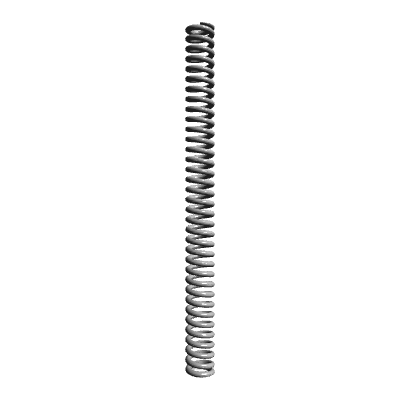

Side view
Top view
Quantity Price
1 - 24 $12.600
25 - 49 $11.400
50 - 99 $9.880
100 - 199 $9.020
200 - 299 $7.442
300 - 399 $6.800
400 - 499 $6.243
500 - 599 $5.758
600 - 699 $5.358
700 - 799 $5.037
800 - 899 $4.789
900 - 999 $4.631
1000 $4.552
