Model Code
LHL

HEFTY™ Die Spring Compression Springs

Heavy Duty Compression Springs

Lee Spring LHL 750B 10 is a heavy-duty die compression spring from the HEFTY™ Die Spring series, specifically engineered for demanding industrial applications requiring durabiliy and substantial load capacity. This spring features an 0.665-inch outside diameter (16.89 mm) with a 0.75-inch hole diameter (19.05 mm) and extends to a free length of 4.5 inch (114.3 mm), making it ideal for stamping and die applications. Made from Oil Tempered Chrome Silicon with a 0.125-inch wire diameter (3.18 mm), the spring delivers a spring rate of 112 lb/inch (19.615 N/mm) through its 19.9 active coils out of 21.9 total coils, with Factory Option wind for predictable deflection behavior. The spring compresses to a solid height of 2.75 inch (69.85 mm) while supporting a maximum load of 196 lb (871.85 N) at full compression. The spring has Squared and Ground ends and a Purple Powder Coat finish for optimal die spring performance.

About the HEFTY™ Die Spring Series

HEFTY™ Die Springs offer you the economy of round wire and the durability of chrome silicon or music wire ideally suited for any high stress, heavy load application. Great for many applications such as clutches, brakes, farm machinery and aircraft mechanisms. Available in five different types with different load ratings to fit standard diameters.

HEFTY™ Die Spring Compression Springs have useful applications in various industries, including:

  • Medical devices
  • Firearms
  • Pharmaceutical delivery devices
  • Lighting and electrical control
  • Petro-chemical processes
  • Communication devices
  • Aerospace
  • Testing and measurement equipment
  • Marine applications
  • Automotive
  • Locks and security devices
  • Precision Instruments
  • Hardware

...and many more applications

413471
Product Compression OD 0.665 in, Length 4.5 in, Oil Tempered Chrome Silicon
Product Compression OD 16.89 mm, Length 114.3 mm, Oil Tempered Chrome Silicon
Part Number LHL 750B 10
Series HEFTY™ Die Spring
Outside Diameter (inch) 0.665
Outside Diameter (cm) 1.689
Outside Diameter (mm) 16.89
Hole Diameter (inch) 0.75
Hole Diameter (cm) 1.905
Hole Diameter (mm) 19.05
Rod Diameter (inch) 0.375
Rod Diameter (cm) 0.953
Rod Diameter (mm) 9.53
Free Length (inch) 4.5
Free Length (cm) 11.43
Free Length (mm) 114.3
Rate (gm/mm) 2000.1
Rate (kg/cm) 20.001
Rate (kg/mm) 2.0001
Rate (lb/inch) 112
Rate (gm/cm) 20001
Rate (N/cm) 196.15
Rate (N/mm) 19.615
Solid Height (inch) 2.75
Solid Height (cm) 6.985
Solid Height (mm) 69.85
Wire Diameter (inch) 0.125
Wire Diameter (cm) 0.318
Wire Diameter (mm) 3.18
Material Oil Tempered Chrome Silicon
Load at Solid Height (gm) 88905.6
Load at Solid Height (kg) 88.906
Load at Solid Height (lb) 196
Load at Solid Height (N) 871.85
Ends Squared and Ground
Active Coils 19.9
Direction of Wind Factory Option
Finish Purple Powder Coat
Total Coils 21.9
0.125 0.665 0.001 0.001 0.75 0.375 4.5 0.156 21.9 112 11.2 2.75 196 0.125 4.5 0.665 3.18 16.89 0.04 19.05 9.53 114.3 3.962 19.615 69.85 871.85

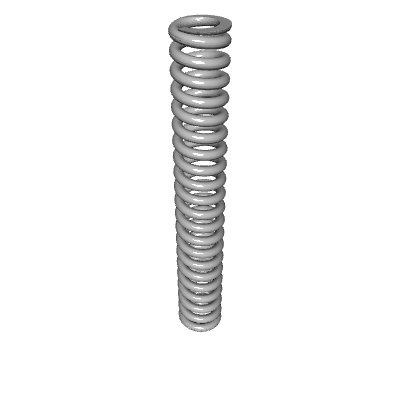

Default View
