Model Code
LHL

HEFTY™ Die Spring Compression Springs

Heavy Duty Compression Springs

Lee Spring LHL 750AB 12 is a heavy-duty die compression spring from the HEFTY™ Die Spring series, specifically engineered for demanding industrial applications requiring durabiliy and substantial load capacity. This spring features an 0.67-inch outside diameter (17.02 mm) with a 0.75-inch hole diameter (19.05 mm) and extends to a free length of 5.5 inch (139.7 mm), making it ideal for stamping and die applications. Made from Music Wire with a 0.118-inch wire diameter (3 mm), the spring delivers a spring rate of 61 lb/inch (10.683 N/mm) through its 27.16 active coils out of 29.16 total coils, with Factory Option wind for predictable deflection behavior. The spring compresses to a solid height of 3.52 inch (89.41 mm) while supporting a maximum load of 120.8 lb (537.35 N) at full compression. The spring has Squared and Ground ends and a Beige Powder Coat finish for optimal die spring performance.

About the HEFTY™ Die Spring Series

HEFTY™ Die Springs offer you the economy of round wire and the durability of chrome silicon or music wire ideally suited for any high stress, heavy load application. Great for many applications such as clutches, brakes, farm machinery and aircraft mechanisms. Available in five different types with different load ratings to fit standard diameters.

HEFTY™ Die Spring Compression Springs have useful applications in various industries, including:

  • Medical devices
  • Firearms
  • Pharmaceutical delivery devices
  • Lighting and electrical control
  • Petro-chemical processes
  • Communication devices
  • Aerospace
  • Testing and measurement equipment
  • Marine applications
  • Automotive
  • Locks and security devices
  • Precision Instruments
  • Hardware

...and many more applications

413361
Product Compression OD 0.67 in, Length 5.5 in, Music Wire
Product Compression OD 17.02 mm, Length 139.7 mm, Music Wire
Part Number LHL 750AB 12
Series HEFTY™ Die Spring
Outside Diameter (inch) 0.67
Outside Diameter (cm) 1.702
Outside Diameter (mm) 17.02
Hole Diameter (inch) 0.75
Hole Diameter (cm) 1.905
Hole Diameter (mm) 19.05
Rod Diameter (inch) 0.375
Rod Diameter (cm) 0.953
Rod Diameter (mm) 9.53
Free Length (inch) 5.5
Free Length (cm) 13.97
Free Length (mm) 139.7
Rate (gm/mm) 1089.34
Rate (kg/cm) 10.893
Rate (kg/mm) 1.0893
Rate (lb/inch) 61
Rate (gm/cm) 10893.4
Rate (N/cm) 106.83
Rate (N/mm) 10.683
Solid Height (inch) 3.52
Solid Height (cm) 8.941
Solid Height (mm) 89.41
Wire Diameter (inch) 0.118
Wire Diameter (cm) 0.3
Wire Diameter (mm) 3
Material Music Wire
Load at Solid Height (gm) 54794.9
Load at Solid Height (kg) 54.795
Load at Solid Height (lb) 120.8
Load at Solid Height (N) 537.35
Ends Squared and Ground
Active Coils 27.16
Direction of Wind Factory Option
Finish Beige Powder Coat
Total Coils 29.16
0.118 0.67 0.001 0.001 0.75 0.375 5.5 0.175 29.16 61 6.1 3.52 120.8 0.118 5.5 0.67 3 17.02 0.04 19.05 9.53 139.7 4.445 10.683 89.41 537.35

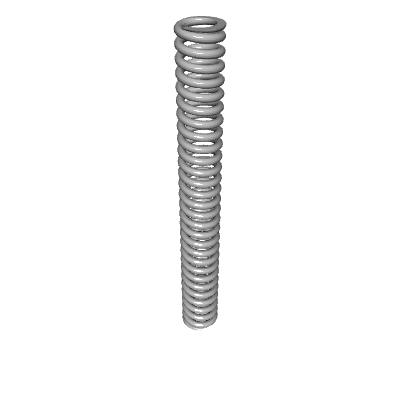

Default View
