Model Code
LHL

HEFTY™ Die Spring Compression Springs

Heavy Duty Compression Springs

Lee Spring LHL 750AB 01 is a heavy-duty die compression spring from the HEFTY™ Die Spring series, specifically engineered for demanding industrial applications requiring durabiliy and substantial load capacity. This spring features an 0.725-inch outside diameter (18.42 mm) with a 0.75-inch hole diameter (19.05 mm) and extends to a free length of 1 inch (25.4 mm), making it ideal for stamping and die applications. Made from Music Wire with a 0.112-inch wire diameter (2.84 mm), the spring delivers a spring rate of 273 lb/inch (47.811 N/mm) through its 3.6 active coils out of 5.6 total coils, with Factory Option wind for predictable deflection behavior. The spring compresses to a solid height of 0.65 inch (16.51 mm) while supporting a maximum load of 95.6 lb (425.25 N) at full compression. The spring has Squared and Ground ends and a Beige Powder Coat finish for optimal die spring performance.

About the HEFTY™ Die Spring Series

HEFTY™ Die Springs offer you the economy of round wire and the durability of chrome silicon or music wire ideally suited for any high stress, heavy load application. Great for many applications such as clutches, brakes, farm machinery and aircraft mechanisms. Available in five different types with different load ratings to fit standard diameters.

HEFTY™ Die Spring Compression Springs have useful applications in various industries, including:

  • Medical devices
  • Firearms
  • Pharmaceutical delivery devices
  • Lighting and electrical control
  • Petro-chemical processes
  • Communication devices
  • Aerospace
  • Testing and measurement equipment
  • Marine applications
  • Automotive
  • Locks and security devices
  • Precision Instruments
  • Hardware

...and many more applications

413251
Product Compression OD 0.725 in, Length 1 in, Music Wire
Product Compression OD 18.42 mm, Length 25.4 mm, Music Wire
Part Number LHL 750AB 01
Series HEFTY™ Die Spring
Outside Diameter (inch) 0.725
Outside Diameter (cm) 1.842
Outside Diameter (mm) 18.42
Hole Diameter (inch) 0.75
Hole Diameter (cm) 1.905
Hole Diameter (mm) 19.05
Rod Diameter (inch) 0.375
Rod Diameter (cm) 0.953
Rod Diameter (mm) 9.53
Free Length (inch) 1
Free Length (cm) 2.54
Free Length (mm) 25.4
Rate (gm/mm) 4875.23
Rate (kg/cm) 48.752
Rate (kg/mm) 4.8752
Rate (lb/inch) 273
Rate (gm/cm) 48752.3
Rate (N/cm) 478.11
Rate (N/mm) 47.811
Solid Height (inch) 0.65
Solid Height (cm) 1.651
Solid Height (mm) 16.51
Wire Diameter (inch) 0.112
Wire Diameter (cm) 0.284
Wire Diameter (mm) 2.84
Material Music Wire
Load at Solid Height (gm) 43364.2
Load at Solid Height (kg) 43.364
Load at Solid Height (lb) 95.6
Load at Solid Height (N) 425.25
Ends Squared and Ground
Active Coils 3.6
Direction of Wind Factory Option
Finish Beige Powder Coat
Total Coils 5.6
0.112 0.725 0.001 0.001 0.75 0.375 1 0.033 5.6 273 27.3 0.65 95.6 0.112 1 0.725 2.84 18.42 0.04 19.05 9.53 25.4 0.838 47.811 16.51 425.25

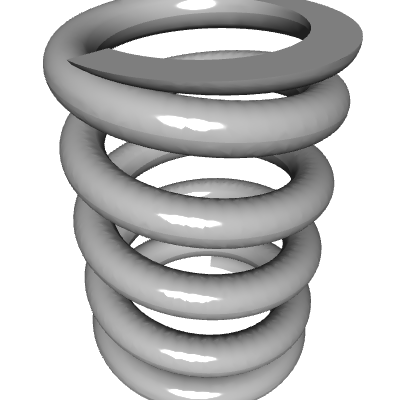

Default View

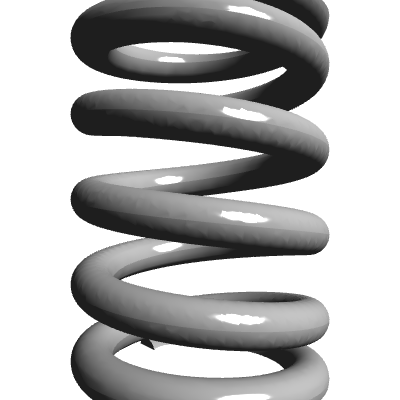

Side view

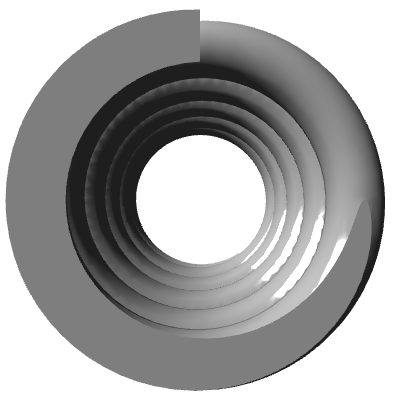

Top view
Quantity Price
1 - 24 $5.730
25 - 49 $4.800
50 - 99 $4.000
100 - 199 $3.170
200 - 299 $2.403
300 - 399 $2.195
400 - 499 $2.014
500 - 599 $1.859
600 - 699 $1.727
700 - 799 $1.623
800 - 899 $1.547
900 - 999 $1.493
1000 $1.468
