HEFTY™ Die Spring Compression Springs

Heavy Duty Compression Springs

Lee Spring LHL 625D 11 is a heavy-duty die compression spring from the HEFTY™ Die Spring series, specifically engineered for demanding industrial applications requiring durabiliy and substantial load capacity. This spring features an 0.6-inch outside diameter (15.24 mm) with a 0.625-inch hole diameter (15.88 mm) and extends to a free length of 7 inch (177.8 mm), making it ideal for stamping and die applications. Made from Music Wire with a 0.12-inch wire diameter (3.05 mm), the spring delivers a spring rate of 80 lb/inch (14.011 N/mm) through its 33.69 active coils out of 35.69 total coils, with Factory Option wind for predictable deflection behavior. The spring compresses to a solid height of 4.64 inch (117.86 mm) while supporting a maximum load of 217.363 lb (966.88 N) at full compression. The spring has Squared and Ground ends and a Orange Powder Coat finish for optimal die spring performance.

About the HEFTY™ Die Spring Series

HEFTY™ Die Springs offer you the economy of round wire and the durability of chrome silicon or music wire ideally suited for any high stress, heavy load application. Great for many applications such as clutches, brakes, farm machinery and aircraft mechanisms. Available in five different types with different load ratings to fit standard diameters.

HEFTY™ Die Spring Compression Springs have useful applications in various industries, including:

  • Medical devices
  • Firearms
  • Pharmaceutical delivery devices
  • Lighting and electrical control
  • Petro-chemical processes
  • Communication devices
  • Aerospace
  • Testing and measurement equipment
  • Marine applications
  • Automotive
  • Locks and security devices
  • Precision Instruments
  • Hardware

...and many more applications

417051
Product Compression OD 0.6 in, Length 7 in, Music Wire
Product Compression OD 15.24 mm, Length 177.8 mm, Music Wire
Part Number LHL 625D 11
Series HEFTY™ Die Spring
Outside Diameter (inch) 0.6
Outside Diameter (cm) 1.524
Outside Diameter (mm) 15.24
Hole Diameter (inch) 0.625
Hole Diameter (cm) 1.588
Hole Diameter (mm) 15.88
Rod Diameter (inch) 0.344
Rod Diameter (cm) 0.874
Rod Diameter (mm) 8.74
Free Length (inch) 7
Free Length (cm) 17.78
Free Length (mm) 177.8
Rate (gm/mm) 1428.64
Rate (kg/cm) 14.286
Rate (kg/mm) 1.4286
Rate (lb/inch) 80
Rate (gm/cm) 14286.4
Rate (N/cm) 140.11
Rate (N/mm) 14.011
Solid Height (inch) 4.64
Solid Height (cm) 11.786
Solid Height (mm) 117.86
Wire Diameter (inch) 0.12
Wire Diameter (cm) 0.305
Wire Diameter (mm) 3.05
Material Music Wire
Load at Solid Height (gm) 98595.9
Load at Solid Height (kg) 98.596
Load at Solid Height (lb) 217.363
Load at Solid Height (N) 966.88
Ends Squared and Ground
Active Coils 33.69
Direction of Wind Factory Option
Finish Orange Powder Coat
Total Coils 35.69
0.12 0.6 0.001 0.001 0.625 0.344 7 0.19 35.69 80 8 4.64 217.363 0.12 7 0.6 3.05 15.24 0.04 15.88 8.74 177.8 4.826 14.011 117.86 966.88

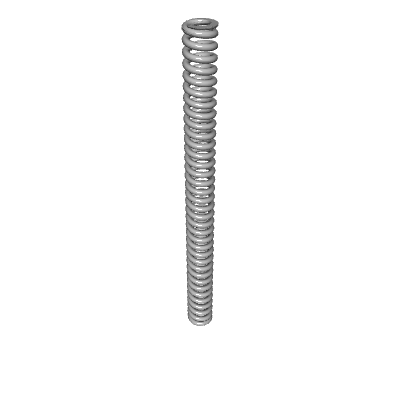

Default View

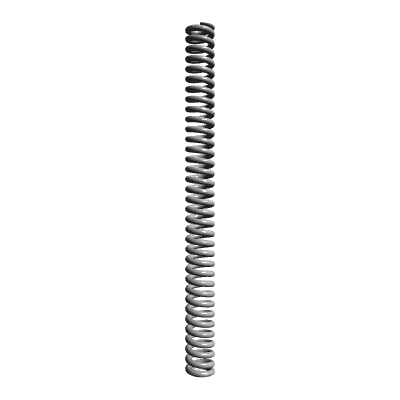

Side view
Top view
Quantity Price
1 - 24 $10.040
25 - 49 $8.580
50 - 99 $7.950
100 - 199 $6.950
200 - 299 $5.732
300 - 399 $5.233
400 - 499 $4.801
500 - 599 $4.428
600 - 699 $4.117
700 - 799 $3.867
800 - 899 $3.684
900 - 999 $3.561
1000 $3.498
