Model Code
LHL

HEFTY™ Die Spring Compression Springs

Heavy Duty Compression Springs

Lee Spring LHL 625D 05 is a heavy-duty die compression spring from the HEFTY™ Die Spring series, specifically engineered for demanding industrial applications requiring durabiliy and substantial load capacity. This spring features an 0.6-inch outside diameter (15.24 mm) with a 0.625-inch hole diameter (15.88 mm) and extends to a free length of 2 inch (50.8 mm), making it ideal for stamping and die applications. Made from Music Wire with a 0.12-inch wire diameter (3.05 mm), the spring delivers a spring rate of 290 lb/inch (50.789 N/mm) through its 9.29 active coils out of 11.29 total coils, with Factory Option wind for predictable deflection behavior. The spring compresses to a solid height of 1.37 inch (34.8 mm) while supporting a maximum load of 182.7 lb (812.69 N) at full compression. The spring has Squared and Ground ends and a Orange Powder Coat finish for optimal die spring performance.

About the HEFTY™ Die Spring Series

HEFTY™ Die Springs offer you the economy of round wire and the durability of chrome silicon or music wire ideally suited for any high stress, heavy load application. Great for many applications such as clutches, brakes, farm machinery and aircraft mechanisms. Available in five different types with different load ratings to fit standard diameters.

HEFTY™ Die Spring Compression Springs have useful applications in various industries, including:

  • Medical devices
  • Firearms
  • Pharmaceutical delivery devices
  • Lighting and electrical control
  • Petro-chemical processes
  • Communication devices
  • Aerospace
  • Testing and measurement equipment
  • Marine applications
  • Automotive
  • Locks and security devices
  • Precision Instruments
  • Hardware

...and many more applications

416991
Product Compression OD 0.6 in, Length 2 in, Music Wire
Product Compression OD 15.24 mm, Length 50.8 mm, Music Wire
Part Number LHL 625D 05
Series HEFTY™ Die Spring
Outside Diameter (inch) 0.6
Outside Diameter (cm) 1.524
Outside Diameter (mm) 15.24
Hole Diameter (inch) 0.625
Hole Diameter (cm) 1.588
Hole Diameter (mm) 15.88
Rod Diameter (inch) 0.344
Rod Diameter (cm) 0.874
Rod Diameter (mm) 8.74
Free Length (inch) 2
Free Length (cm) 5.08
Free Length (mm) 50.8
Rate (gm/mm) 5178.82
Rate (kg/cm) 51.788
Rate (kg/mm) 5.1788
Rate (lb/inch) 290
Rate (gm/cm) 51788.2
Rate (N/cm) 507.89
Rate (N/mm) 50.789
Solid Height (inch) 1.37
Solid Height (cm) 3.48
Solid Height (mm) 34.8
Wire Diameter (inch) 0.12
Wire Diameter (cm) 0.305
Wire Diameter (mm) 3.05
Material Music Wire
Load at Solid Height (gm) 82872.7
Load at Solid Height (kg) 82.873
Load at Solid Height (lb) 182.7
Load at Solid Height (N) 812.69
Ends Squared and Ground
Active Coils 9.29
Direction of Wind Factory Option
Finish Orange Powder Coat
Total Coils 11.29
0.12 0.6 0.001 0.001 0.625 0.344 2 0.062 11.29 290 29 1.37 182.7 0.12 2 0.6 3.05 15.24 0.04 15.88 8.74 50.8 1.575 50.789 34.8 812.69

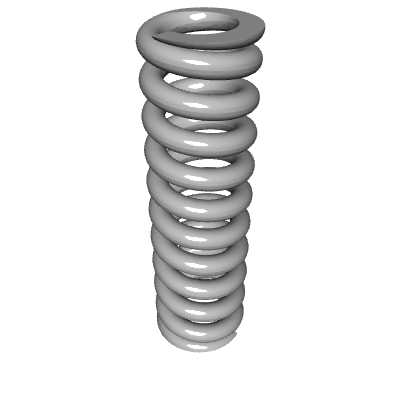

Default View

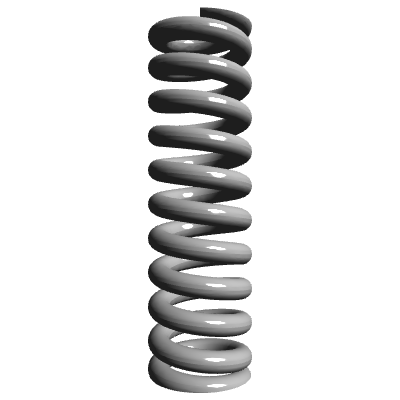

Side view

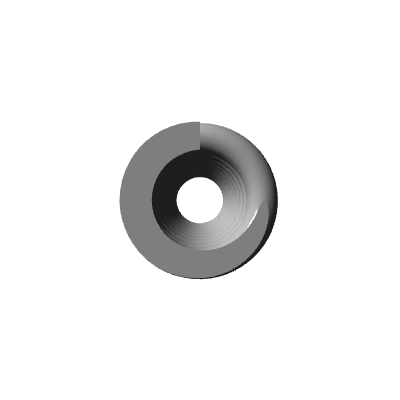

Top view
Quantity Price
1 - 24 $5.280
25 - 49 $4.700
50 - 99 $4.060
100 - 199 $3.480
200 - 299 $2.840
300 - 399 $2.594
400 - 499 $2.384
500 - 599 $2.195
600 - 699 $2.042
700 - 799 $1.920
800 - 899 $1.829
900 - 999 $1.767
1000 $1.735
