HEFTY™ Die Spring Compression Springs

Heavy Duty Compression Springs

Lee Spring LHL 625C 01 is a heavy-duty die compression spring from the HEFTY™ Die Spring series, specifically engineered for demanding industrial applications requiring durabiliy and substantial load capacity. This spring features an 0.592-inch outside diameter (15.04 mm) with a 0.625-inch hole diameter (15.88 mm) and extends to a free length of 1 inch (25.4 mm), making it ideal for stamping and die applications. Made from Music Wire with a 0.109-inch wire diameter (2.77 mm), the spring delivers a spring rate of 424 lb/inch (74.256 N/mm) through its 4.25 active coils out of 6.25 total coils, with Factory Option wind for predictable deflection behavior. The spring compresses to a solid height of 0.69 inch (17.53 mm) while supporting a maximum load of 131.4 lb (584.5 N) at full compression. The spring has Squared and Ground ends and a Black Powder Coat finish for optimal die spring performance.

About the HEFTY™ Die Spring Series

HEFTY™ Die Springs offer you the economy of round wire and the durability of chrome silicon or music wire ideally suited for any high stress, heavy load application. Great for many applications such as clutches, brakes, farm machinery and aircraft mechanisms. Available in five different types with different load ratings to fit standard diameters.

HEFTY™ Die Spring Compression Springs have useful applications in various industries, including:

  • Medical devices
  • Firearms
  • Pharmaceutical delivery devices
  • Lighting and electrical control
  • Petro-chemical processes
  • Communication devices
  • Aerospace
  • Testing and measurement equipment
  • Marine applications
  • Automotive
  • Locks and security devices
  • Precision Instruments
  • Hardware

...and many more applications

416821
Product Compression OD 0.592 in, Length 1 in, Music Wire
Product Compression OD 15.04 mm, Length 25.4 mm, Music Wire
Part Number LHL 625C 01
Series HEFTY™ Die Spring
Outside Diameter (inch) 0.592
Outside Diameter (cm) 1.504
Outside Diameter (mm) 15.04
Hole Diameter (inch) 0.625
Hole Diameter (cm) 1.588
Hole Diameter (mm) 15.88
Rod Diameter (inch) 0.344
Rod Diameter (cm) 0.874
Rod Diameter (mm) 8.74
Free Length (inch) 1
Free Length (cm) 2.54
Free Length (mm) 25.4
Rate (gm/mm) 7571.79
Rate (kg/cm) 75.718
Rate (kg/mm) 7.5718
Rate (lb/inch) 424
Rate (gm/cm) 75717.9
Rate (N/cm) 742.56
Rate (N/mm) 74.256
Solid Height (inch) 0.69
Solid Height (cm) 1.753
Solid Height (mm) 17.53
Wire Diameter (inch) 0.109
Wire Diameter (cm) 0.277
Wire Diameter (mm) 2.77
Material Music Wire
Load at Solid Height (gm) 59603
Load at Solid Height (kg) 59.603
Load at Solid Height (lb) 131.4
Load at Solid Height (N) 584.5
Ends Squared and Ground
Active Coils 4.25
Direction of Wind Factory Option
Finish Black Powder Coat
Total Coils 6.25
0.109 0.592 0.001 0.001 0.625 0.344 1 0.033 6.25 424 42.4 0.69 131.4 0.109 1 0.592 2.77 15.04 0.04 15.88 8.74 25.4 0.838 74.256 17.53 584.5

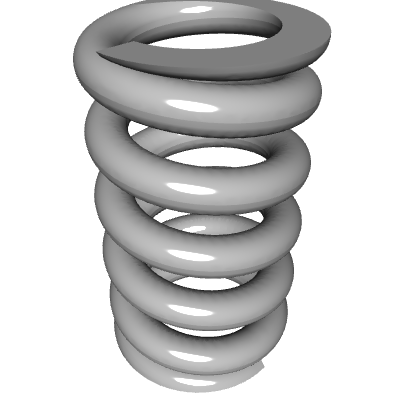

Default View

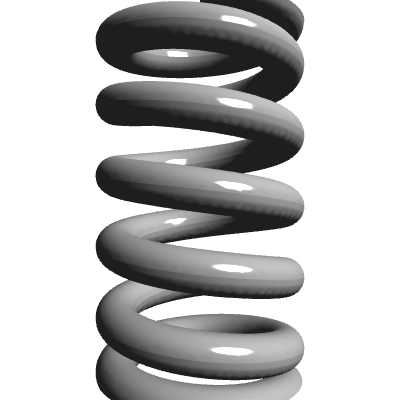

Side view

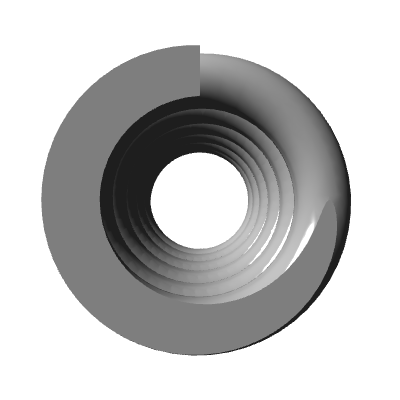

Top view
Quantity Price
1 - 24 $3.880
25 - 49 $3.290
50 - 99 $2.810
100 - 199 $2.240
200 - 299 $1.821
300 - 399 $1.663
400 - 499 $1.528
500 - 599 $1.406
600 - 699 $1.309
700 - 799 $1.231
800 - 899 $1.173
900 - 999 $1.132
1000 $1.111
