HEFTY™ Die Spring Compression Springs

Heavy Duty Compression Springs

Lee Spring LHL 625B 08 is a heavy-duty die compression spring from the HEFTY™ Die Spring series, specifically engineered for demanding industrial applications requiring durabiliy and substantial load capacity. This spring features an 0.586-inch outside diameter (14.88 mm) with a 0.625-inch hole diameter (15.88 mm) and extends to a free length of 3.5 inch (88.9 mm), making it ideal for stamping and die applications. Made from Music Wire with a 0.105-inch wire diameter (2.67 mm), the spring delivers a spring rate of 85 lb/inch (14.886 N/mm) through its 18.47 active coils out of 20.47 total coils, with Factory Option wind for predictable deflection behavior. The spring compresses to a solid height of 2.16 inch (54.86 mm) while supporting a maximum load of 113.9 lb (506.65 N) at full compression. The spring has Squared and Ground ends and a Purple Powder Coat finish for optimal die spring performance.

About the HEFTY™ Die Spring Series

HEFTY™ Die Springs offer you the economy of round wire and the durability of chrome silicon or music wire ideally suited for any high stress, heavy load application. Great for many applications such as clutches, brakes, farm machinery and aircraft mechanisms. Available in five different types with different load ratings to fit standard diameters.

HEFTY™ Die Spring Compression Springs have useful applications in various industries, including:

  • Medical devices
  • Firearms
  • Pharmaceutical delivery devices
  • Lighting and electrical control
  • Petro-chemical processes
  • Communication devices
  • Aerospace
  • Testing and measurement equipment
  • Marine applications
  • Automotive
  • Locks and security devices
  • Precision Instruments
  • Hardware

...and many more applications

416761
Product Compression OD 0.586 in, Length 3.5 in, Music Wire
Product Compression OD 14.88 mm, Length 88.9 mm, Music Wire
Part Number LHL 625B 08
Series HEFTY™ Die Spring
Outside Diameter (inch) 0.586
Outside Diameter (cm) 1.488
Outside Diameter (mm) 14.88
Hole Diameter (inch) 0.625
Hole Diameter (cm) 1.588
Hole Diameter (mm) 15.88
Rod Diameter (inch) 0.344
Rod Diameter (cm) 0.874
Rod Diameter (mm) 8.74
Free Length (inch) 3.5
Free Length (cm) 8.89
Free Length (mm) 88.9
Rate (gm/mm) 1517.93
Rate (kg/cm) 15.179
Rate (kg/mm) 1.5179
Rate (lb/inch) 85
Rate (gm/cm) 15179.3
Rate (N/cm) 148.86
Rate (N/mm) 14.886
Solid Height (inch) 2.16
Solid Height (cm) 5.486
Solid Height (mm) 54.86
Wire Diameter (inch) 0.105
Wire Diameter (cm) 0.267
Wire Diameter (mm) 2.67
Material Music Wire
Load at Solid Height (gm) 51665
Load at Solid Height (kg) 51.665
Load at Solid Height (lb) 113.9
Load at Solid Height (N) 506.65
Ends Squared and Ground
Active Coils 18.47
Direction of Wind Factory Option
Finish Purple Powder Coat
Total Coils 20.47
0.105 0.586 0.001 0.001 0.625 0.344 3.5 0.125 20.47 85 8.5 2.16 113.9 0.105 3.5 0.586 2.67 14.88 0.04 15.88 8.74 88.9 3.175 14.886 54.86 506.65

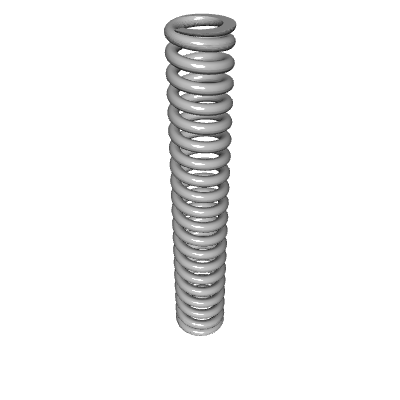

Default View
Side view
Top view
Quantity Price
1 - 24 $5.230
25 - 49 $4.690
50 - 99 $4.170
100 - 199 $3.700
200 - 299 $3.027
300 - 399 $2.764
400 - 499 $2.534
500 - 599 $2.339
600 - 699 $2.177
700 - 799 $2.044
800 - 899 $1.947
900 - 999 $1.882
1000 $1.849
