Model Code
LHL

HEFTY™ Die Spring Compression Springs

Heavy Duty Compression Springs

Lee Spring LHL 625B 07 is a heavy-duty die compression spring from the HEFTY™ Die Spring series, specifically engineered for demanding industrial applications requiring durabiliy and substantial load capacity. This spring features an 0.586-inch outside diameter (14.88 mm) with a 0.625-inch hole diameter (15.88 mm) and extends to a free length of 3 inch (76.2 mm), making it ideal for stamping and die applications. Made from Music Wire with a 0.105-inch wire diameter (2.67 mm), the spring delivers a spring rate of 100 lb/inch (17.513 N/mm) through its 15.7 active coils out of 17.7 total coils, with Factory Option wind for predictable deflection behavior. The spring compresses to a solid height of 1.87 inch (47.5 mm) while supporting a maximum load of 113 lb (502.65 N) at full compression. The spring has Squared and Ground ends and a Purple Powder Coat finish for optimal die spring performance.

About the HEFTY™ Die Spring Series

HEFTY™ Die Springs offer you the economy of round wire and the durability of chrome silicon or music wire ideally suited for any high stress, heavy load application. Great for many applications such as clutches, brakes, farm machinery and aircraft mechanisms. Available in five different types with different load ratings to fit standard diameters.

HEFTY™ Die Spring Compression Springs have useful applications in various industries, including:

  • Medical devices
  • Firearms
  • Pharmaceutical delivery devices
  • Lighting and electrical control
  • Petro-chemical processes
  • Communication devices
  • Aerospace
  • Testing and measurement equipment
  • Marine applications
  • Automotive
  • Locks and security devices
  • Precision Instruments
  • Hardware

...and many more applications

416751
Product Compression OD 0.586 in, Length 3 in, Music Wire
Product Compression OD 14.88 mm, Length 76.2 mm, Music Wire
Part Number LHL 625B 07
Series HEFTY™ Die Spring
Outside Diameter (inch) 0.586
Outside Diameter (cm) 1.488
Outside Diameter (mm) 14.88
Hole Diameter (inch) 0.625
Hole Diameter (cm) 1.588
Hole Diameter (mm) 15.88
Rod Diameter (inch) 0.344
Rod Diameter (cm) 0.874
Rod Diameter (mm) 8.74
Free Length (inch) 3
Free Length (cm) 7.62
Free Length (mm) 76.2
Rate (gm/mm) 1785.8
Rate (kg/cm) 17.858
Rate (kg/mm) 1.7858
Rate (lb/inch) 100
Rate (gm/cm) 17858
Rate (N/cm) 175.13
Rate (N/mm) 17.513
Solid Height (inch) 1.87
Solid Height (cm) 4.75
Solid Height (mm) 47.5
Wire Diameter (inch) 0.105
Wire Diameter (cm) 0.267
Wire Diameter (mm) 2.67
Material Music Wire
Load at Solid Height (gm) 51256.8
Load at Solid Height (kg) 51.257
Load at Solid Height (lb) 113
Load at Solid Height (N) 502.65
Ends Squared and Ground
Active Coils 15.7
Direction of Wind Factory Option
Finish Purple Powder Coat
Total Coils 17.7
0.105 0.586 0.001 0.001 0.625 0.344 3 0.105 17.7 100 10 1.87 113 0.105 3 0.586 2.67 14.88 0.04 15.88 8.74 76.2 2.667 17.513 47.5 502.65

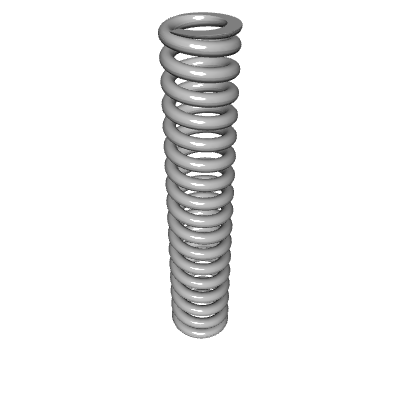

Default View
