HEFTY™ Die Spring Compression Springs

Heavy Duty Compression Springs

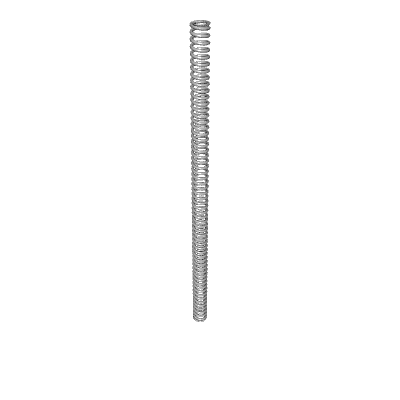

Lee Spring LHL 625A 14 is a heavy-duty die compression spring from the HEFTY™ Die Spring series, specifically engineered for demanding industrial applications requiring durabiliy and substantial load capacity. This spring features an 0.578-inch outside diameter (14.68 mm) with a 0.625-inch hole diameter (15.88 mm) and extends to a free length of 12 inch (304.8 mm), making it ideal for stamping and die applications. Made from Music Wire with a 0.09-inch wire diameter (2.29 mm), the spring delivers a spring rate of 14.5 lb/inch (2.539 N/mm) through its 58.4 active coils out of 60.4 total coils, with Factory Option wind for predictable deflection behavior. The spring compresses to a solid height of 5.712 inch (145.08 mm) while supporting a maximum load of 91.2 lb (405.68 N) at full compression. The spring has Squared and Ground ends and a Gray Powder Coat finish for optimal die spring performance.

About the HEFTY™ Die Spring Series

HEFTY™ Die Springs offer you the economy of round wire and the durability of chrome silicon or music wire ideally suited for any high stress, heavy load application. Great for many applications such as clutches, brakes, farm machinery and aircraft mechanisms. Available in five different types with different load ratings to fit standard diameters.

HEFTY™ Die Spring Compression Springs have useful applications in various industries, including:

  • Medical devices
  • Firearms
  • Pharmaceutical delivery devices
  • Lighting and electrical control
  • Petro-chemical processes
  • Communication devices
  • Aerospace
  • Testing and measurement equipment
  • Marine applications
  • Automotive
  • Locks and security devices
  • Precision Instruments
  • Hardware

...and many more applications

416571
Product Compression OD 0.578 in, Length 12 in, Music Wire
Product Compression OD 14.68 mm, Length 304.8 mm, Music Wire
Part Number LHL 625A 14
Series HEFTY™ Die Spring
Outside Diameter (inch) 0.578
Outside Diameter (cm) 1.468
Outside Diameter (mm) 14.68
Hole Diameter (inch) 0.625
Hole Diameter (cm) 1.588
Hole Diameter (mm) 15.88
Rod Diameter (inch) 0.344
Rod Diameter (cm) 0.874
Rod Diameter (mm) 8.74
Free Length (inch) 12
Free Length (cm) 30.48
Free Length (mm) 304.8
Rate (gm/mm) 258.94
Rate (kg/cm) 2.589
Rate (kg/mm) 0.2589
Rate (lb/inch) 14.5
Rate (gm/cm) 2589.4
Rate (N/cm) 25.39
Rate (N/mm) 2.539
Solid Height (inch) 5.712
Solid Height (cm) 14.508
Solid Height (mm) 145.08
Wire Diameter (inch) 0.09
Wire Diameter (cm) 0.229
Wire Diameter (mm) 2.29
Material Music Wire
Load at Solid Height (gm) 41368.3
Load at Solid Height (kg) 41.368
Load at Solid Height (lb) 91.2
Load at Solid Height (N) 405.68
Ends Squared and Ground
Active Coils 58.4
Direction of Wind Factory Option
Finish Gray Powder Coat
Total Coils 60.4
