Model Code
LHL

HEFTY™ Die Spring Compression Springs

Heavy Duty Compression Springs

Lee Spring LHL 625A 12 is a heavy-duty die compression spring from the HEFTY™ Die Spring series, specifically engineered for demanding industrial applications requiring durabiliy and substantial load capacity. This spring features an 0.575-inch outside diameter (14.61 mm) with a 0.625-inch hole diameter (15.88 mm) and extends to a free length of 8 inch (203.2 mm), making it ideal for stamping and die applications. Made from Music Wire with a 0.087-inch wire diameter (2.21 mm), the spring delivers a spring rate of 19 lb/inch (3.328 N/mm) through its 38.92 active coils out of 40.92 total coils, with Factory Option wind for predictable deflection behavior. The spring compresses to a solid height of 3.8 inch (96.52 mm) while supporting a maximum load of 84.362 lb (375.26 N) at full compression. The spring has Squared and Ground ends and a Gray Powder Coat finish for optimal die spring performance.

About the HEFTY™ Die Spring Series

HEFTY™ Die Springs offer you the economy of round wire and the durability of chrome silicon or music wire ideally suited for any high stress, heavy load application. Great for many applications such as clutches, brakes, farm machinery and aircraft mechanisms. Available in five different types with different load ratings to fit standard diameters.

HEFTY™ Die Spring Compression Springs have useful applications in various industries, including:

  • Medical devices
  • Firearms
  • Pharmaceutical delivery devices
  • Lighting and electrical control
  • Petro-chemical processes
  • Communication devices
  • Aerospace
  • Testing and measurement equipment
  • Marine applications
  • Automotive
  • Locks and security devices
  • Precision Instruments
  • Hardware

...and many more applications

416561
Product Compression OD 0.575 in, Length 8 in, Music Wire
Product Compression OD 14.61 mm, Length 203.2 mm, Music Wire
Part Number LHL 625A 12
Series HEFTY™ Die Spring
Outside Diameter (inch) 0.575
Outside Diameter (cm) 1.461
Outside Diameter (mm) 14.61
Hole Diameter (inch) 0.625
Hole Diameter (cm) 1.588
Hole Diameter (mm) 15.88
Rod Diameter (inch) 0.344
Rod Diameter (cm) 0.874
Rod Diameter (mm) 8.74
Free Length (inch) 8
Free Length (cm) 20.32
Free Length (mm) 203.2
Rate (gm/mm) 339.3
Rate (kg/cm) 3.393
Rate (kg/mm) 0.3393
Rate (lb/inch) 19
Rate (gm/cm) 3393
Rate (N/cm) 33.28
Rate (N/mm) 3.328
Solid Height (inch) 3.8
Solid Height (cm) 9.652
Solid Height (mm) 96.52
Wire Diameter (inch) 0.087
Wire Diameter (cm) 0.221
Wire Diameter (mm) 2.21
Material Music Wire
Load at Solid Height (gm) 38266.6
Load at Solid Height (kg) 38.267
Load at Solid Height (lb) 84.362
Load at Solid Height (N) 375.26
Ends Squared and Ground
Active Coils 38.92
Direction of Wind Factory Option
Finish Gray Powder Coat
Total Coils 40.92
0.087 0.575 0.001 0.001 0.625 0.344 8 0.205 40.92 19 1.9 3.8 84.362 0.087 8 0.575 2.21 14.61 0.04 15.88 8.74 203.2 5.207 3.328 96.52 375.26

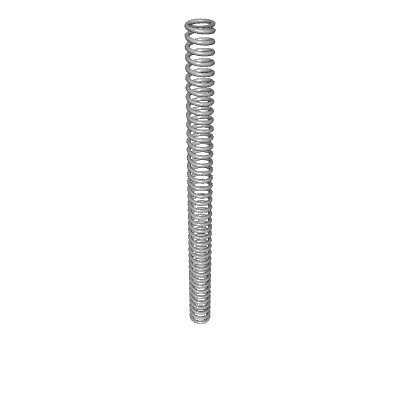

Default View

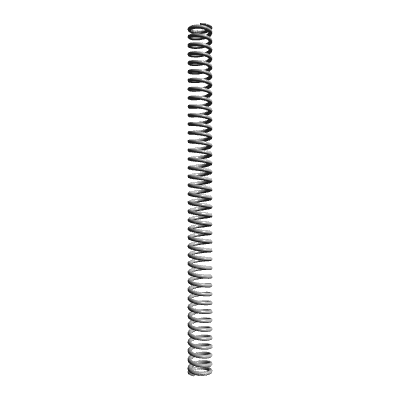

Side view
Top view
Quantity Price
1 - 24 $11.690
25 - 49 $10.480
50 - 99 $9.280
100 - 199 $8.020
200 - 299 $6.632
300 - 399 $6.059
400 - 499 $5.558
500 - 599 $5.127
600 - 699 $4.769
700 - 799 $4.480
800 - 899 $4.267
900 - 999 $4.122
1000 $4.054
