Model Code
LHL

HEFTY™ Die Spring Compression Springs

Heavy Duty Compression Springs

Lee Spring LHL 500B 01 is a heavy-duty die compression spring from the HEFTY™ Die Spring series, specifically engineered for demanding industrial applications requiring durabiliy and substantial load capacity. This spring features an 0.461-inch outside diameter (11.71 mm) with a 0.5-inch hole diameter (12.7 mm) and extends to a free length of 1 inch (25.4 mm), making it ideal for stamping and die applications. Made from Music Wire with a 0.078-inch wire diameter (1.98 mm), the spring delivers a spring rate of 168 lb/inch (29.422 N/mm) through its 5.88 active coils out of 7.88 total coils, with Factory Option wind for predictable deflection behavior. The spring compresses to a solid height of 0.61 inch (15.49 mm) while supporting a maximum load of 65.5 lb (291.36 N) at full compression. The spring has Squared and Ground ends and a Purple Powder Coat finish for optimal die spring performance.

About the HEFTY™ Die Spring Series

HEFTY™ Die Springs offer you the economy of round wire and the durability of chrome silicon or music wire ideally suited for any high stress, heavy load application. Great for many applications such as clutches, brakes, farm machinery and aircraft mechanisms. Available in five different types with different load ratings to fit standard diameters.

HEFTY™ Die Spring Compression Springs have useful applications in various industries, including:

  • Medical devices
  • Firearms
  • Pharmaceutical delivery devices
  • Lighting and electrical control
  • Petro-chemical processes
  • Communication devices
  • Aerospace
  • Testing and measurement equipment
  • Marine applications
  • Automotive
  • Locks and security devices
  • Precision Instruments
  • Hardware

...and many more applications

416061
Product Compression OD 0.461 in, Length 1 in, Music Wire
Product Compression OD 11.71 mm, Length 25.4 mm, Music Wire
Part Number LHL 500B 01
Series HEFTY™ Die Spring
Outside Diameter (inch) 0.461
Outside Diameter (cm) 1.171
Outside Diameter (mm) 11.71
Hole Diameter (inch) 0.5
Hole Diameter (cm) 1.27
Hole Diameter (mm) 12.7
Rod Diameter (inch) 0.281
Rod Diameter (cm) 0.714
Rod Diameter (mm) 7.14
Free Length (inch) 1
Free Length (cm) 2.54
Free Length (mm) 25.4
Rate (gm/mm) 3000.14
Rate (kg/cm) 30.001
Rate (kg/mm) 3.0001
Rate (lb/inch) 168
Rate (gm/cm) 30001.4
Rate (N/cm) 294.22
Rate (N/mm) 29.422
Solid Height (inch) 0.61
Solid Height (cm) 1.549
Solid Height (mm) 15.49
Wire Diameter (inch) 0.078
Wire Diameter (cm) 0.198
Wire Diameter (mm) 1.98
Material Music Wire
Load at Solid Height (gm) 29710.8
Load at Solid Height (kg) 29.711
Load at Solid Height (lb) 65.5
Load at Solid Height (N) 291.36
Ends Squared and Ground
Active Coils 5.88
Direction of Wind Factory Option
Finish Purple Powder Coat
Total Coils 7.88
0.078 0.461 0.001 0.001 0.5 0.281 1 0.033 7.88 168 16.8 0.61 65.5 0.078 1 0.461 1.98 11.71 0.04 12.7 7.14 25.4 0.838 29.422 15.49 291.36

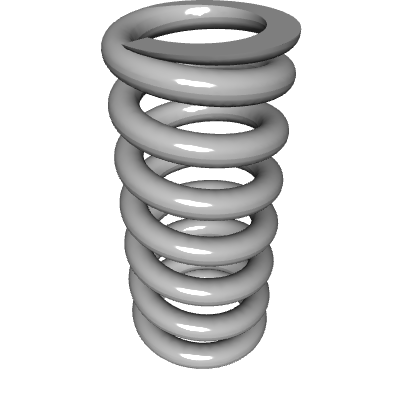

Default View

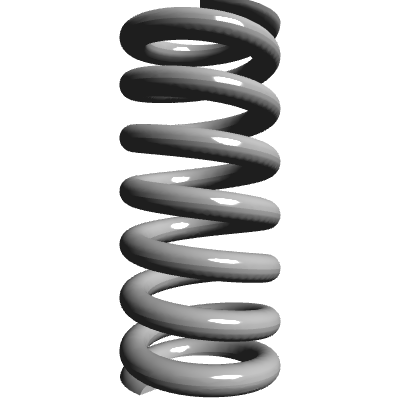

Side view

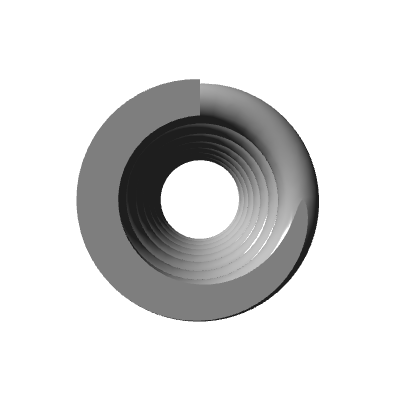

Top view
Quantity Price
1 - 24 $2.900
25 - 49 $2.450
50 - 99 $2.130
100 - 199 $1.810
200 - 299 $1.451
300 - 399 $1.325
400 - 499 $1.214
500 - 599 $1.123
600 - 699 $1.043
700 - 799 $0.982
800 - 899 $0.933
900 - 999 $0.901
1000 $0.889
