HEFTY™ Die Spring Compression Springs

Heavy Duty Compression Springs

Lee Spring LHL 500AB 03 is a heavy-duty die compression spring from the HEFTY™ Die Spring series, specifically engineered for demanding industrial applications requiring durabiliy and substantial load capacity. This spring features an 0.475-inch outside diameter (12.07 mm) with a 0.5-inch hole diameter (12.7 mm) and extends to a free length of 1.5 inch (38.1 mm), making it ideal for stamping and die applications. Made from Music Wire with a 0.078-inch wire diameter (1.98 mm), the spring delivers a spring rate of 98 lb/inch (17.163 N/mm) through its 9.06 active coils out of 11.05 total coils, with Factory Option wind for predictable deflection behavior. The spring compresses to a solid height of 0.89 inch (22.61 mm) while supporting a maximum load of 59.8 lb (266 N) at full compression. The spring has Squared and Ground ends and a Beige Powder Coat finish for optimal die spring performance.

About the HEFTY™ Die Spring Series

HEFTY™ Die Springs offer you the economy of round wire and the durability of chrome silicon or music wire ideally suited for any high stress, heavy load application. Great for many applications such as clutches, brakes, farm machinery and aircraft mechanisms. Available in five different types with different load ratings to fit standard diameters.

HEFTY™ Die Spring Compression Springs have useful applications in various industries, including:

  • Medical devices
  • Firearms
  • Pharmaceutical delivery devices
  • Lighting and electrical control
  • Petro-chemical processes
  • Communication devices
  • Aerospace
  • Testing and measurement equipment
  • Marine applications
  • Automotive
  • Locks and security devices
  • Precision Instruments
  • Hardware

...and many more applications

415991
Product Compression OD 0.475 in, Length 1.5 in, Music Wire
Product Compression OD 12.07 mm, Length 38.1 mm, Music Wire
Part Number LHL 500AB 03
Series HEFTY™ Die Spring
Outside Diameter (inch) 0.475
Outside Diameter (cm) 1.207
Outside Diameter (mm) 12.07
Hole Diameter (inch) 0.5
Hole Diameter (cm) 1.27
Hole Diameter (mm) 12.7
Rod Diameter (inch) 0.281
Rod Diameter (cm) 0.714
Rod Diameter (mm) 7.14
Free Length (inch) 1.5
Free Length (cm) 3.81
Free Length (mm) 38.1
Rate (gm/mm) 1750.08
Rate (kg/cm) 17.501
Rate (kg/mm) 1.7501
Rate (lb/inch) 98
Rate (gm/cm) 17500.8
Rate (N/cm) 171.63
Rate (N/mm) 17.163
Solid Height (inch) 0.89
Solid Height (cm) 2.261
Solid Height (mm) 22.61
Wire Diameter (inch) 0.078
Wire Diameter (cm) 0.198
Wire Diameter (mm) 1.98
Material Music Wire
Load at Solid Height (gm) 27125.3
Load at Solid Height (kg) 27.125
Load at Solid Height (lb) 59.8
Load at Solid Height (N) 266
Ends Squared and Ground
Active Coils 9.06
Direction of Wind Factory Option
Finish Beige Powder Coat
Total Coils 11.05
0.078 0.475 0.001 0.001 0.5 0.281 1.5 0.048 11.05 98 9.8 0.89 59.8 0.078 1.5 0.475 1.98 12.07 0.04 12.7 7.14 38.1 1.219 17.163 22.61 266

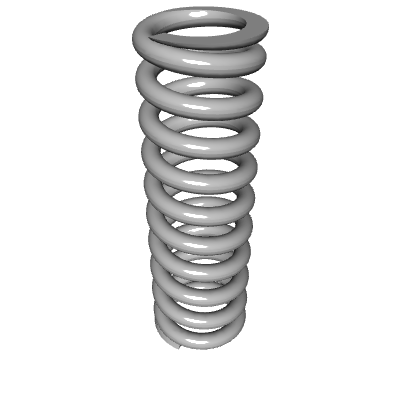

Default View

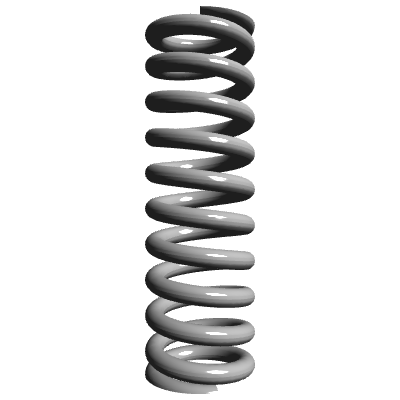

Side view
Top view
Quantity Price
1 - 24 $3.400
25 - 49 $3.020
50 - 99 $2.610
100 - 199 $2.240
200 - 299 $1.687
300 - 399 $1.542
400 - 499 $1.417
500 - 599 $1.305
600 - 699 $1.213
700 - 799 $1.141
800 - 899 $1.088
900 - 999 $1.048
1000 $1.030
