HEFTY™ Die Spring Compression Springs

Heavy Duty Compression Springs

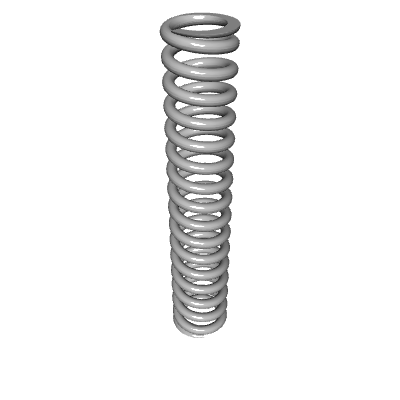

Lee Spring LHL 500A 06 is a heavy-duty die compression spring from the HEFTY™ Die Spring series, specifically engineered for demanding industrial applications requiring durabiliy and substantial load capacity. This spring features an 0.467-inch outside diameter (11.86 mm) with a 0.5-inch hole diameter (12.7 mm) and extends to a free length of 2.5 inch (63.5 mm), making it ideal for stamping and die applications. Made from Music Wire with a 0.075-inch wire diameter (1.91 mm), the spring delivers a spring rate of 52 lb/inch (9.107 N/mm) through its 15.15 active coils out of 17.15 total coils, with Factory Option wind for predictable deflection behavior. The spring compresses to a solid height of 1.24 inch (31.5 mm) while supporting a maximum load of 65.5 lb (291.36 N) at full compression. The spring has Squared and Ground ends and a Gray Powder Coat finish for optimal die spring performance.

About the HEFTY™ Die Spring Series

HEFTY™ Die Springs offer you the economy of round wire and the durability of chrome silicon or music wire ideally suited for any high stress, heavy load application. Great for many applications such as clutches, brakes, farm machinery and aircraft mechanisms. Available in five different types with different load ratings to fit standard diameters.

HEFTY™ Die Spring Compression Springs have useful applications in various industries, including:

  • Medical devices
  • Firearms
  • Pharmaceutical delivery devices
  • Lighting and electrical control
  • Petro-chemical processes
  • Communication devices
  • Aerospace
  • Testing and measurement equipment
  • Marine applications
  • Automotive
  • Locks and security devices
  • Precision Instruments
  • Hardware

...and many more applications

415851
Product Compression OD 0.467 in, Length 2.5 in, Music Wire
Product Compression OD 11.86 mm, Length 63.5 mm, Music Wire
Part Number LHL 500A 06
Series HEFTY™ Die Spring
Outside Diameter (inch) 0.467
Outside Diameter (cm) 1.186
Outside Diameter (mm) 11.86
Hole Diameter (inch) 0.5
Hole Diameter (cm) 1.27
Hole Diameter (mm) 12.7
Rod Diameter (inch) 0.281
Rod Diameter (cm) 0.714
Rod Diameter (mm) 7.14
Free Length (inch) 2.5
Free Length (cm) 6.35
Free Length (mm) 63.5
Rate (gm/mm) 928.62
Rate (kg/cm) 9.286
Rate (kg/mm) 0.9286
Rate (lb/inch) 52
Rate (gm/cm) 9286.2
Rate (N/cm) 91.07
Rate (N/mm) 9.107
Solid Height (inch) 1.24
Solid Height (cm) 3.15
Solid Height (mm) 31.5
Wire Diameter (inch) 0.075
Wire Diameter (cm) 0.191
Wire Diameter (mm) 1.91
Material Music Wire
Load at Solid Height (gm) 29710.8
Load at Solid Height (kg) 29.711
Load at Solid Height (lb) 65.5
Load at Solid Height (N) 291.36
Ends Squared and Ground
Active Coils 15.15
Direction of Wind Factory Option
Finish Gray Powder Coat
Total Coils 17.15
0.075 0.467 0.001 0.001 0.5 0.281 2.5 0.088 17.15 52 5.2 1.24 65.5 0.075 2.5 0.467 1.91 11.86 0.04 12.7 7.14 63.5 2.235 9.107 31.5 291.36
Default View
Side view
Top view
Quantity Price
1 - 24 $3.880
25 - 49 $3.390
50 - 99 $3.010
100 - 199 $2.660
200 - 299 $2.180
300 - 399 $1.990
400 - 499 $1.825
500 - 599 $1.683
600 - 699 $1.564
700 - 799 $1.471
800 - 899 $1.402
900 - 999 $1.357
1000 $1.332
