HEFTY™ Die Spring Compression Springs

Heavy Duty Compression Springs

Lee Spring LHL 375D 7B is a heavy-duty die compression spring from the HEFTY™ Die Spring series, specifically engineered for demanding industrial applications requiring durabiliy and substantial load capacity. This spring features an 0.355-inch outside diameter (9.02 mm) with a 0.375-inch hole diameter (9.53 mm) and extends to a free length of 5 inch (127 mm), making it ideal for stamping and die applications. Made from Music Wire with a 0.071-inch wire diameter (1.8 mm), the spring delivers a spring rate of 41 lb/inch (7.18 N/mm) through its 40.59 active coils out of 42.59 total coils, with Factory Option wind for predictable deflection behavior. The spring compresses to a solid height of 3.4 inch (86.36 mm) while supporting a maximum load of 81.03 lb (360.44 N) at full compression. The spring has Squared and Ground ends and a Orange Powder Coat finish for optimal die spring performance.

About the HEFTY™ Die Spring Series

HEFTY™ Die Springs offer you the economy of round wire and the durability of chrome silicon or music wire ideally suited for any high stress, heavy load application. Great for many applications such as clutches, brakes, farm machinery and aircraft mechanisms. Available in five different types with different load ratings to fit standard diameters.

HEFTY™ Die Spring Compression Springs have useful applications in various industries, including:

  • Medical devices
  • Firearms
  • Pharmaceutical delivery devices
  • Lighting and electrical control
  • Petro-chemical processes
  • Communication devices
  • Aerospace
  • Testing and measurement equipment
  • Marine applications
  • Automotive
  • Locks and security devices
  • Precision Instruments
  • Hardware

...and many more applications

415791
Product Compression OD 0.355 in, Length 5 in, Music Wire
Product Compression OD 9.02 mm, Length 127 mm, Music Wire
Part Number LHL 375D 7B
Series HEFTY™ Die Spring
Outside Diameter (inch) 0.355
Outside Diameter (cm) 0.902
Outside Diameter (mm) 9.02
Hole Diameter (inch) 0.375
Hole Diameter (cm) 0.953
Hole Diameter (mm) 9.53
Rod Diameter (inch) 0.188
Rod Diameter (cm) 0.478
Rod Diameter (mm) 4.78
Free Length (inch) 5
Free Length (cm) 12.7
Free Length (mm) 127
Rate (gm/mm) 732.18
Rate (kg/cm) 7.322
Rate (kg/mm) 0.7322
Rate (lb/inch) 41
Rate (gm/cm) 7321.8
Rate (N/cm) 71.8
Rate (N/mm) 7.18
Solid Height (inch) 3.4
Solid Height (cm) 8.636
Solid Height (mm) 86.36
Wire Diameter (inch) 0.071
Wire Diameter (cm) 0.18
Wire Diameter (mm) 1.8
Material Music Wire
Load at Solid Height (gm) 36755.2
Load at Solid Height (kg) 36.755
Load at Solid Height (lb) 81.03
Load at Solid Height (N) 360.44
Ends Squared and Ground
Active Coils 40.59
Direction of Wind Factory Option
Finish Orange Powder Coat
Total Coils 42.59
0.071 0.355 0.001 0.001 0.375 0.188 5 0.175 42.59 41 4.1 3.4 81.03 0.071 5 0.355 1.8 9.02 0.04 9.53 4.78 127 4.445 7.18 86.36 360.44

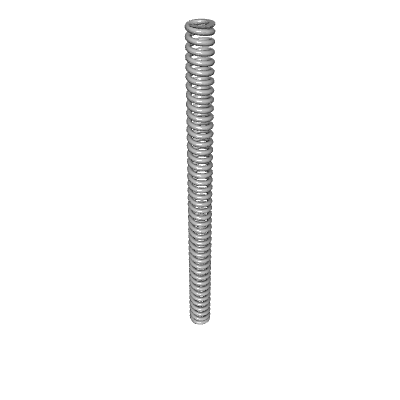

Default View

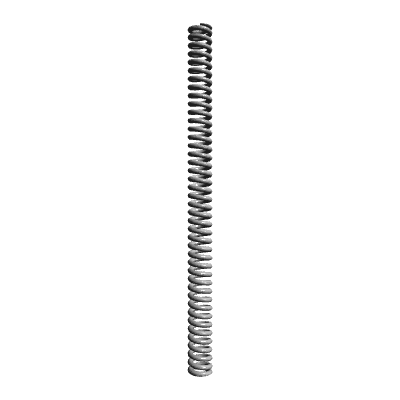

Side view
