HEFTY™ Die Spring Compression Springs

Heavy Duty Compression Springs

Lee Spring LHL 375D 09 is a heavy-duty die compression spring from the HEFTY™ Die Spring series, specifically engineered for demanding industrial applications requiring durabiliy and substantial load capacity. This spring features an 0.353-inch outside diameter (8.97 mm) with a 0.375-inch hole diameter (9.53 mm) and extends to a free length of 7 inch (177.8 mm), making it ideal for stamping and die applications. Made from Music Wire with a 0.071-inch wire diameter (1.8 mm), the spring delivers a spring rate of 30 lb/inch (5.254 N/mm) through its 56.66 active coils out of 58.66 total coils, with Factory Option wind for predictable deflection behavior. The spring compresses to a solid height of 4.8 inch (121.92 mm) while supporting a maximum load of 85.06 lb (378.37 N) at full compression. The spring has Squared and Ground ends and a Orange Powder Coat finish for optimal die spring performance.

About the HEFTY™ Die Spring Series

HEFTY™ Die Springs offer you the economy of round wire and the durability of chrome silicon or music wire ideally suited for any high stress, heavy load application. Great for many applications such as clutches, brakes, farm machinery and aircraft mechanisms. Available in five different types with different load ratings to fit standard diameters.

HEFTY™ Die Spring Compression Springs have useful applications in various industries, including:

  • Medical devices
  • Firearms
  • Pharmaceutical delivery devices
  • Lighting and electrical control
  • Petro-chemical processes
  • Communication devices
  • Aerospace
  • Testing and measurement equipment
  • Marine applications
  • Automotive
  • Locks and security devices
  • Precision Instruments
  • Hardware

...and many more applications

415751
Product Compression OD 0.353 in, Length 7 in, Music Wire
Product Compression OD 8.97 mm, Length 177.8 mm, Music Wire
Part Number LHL 375D 09
Series HEFTY™ Die Spring
Outside Diameter (inch) 0.353
Outside Diameter (cm) 0.897
Outside Diameter (mm) 8.97
Hole Diameter (inch) 0.375
Hole Diameter (cm) 0.953
Hole Diameter (mm) 9.53
Rod Diameter (inch) 0.188
Rod Diameter (cm) 0.478
Rod Diameter (mm) 4.78
Free Length (inch) 7
Free Length (cm) 17.78
Free Length (mm) 177.8
Rate (gm/mm) 535.74
Rate (kg/cm) 5.357
Rate (kg/mm) 0.5357
Rate (lb/inch) 30
Rate (gm/cm) 5357.4
Rate (N/cm) 52.54
Rate (N/mm) 5.254
Solid Height (inch) 4.8
Solid Height (cm) 12.192
Solid Height (mm) 121.92
Wire Diameter (inch) 0.071
Wire Diameter (cm) 0.18
Wire Diameter (mm) 1.8
Material Music Wire
Load at Solid Height (gm) 38583.2
Load at Solid Height (kg) 38.583
Load at Solid Height (lb) 85.06
Load at Solid Height (N) 378.37
Ends Squared and Ground
Active Coils 56.66
Direction of Wind Factory Option
Finish Orange Powder Coat
Total Coils 58.66
0.071 0.353 0.001 0.001 0.375 0.188 7 0.19 58.66 30 3 4.8 85.06 0.071 7 0.353 1.8 8.97 0.04 9.53 4.78 177.8 4.826 5.254 121.92 378.37

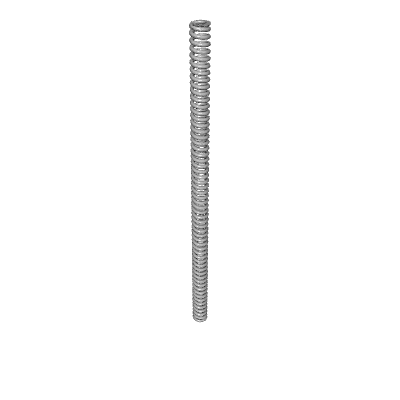

Default View
Side view

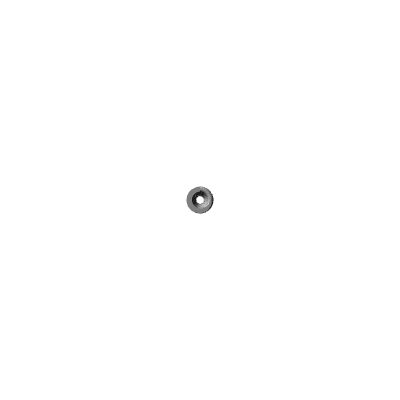

Top view
