Model Code
LHL

HEFTY™ Die Spring Compression Springs

Heavy Duty Compression Springs

Lee Spring LHL 375D 04 is a heavy-duty die compression spring from the HEFTY™ Die Spring series, specifically engineered for demanding industrial applications requiring durabiliy and substantial load capacity. This spring features an 0.354-inch outside diameter (8.99 mm) with a 0.375-inch hole diameter (9.53 mm) and extends to a free length of 1.75 inch (44.45 mm), making it ideal for stamping and die applications. Made from Music Wire with a 0.071-inch wire diameter (1.8 mm), the spring delivers a spring rate of 115 lb/inch (20.14 N/mm) through its 14.62 active coils out of 16.62 total coils, with Factory Option wind for predictable deflection behavior. The spring compresses to a solid height of 1.16 inch (29.46 mm) while supporting a maximum load of 67.9 lb (302.03 N) at full compression. The spring has Squared and Ground ends and a Orange Powder Coat finish for optimal die spring performance.

About the HEFTY™ Die Spring Series

HEFTY™ Die Springs offer you the economy of round wire and the durability of chrome silicon or music wire ideally suited for any high stress, heavy load application. Great for many applications such as clutches, brakes, farm machinery and aircraft mechanisms. Available in five different types with different load ratings to fit standard diameters.

HEFTY™ Die Spring Compression Springs have useful applications in various industries, including:

  • Medical devices
  • Firearms
  • Pharmaceutical delivery devices
  • Lighting and electrical control
  • Petro-chemical processes
  • Communication devices
  • Aerospace
  • Testing and measurement equipment
  • Marine applications
  • Automotive
  • Locks and security devices
  • Precision Instruments
  • Hardware

...and many more applications

415701
Product Compression OD 0.354 in, Length 1.75 in, Music Wire
Product Compression OD 8.99 mm, Length 44.45 mm, Music Wire
Part Number LHL 375D 04
Series HEFTY™ Die Spring
Outside Diameter (inch) 0.354
Outside Diameter (cm) 0.899
Outside Diameter (mm) 8.99
Hole Diameter (inch) 0.375
Hole Diameter (cm) 0.953
Hole Diameter (mm) 9.53
Rod Diameter (inch) 0.188
Rod Diameter (cm) 0.478
Rod Diameter (mm) 4.78
Free Length (inch) 1.75
Free Length (cm) 4.445
Free Length (mm) 44.45
Rate (gm/mm) 2053.67
Rate (kg/cm) 20.537
Rate (kg/mm) 2.0537
Rate (lb/inch) 115
Rate (gm/cm) 20536.7
Rate (N/cm) 201.4
Rate (N/mm) 20.14
Solid Height (inch) 1.16
Solid Height (cm) 2.946
Solid Height (mm) 29.46
Wire Diameter (inch) 0.071
Wire Diameter (cm) 0.18
Wire Diameter (mm) 1.8
Material Music Wire
Load at Solid Height (gm) 30799.4
Load at Solid Height (kg) 30.799
Load at Solid Height (lb) 67.9
Load at Solid Height (N) 302.03
Ends Squared and Ground
Active Coils 14.62
Direction of Wind Factory Option
Finish Orange Powder Coat
Total Coils 16.62
0.071 0.354 0.001 0.001 0.375 0.188 1.75 0.053 16.62 115 11.5 1.16 67.9 0.071 1.75 0.354 1.8 8.99 0.04 9.53 4.78 44.45 1.346 20.14 29.46 302.03

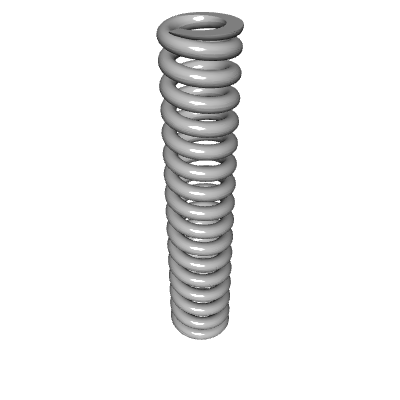

Default View
Side view
Top view
Quantity Price
1 - 24 $3.760
25 - 49 $3.330
50 - 99 $2.940
100 - 199 $2.490
200 - 299 $2.019
300 - 399 $1.846
400 - 499 $1.695
500 - 599 $1.559
600 - 699 $1.453
700 - 799 $1.365
800 - 899 $1.300
900 - 999 $1.255
1000 $1.235
