HEFTY™ Die Spring Compression Springs

Heavy Duty Compression Springs

Lee Spring LHL 375C 06 is a heavy-duty die compression spring from the HEFTY™ Die Spring series, specifically engineered for demanding industrial applications requiring durabiliy and substantial load capacity. This spring features an 0.355-inch outside diameter (9.02 mm) with a 0.375-inch hole diameter (9.53 mm) and extends to a free length of 2.5 inch (63.5 mm), making it ideal for stamping and die applications. Made from Music Wire with a 0.067-inch wire diameter (1.7 mm), the spring delivers a spring rate of 60 lb/inch (10.508 N/mm) through its 21.09 active coils out of 23.09 total coils, with Factory Option wind for predictable deflection behavior. The spring compresses to a solid height of 1.53 inch (38.86 mm) while supporting a maximum load of 58.2 lb (258.89 N) at full compression. The spring has Squared and Ground ends and a Black Powder Coat finish for optimal die spring performance.

About the HEFTY™ Die Spring Series

HEFTY™ Die Springs offer you the economy of round wire and the durability of chrome silicon or music wire ideally suited for any high stress, heavy load application. Great for many applications such as clutches, brakes, farm machinery and aircraft mechanisms. Available in five different types with different load ratings to fit standard diameters.

HEFTY™ Die Spring Compression Springs have useful applications in various industries, including:

  • Medical devices
  • Firearms
  • Pharmaceutical delivery devices
  • Lighting and electrical control
  • Petro-chemical processes
  • Communication devices
  • Aerospace
  • Testing and measurement equipment
  • Marine applications
  • Automotive
  • Locks and security devices
  • Precision Instruments
  • Hardware

...and many more applications

415601
Product Compression OD 0.355 in, Length 2.5 in, Music Wire
Product Compression OD 9.02 mm, Length 63.5 mm, Music Wire
Part Number LHL 375C 06
Series HEFTY™ Die Spring
Outside Diameter (inch) 0.355
Outside Diameter (cm) 0.902
Outside Diameter (mm) 9.02
Hole Diameter (inch) 0.375
Hole Diameter (cm) 0.953
Hole Diameter (mm) 9.53
Rod Diameter (inch) 0.188
Rod Diameter (cm) 0.478
Rod Diameter (mm) 4.78
Free Length (inch) 2.5
Free Length (cm) 6.35
Free Length (mm) 63.5
Rate (gm/mm) 1071.48
Rate (kg/cm) 10.715
Rate (kg/mm) 1.0715
Rate (lb/inch) 60
Rate (gm/cm) 10714.8
Rate (N/cm) 105.08
Rate (N/mm) 10.508
Solid Height (inch) 1.53
Solid Height (cm) 3.886
Solid Height (mm) 38.86
Wire Diameter (inch) 0.067
Wire Diameter (cm) 0.17
Wire Diameter (mm) 1.7
Material Music Wire
Load at Solid Height (gm) 26399.5
Load at Solid Height (kg) 26.4
Load at Solid Height (lb) 58.2
Load at Solid Height (N) 258.89
Ends Squared and Ground
Active Coils 21.09
Direction of Wind Factory Option
Finish Black Powder Coat
Total Coils 23.09
0.067 0.355 0.001 0.001 0.375 0.188 2.5 0.088 23.09 60 6 1.53 58.2 0.067 2.5 0.355 1.7 9.02 0.04 9.53 4.78 63.5 2.235 10.508 38.86 258.89

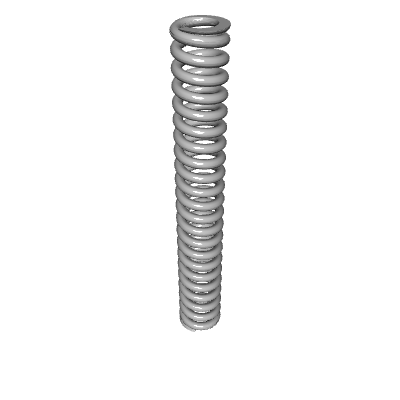

Default View
