Model Code
LHL

HEFTY™ Die Spring Compression Springs

Heavy Duty Compression Springs

Lee Spring LHL 375C 01 is a heavy-duty die compression spring from the HEFTY™ Die Spring series, specifically engineered for demanding industrial applications requiring durabiliy and substantial load capacity. This spring features an 0.342-inch outside diameter (8.69 mm) with a 0.375-inch hole diameter (9.53 mm) and extends to a free length of 1 inch (25.4 mm), making it ideal for stamping and die applications. Made from Music Wire with a 0.063-inch wire diameter (1.59 mm), the spring delivers a spring rate of 124 lb/inch (21.716 N/mm) through its 8.14 active coils out of 10.14 total coils, with Factory Option wind for predictable deflection behavior. The spring compresses to a solid height of 0.63 inch (16 mm) while supporting a maximum load of 45.9 lb (204.17 N) at full compression. The spring has Squared and Ground ends and a Black Powder Coat finish for optimal die spring performance.

About the HEFTY™ Die Spring Series

HEFTY™ Die Springs offer you the economy of round wire and the durability of chrome silicon or music wire ideally suited for any high stress, heavy load application. Great for many applications such as clutches, brakes, farm machinery and aircraft mechanisms. Available in five different types with different load ratings to fit standard diameters.

HEFTY™ Die Spring Compression Springs have useful applications in various industries, including:

  • Medical devices
  • Firearms
  • Pharmaceutical delivery devices
  • Lighting and electrical control
  • Petro-chemical processes
  • Communication devices
  • Aerospace
  • Testing and measurement equipment
  • Marine applications
  • Automotive
  • Locks and security devices
  • Precision Instruments
  • Hardware

...and many more applications

415551
Product Compression OD 0.342 in, Length 1 in, Music Wire
Product Compression OD 8.69 mm, Length 25.4 mm, Music Wire
Part Number LHL 375C 01
Series HEFTY™ Die Spring
Outside Diameter (inch) 0.342
Outside Diameter (cm) 0.869
Outside Diameter (mm) 8.69
Hole Diameter (inch) 0.375
Hole Diameter (cm) 0.953
Hole Diameter (mm) 9.53
Rod Diameter (inch) 0.188
Rod Diameter (cm) 0.478
Rod Diameter (mm) 4.78
Free Length (inch) 1
Free Length (cm) 2.54
Free Length (mm) 25.4
Rate (gm/mm) 2214.39
Rate (kg/cm) 22.144
Rate (kg/mm) 2.2144
Rate (lb/inch) 124
Rate (gm/cm) 22143.9
Rate (N/cm) 217.16
Rate (N/mm) 21.716
Solid Height (inch) 0.63
Solid Height (cm) 1.6
Solid Height (mm) 16
Wire Diameter (inch) 0.063
Wire Diameter (cm) 0.159
Wire Diameter (mm) 1.59
Material Music Wire
Load at Solid Height (gm) 20820.2
Load at Solid Height (kg) 20.82
Load at Solid Height (lb) 45.9
Load at Solid Height (N) 204.17
Ends Squared and Ground
Active Coils 8.14
Direction of Wind Factory Option
Finish Black Powder Coat
Total Coils 10.14
0.0625 0.342 0.001 0.001 0.375 0.188 1 0.033 10.14 124 12.4 0.63 45.9 0.0625 1 0.342 1.59 8.69 0.04 9.53 4.78 25.4 0.838 21.716 16 204.17

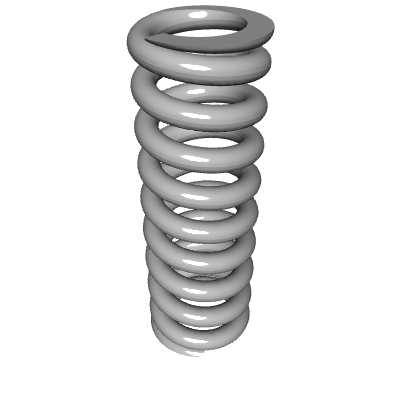

Default View

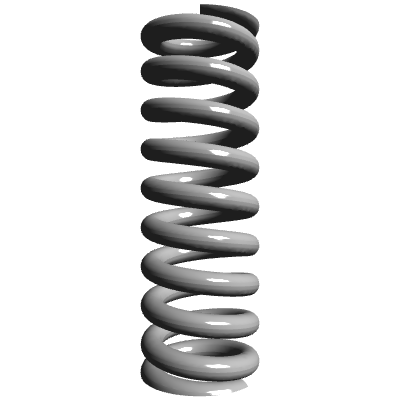

Side view
Top view
Quantity Price
1 - 24 $2.840
25 - 49 $2.440
50 - 99 $2.160
100 - 199 $1.730
200 - 299 $1.395
300 - 399 $1.274
400 - 499 $1.171
500 - 599 $1.081
600 - 699 $1.006
700 - 799 $0.946
800 - 899 $0.899
900 - 999 $0.867
1000 $0.855
