HEFTY™ Die Spring Compression Springs

Heavy Duty Compression Springs

Lee Spring LHL 375B 02 is a heavy-duty die compression spring from the HEFTY™ Die Spring series, specifically engineered for demanding industrial applications requiring durabiliy and substantial load capacity. This spring features an 0.337-inch outside diameter (8.56 mm) with a 0.375-inch hole diameter (9.53 mm) and extends to a free length of 1.25 inch (31.75 mm), making it ideal for stamping and die applications. Made from Music Wire with a 0.058-inch wire diameter (1.47 mm), the spring delivers a spring rate of 73 lb/inch (12.785 N/mm) through its 10.71 active coils out of 12.71 total coils, with Factory Option wind for predictable deflection behavior. The spring compresses to a solid height of 0.73 inch (18.54 mm) while supporting a maximum load of 38 lb (169.03 N) at full compression. The spring has Squared and Ground ends and a Purple Powder Coat finish for optimal die spring performance.

About the HEFTY™ Die Spring Series

HEFTY™ Die Springs offer you the economy of round wire and the durability of chrome silicon or music wire ideally suited for any high stress, heavy load application. Great for many applications such as clutches, brakes, farm machinery and aircraft mechanisms. Available in five different types with different load ratings to fit standard diameters.

HEFTY™ Die Spring Compression Springs have useful applications in various industries, including:

  • Medical devices
  • Firearms
  • Pharmaceutical delivery devices
  • Lighting and electrical control
  • Petro-chemical processes
  • Communication devices
  • Aerospace
  • Testing and measurement equipment
  • Marine applications
  • Automotive
  • Locks and security devices
  • Precision Instruments
  • Hardware

...and many more applications

415441
Product Compression OD 0.337 in, Length 1.25 in, Music Wire
Product Compression OD 8.56 mm, Length 31.75 mm, Music Wire
Part Number LHL 375B 02
Series HEFTY™ Die Spring
Outside Diameter (inch) 0.337
Outside Diameter (cm) 0.856
Outside Diameter (mm) 8.56
Hole Diameter (inch) 0.375
Hole Diameter (cm) 0.953
Hole Diameter (mm) 9.53
Rod Diameter (inch) 0.188
Rod Diameter (cm) 0.478
Rod Diameter (mm) 4.78
Free Length (inch) 1.25
Free Length (cm) 3.175
Free Length (mm) 31.75
Rate (gm/mm) 1303.63
Rate (kg/cm) 13.036
Rate (kg/mm) 1.3036
Rate (lb/inch) 73
Rate (gm/cm) 13036.3
Rate (N/cm) 127.85
Rate (N/mm) 12.785
Solid Height (inch) 0.73
Solid Height (cm) 1.854
Solid Height (mm) 18.54
Wire Diameter (inch) 0.058
Wire Diameter (cm) 0.147
Wire Diameter (mm) 1.47
Material Music Wire
Load at Solid Height (gm) 17236.8
Load at Solid Height (kg) 17.237
Load at Solid Height (lb) 38
Load at Solid Height (N) 169.03
Ends Squared and Ground
Active Coils 10.71
Direction of Wind Factory Option
Finish Purple Powder Coat
Total Coils 12.71
0.058 0.337 0.001 0.001 0.375 0.188 1.25 0.039 12.71 73 7.3 0.73 38 0.058 1.25 0.337 1.47 8.56 0.04 9.53 4.78 31.75 0.991 12.785 18.54 169.03

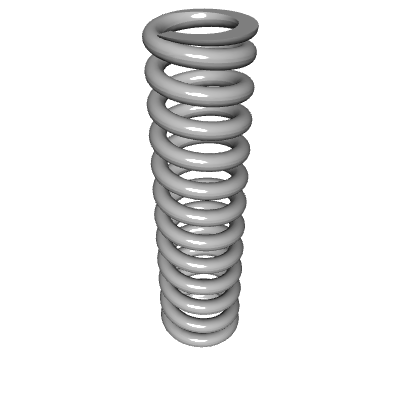

Default View

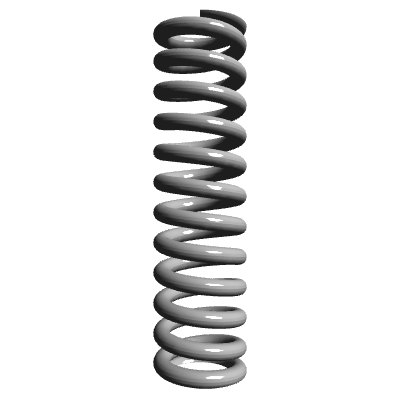

Side view
Top view
Quantity Price
1 - 24 $2.600
25 - 49 $2.260
50 - 99 $2.030
100 - 199 $1.740
200 - 299 $1.395
300 - 399 $1.274
400 - 499 $1.171
500 - 599 $1.081
600 - 699 $1.006
700 - 799 $0.946
800 - 899 $0.899
900 - 999 $0.867
1000 $0.855
