Model Code
LHL

HEFTY™ Die Spring Compression Springs

Heavy Duty Compression Springs

Lee Spring LHL 375B 01 is a heavy-duty die compression spring from the HEFTY™ Die Spring series, specifically engineered for demanding industrial applications requiring durabiliy and substantial load capacity. This spring features an 0.343-inch outside diameter (8.71 mm) with a 0.375-inch hole diameter (9.53 mm) and extends to a free length of 1 inch (25.4 mm), making it ideal for stamping and die applications. Made from Music Wire with a 0.058-inch wire diameter (1.47 mm), the spring delivers a spring rate of 90 lb/inch (15.762 N/mm) through its 8.15 active coils out of 10.15 total coils, with Factory Option wind for predictable deflection behavior. The spring compresses to a solid height of 0.59 inch (14.99 mm) while supporting a maximum load of 36.9 lb (164.14 N) at full compression. The spring has Squared and Ground ends and a Purple Powder Coat finish for optimal die spring performance.

About the HEFTY™ Die Spring Series

HEFTY™ Die Springs offer you the economy of round wire and the durability of chrome silicon or music wire ideally suited for any high stress, heavy load application. Great for many applications such as clutches, brakes, farm machinery and aircraft mechanisms. Available in five different types with different load ratings to fit standard diameters.

HEFTY™ Die Spring Compression Springs have useful applications in various industries, including:

  • Medical devices
  • Firearms
  • Pharmaceutical delivery devices
  • Lighting and electrical control
  • Petro-chemical processes
  • Communication devices
  • Aerospace
  • Testing and measurement equipment
  • Marine applications
  • Automotive
  • Locks and security devices
  • Precision Instruments
  • Hardware

...and many more applications

415431
Product Compression OD 0.343 in, Length 1 in, Music Wire
Product Compression OD 8.71 mm, Length 25.4 mm, Music Wire
Part Number LHL 375B 01
Series HEFTY™ Die Spring
Outside Diameter (inch) 0.343
Outside Diameter (cm) 0.871
Outside Diameter (mm) 8.71
Hole Diameter (inch) 0.375
Hole Diameter (cm) 0.953
Hole Diameter (mm) 9.53
Rod Diameter (inch) 0.188
Rod Diameter (cm) 0.478
Rod Diameter (mm) 4.78
Free Length (inch) 1
Free Length (cm) 2.54
Free Length (mm) 25.4
Rate (gm/mm) 1607.22
Rate (kg/cm) 16.072
Rate (kg/mm) 1.6072
Rate (lb/inch) 90
Rate (gm/cm) 16072.2
Rate (N/cm) 157.62
Rate (N/mm) 15.762
Solid Height (inch) 0.59
Solid Height (cm) 1.499
Solid Height (mm) 14.99
Wire Diameter (inch) 0.058
Wire Diameter (cm) 0.147
Wire Diameter (mm) 1.47
Material Music Wire
Load at Solid Height (gm) 16737.8
Load at Solid Height (kg) 16.738
Load at Solid Height (lb) 36.9
Load at Solid Height (N) 164.14
Ends Squared and Ground
Active Coils 8.15
Direction of Wind Factory Option
Finish Purple Powder Coat
Total Coils 10.15
0.058 0.343 0.001 0.001 0.375 0.188 1 0.033 10.15 90 9 0.59 36.9 0.058 1 0.343 1.47 8.71 0.04 9.53 4.78 25.4 0.838 15.762 14.99 164.14

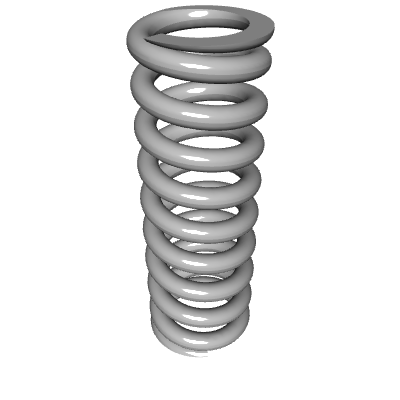

Default View

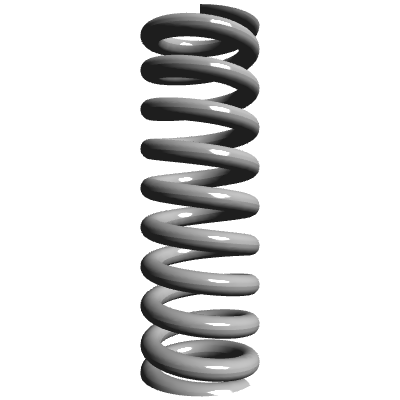

Side view
Top view
Quantity Price
1 - 24 $2.480
25 - 49 $2.190
50 - 99 $1.790
100 - 199 $1.600
200 - 299 $1.303
300 - 399 $1.191
400 - 499 $1.094
500 - 599 $1.010
600 - 699 $0.939
700 - 799 $0.882
800 - 899 $0.840
900 - 999 $0.811
1000 $0.797
