Model Code
LHL

HEFTY™ Die Spring Compression Springs

Heavy Duty Compression Springs

Lee Spring LHL 375AB 02 is a heavy-duty die compression spring from the HEFTY™ Die Spring series, specifically engineered for demanding industrial applications requiring durabiliy and substantial load capacity. This spring features an 0.34-inch outside diameter (8.64 mm) with a 0.375-inch hole diameter (9.53 mm) and extends to a free length of 1.25 inch (31.75 mm), making it ideal for stamping and die applications. Made from Music Wire with a 0.055-inch wire diameter (1.4 mm), the spring delivers a spring rate of 60 lb/inch (10.508 N/mm) through its 9.88 active coils out of 11.88 total coils, with Factory Option wind for predictable deflection behavior. The spring compresses to a solid height of 0.67 inch (17.02 mm) while supporting a maximum load of 34.8 lb (154.8 N) at full compression. The spring has Squared and Ground ends and a Beige Powder Coat finish for optimal die spring performance.

About the HEFTY™ Die Spring Series

HEFTY™ Die Springs offer you the economy of round wire and the durability of chrome silicon or music wire ideally suited for any high stress, heavy load application. Great for many applications such as clutches, brakes, farm machinery and aircraft mechanisms. Available in five different types with different load ratings to fit standard diameters.

HEFTY™ Die Spring Compression Springs have useful applications in various industries, including:

  • Medical devices
  • Firearms
  • Pharmaceutical delivery devices
  • Lighting and electrical control
  • Petro-chemical processes
  • Communication devices
  • Aerospace
  • Testing and measurement equipment
  • Marine applications
  • Automotive
  • Locks and security devices
  • Precision Instruments
  • Hardware

...and many more applications

415361
Product Compression OD 0.34 in, Length 1.25 in, Music Wire
Product Compression OD 8.64 mm, Length 31.75 mm, Music Wire
Part Number LHL 375AB 02
Series HEFTY™ Die Spring
Outside Diameter (inch) 0.34
Outside Diameter (cm) 0.864
Outside Diameter (mm) 8.64
Hole Diameter (inch) 0.375
Hole Diameter (cm) 0.953
Hole Diameter (mm) 9.53
Rod Diameter (inch) 0.188
Rod Diameter (cm) 0.478
Rod Diameter (mm) 4.78
Free Length (inch) 1.25
Free Length (cm) 3.175
Free Length (mm) 31.75
Rate (gm/mm) 1071.48
Rate (kg/cm) 10.715
Rate (kg/mm) 1.0715
Rate (lb/inch) 60
Rate (gm/cm) 10714.8
Rate (N/cm) 105.08
Rate (N/mm) 10.508
Solid Height (inch) 0.67
Solid Height (cm) 1.702
Solid Height (mm) 17.02
Wire Diameter (inch) 0.055
Wire Diameter (cm) 0.14
Wire Diameter (mm) 1.4
Material Music Wire
Load at Solid Height (gm) 15785.3
Load at Solid Height (kg) 15.785
Load at Solid Height (lb) 34.8
Load at Solid Height (N) 154.8
Ends Squared and Ground
Active Coils 9.88
Direction of Wind Factory Option
Finish Beige Powder Coat
Total Coils 11.88
0.055 0.34 0.001 0.001 0.375 0.188 1.25 0.039 11.88 60 6 0.67 34.8 0.055 1.25 0.34 1.4 8.64 0.04 9.53 4.78 31.75 0.991 10.508 17.02 154.8

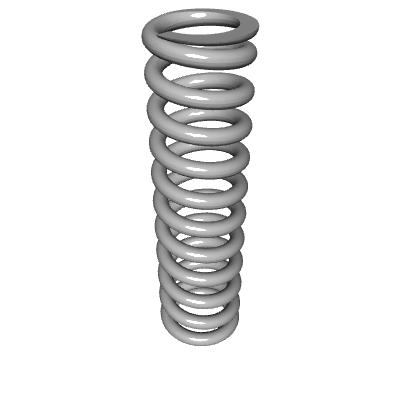

Default View

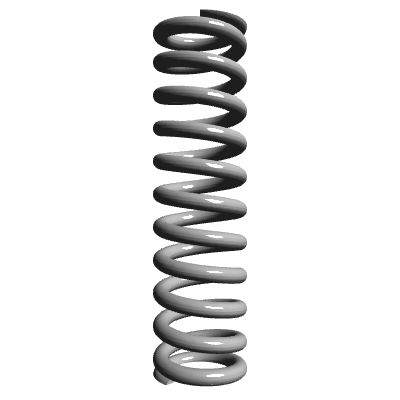

Side view
Top view
Quantity Price
1 - 24 $2.760
25 - 49 $2.410
50 - 99 $2.140
100 - 199 $1.790
200 - 299 $1.329
300 - 399 $1.214
400 - 499 $1.114
500 - 599 $1.028
600 - 699 $0.955
700 - 799 $0.899
800 - 899 $0.856
900 - 999 $0.826
1000 $0.814
