Model Code
LHL

HEFTY™ Die Spring Compression Springs

Heavy Duty Compression Springs

Lee Spring LHL 375A 7B is a heavy-duty die compression spring from the HEFTY™ Die Spring series, specifically engineered for demanding industrial applications requiring durabiliy and substantial load capacity. This spring features an 0.347-inch outside diameter (8.81 mm) with a 0.375-inch hole diameter (9.53 mm) and extends to a free length of 5 inch (127 mm), making it ideal for stamping and die applications. Made from Music Wire with a 0.052-inch wire diameter (1.32 mm), the spring delivers a spring rate of 11 lb/inch (1.926 N/mm) through its 38.84 active coils out of 40.84 total coils, with Factory Option wind for predictable deflection behavior. The spring compresses to a solid height of 2.36 inch (59.94 mm) while supporting a maximum load of 31.641 lb (140.75 N) at full compression. The spring has Squared and Ground ends and a Gray Powder Coat finish for optimal die spring performance.

About the HEFTY™ Die Spring Series

HEFTY™ Die Springs offer you the economy of round wire and the durability of chrome silicon or music wire ideally suited for any high stress, heavy load application. Great for many applications such as clutches, brakes, farm machinery and aircraft mechanisms. Available in five different types with different load ratings to fit standard diameters.

HEFTY™ Die Spring Compression Springs have useful applications in various industries, including:

  • Medical devices
  • Firearms
  • Pharmaceutical delivery devices
  • Lighting and electrical control
  • Petro-chemical processes
  • Communication devices
  • Aerospace
  • Testing and measurement equipment
  • Marine applications
  • Automotive
  • Locks and security devices
  • Precision Instruments
  • Hardware

...and many more applications

415341
Product Compression OD 0.347 in, Length 5 in, Music Wire
Product Compression OD 8.81 mm, Length 127 mm, Music Wire
Part Number LHL 375A 7B
Series HEFTY™ Die Spring
Outside Diameter (inch) 0.347
Outside Diameter (cm) 0.881
Outside Diameter (mm) 8.81
Hole Diameter (inch) 0.375
Hole Diameter (cm) 0.953
Hole Diameter (mm) 9.53
Rod Diameter (inch) 0.188
Rod Diameter (cm) 0.478
Rod Diameter (mm) 4.78
Free Length (inch) 5
Free Length (cm) 12.7
Free Length (mm) 127
Rate (gm/mm) 196.44
Rate (kg/cm) 1.964
Rate (kg/mm) 0.1964
Rate (lb/inch) 11
Rate (gm/cm) 1964.4
Rate (N/cm) 19.26
Rate (N/mm) 1.926
Solid Height (inch) 2.36
Solid Height (cm) 5.994
Solid Height (mm) 59.94
Wire Diameter (inch) 0.052
Wire Diameter (cm) 0.132
Wire Diameter (mm) 1.32
Material Music Wire
Load at Solid Height (gm) 14352.4
Load at Solid Height (kg) 14.352
Load at Solid Height (lb) 31.641
Load at Solid Height (N) 140.75
Ends Squared and Ground
Active Coils 38.84
Direction of Wind Factory Option
Finish Gray Powder Coat
Total Coils 40.84
0.052 0.347 0.001 0.001 0.375 0.188 5 0.175 40.84 11 1.1 2.36 31.641 0.052 5 0.347 1.32 8.81 0.04 9.53 4.78 127 4.445 1.926 59.94 140.75

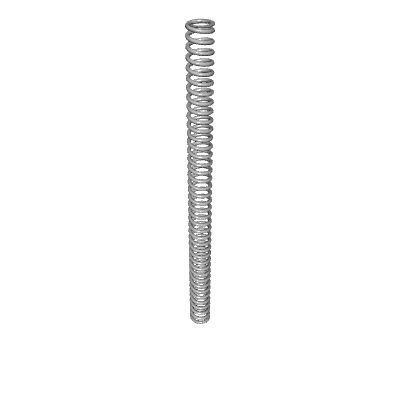

Default View

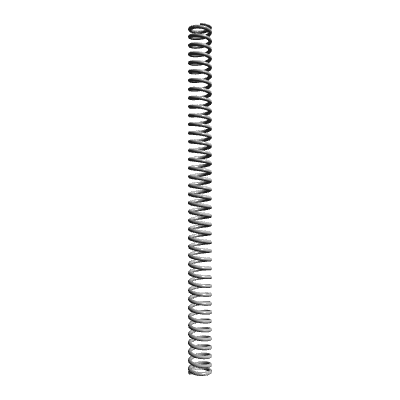

Side view
