Model Code
LHL

HEFTY™ Die Spring Compression Springs

Heavy Duty Compression Springs

Lee Spring LHL 2000D 09 is a heavy-duty die compression spring from the HEFTY™ Die Spring series, specifically engineered for demanding industrial applications requiring durabiliy and substantial load capacity. This spring features an 1.96-inch outside diameter (49.78 mm) with a 2-inch hole diameter (50.8 mm) and extends to a free length of 8 inch (203.2 mm), making it ideal for stamping and die applications. Made from Oil Tempered Chrome Silicon with a 0.393-inch wire diameter (9.98 mm), the spring delivers a spring rate of 734 lb/inch (128.548 N/mm) through its 12.14 active coils out of 14.14 total coils, with Factory Option wind for predictable deflection behavior. The spring compresses to a solid height of 5.558 inch (141.17 mm) while supporting a maximum load of 1792.7 lb (7974.33 N) at full compression. The spring has Squared and Ground ends and a Orange Powder Coat finish for optimal die spring performance.

About the HEFTY™ Die Spring Series

HEFTY™ Die Springs offer you the economy of round wire and the durability of chrome silicon or music wire ideally suited for any high stress, heavy load application. Great for many applications such as clutches, brakes, farm machinery and aircraft mechanisms. Available in five different types with different load ratings to fit standard diameters.

HEFTY™ Die Spring Compression Springs have useful applications in various industries, including:

  • Medical devices
  • Firearms
  • Pharmaceutical delivery devices
  • Lighting and electrical control
  • Petro-chemical processes
  • Communication devices
  • Aerospace
  • Testing and measurement equipment
  • Marine applications
  • Automotive
  • Locks and security devices
  • Precision Instruments
  • Hardware

...and many more applications

419221
Product Compression OD 1.96 in, Length 8 in, Oil Tempered Chrome Silicon
Product Compression OD 49.78 mm, Length 203.2 mm, Oil Tempered Chrome Silicon
Part Number LHL 2000D 09
Series HEFTY™ Die Spring
Outside Diameter (inch) 1.96
Outside Diameter (cm) 4.978
Outside Diameter (mm) 49.78
Hole Diameter (inch) 2
Hole Diameter (cm) 5.08
Hole Diameter (mm) 50.8
Rod Diameter (inch) 1
Rod Diameter (cm) 2.54
Rod Diameter (mm) 25.4
Free Length (inch) 8
Free Length (cm) 20.32
Free Length (mm) 203.2
Rate (gm/mm) 13107.8
Rate (kg/cm) 131.078
Rate (kg/mm) 13.1078
Rate (lb/inch) 734
Rate (gm/cm) 131078
Rate (N/cm) 1285.48
Rate (N/mm) 128.548
Solid Height (inch) 5.558
Solid Height (cm) 14.117
Solid Height (mm) 141.17
Wire Diameter (inch) 0.393
Wire Diameter (cm) 0.998
Wire Diameter (mm) 9.98
Material Oil Tempered Chrome Silicon
Load at Solid Height (gm) 813169
Load at Solid Height (kg) 813.169
Load at Solid Height (lb) 1792.7
Load at Solid Height (N) 7974.33
Ends Squared and Ground
Active Coils 12.14
Direction of Wind Factory Option
Finish Orange Powder Coat
Total Coils 14.14
0.393 1.96 0.001 0.001 2 1 8 0.205 14.14 734 73.4 5.558 1792.7 0.393 8 1.96 9.98 49.78 0.04 50.8 25.4 203.2 5.207 128.548 141.17 7974.33

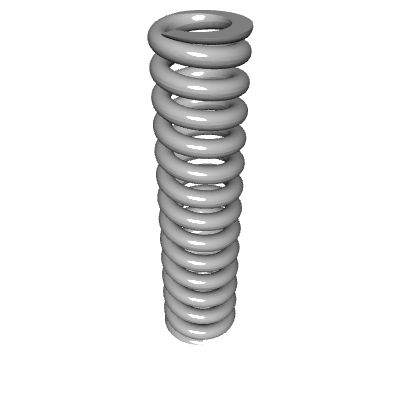

Default View
Side view

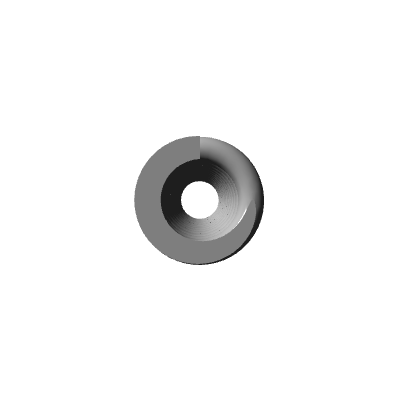

Top view
