Model Code
LHL

HEFTY™ Die Spring Compression Springs

Heavy Duty Compression Springs

Lee Spring LHL 2000D 05 is a heavy-duty die compression spring from the HEFTY™ Die Spring series, specifically engineered for demanding industrial applications requiring durabiliy and substantial load capacity. This spring features an 1.96-inch outside diameter (49.78 mm) with a 2-inch hole diameter (50.8 mm) and extends to a free length of 4.5 inch (114.3 mm), making it ideal for stamping and die applications. Made from Oil Tempered Chrome Silicon with a 0.393-inch wire diameter (9.98 mm), the spring delivers a spring rate of 1425 lb/inch (249.565 N/mm) through its 6.25 active coils out of 8.25 total coils, with Factory Option wind for predictable deflection behavior. The spring compresses to a solid height of 3.26 inch (82.8 mm) while supporting a maximum load of 1767 lb (7860.01 N) at full compression. The spring has Squared and Ground ends and a Orange Powder Coat finish for optimal die spring performance.

About the HEFTY™ Die Spring Series

HEFTY™ Die Springs offer you the economy of round wire and the durability of chrome silicon or music wire ideally suited for any high stress, heavy load application. Great for many applications such as clutches, brakes, farm machinery and aircraft mechanisms. Available in five different types with different load ratings to fit standard diameters.

HEFTY™ Die Spring Compression Springs have useful applications in various industries, including:

  • Medical devices
  • Firearms
  • Pharmaceutical delivery devices
  • Lighting and electrical control
  • Petro-chemical processes
  • Communication devices
  • Aerospace
  • Testing and measurement equipment
  • Marine applications
  • Automotive
  • Locks and security devices
  • Precision Instruments
  • Hardware

...and many more applications

419181
Product Compression OD 1.96 in, Length 4.5 in, Oil Tempered Chrome Silicon
Product Compression OD 49.78 mm, Length 114.3 mm, Oil Tempered Chrome Silicon
Part Number LHL 2000D 05
Series HEFTY™ Die Spring
Outside Diameter (inch) 1.96
Outside Diameter (cm) 4.978
Outside Diameter (mm) 49.78
Hole Diameter (inch) 2
Hole Diameter (cm) 5.08
Hole Diameter (mm) 50.8
Rod Diameter (inch) 1
Rod Diameter (cm) 2.54
Rod Diameter (mm) 25.4
Free Length (inch) 4.5
Free Length (cm) 11.43
Free Length (mm) 114.3
Rate (gm/mm) 25447.7
Rate (kg/cm) 254.477
Rate (kg/mm) 25.4477
Rate (lb/inch) 1425
Rate (gm/cm) 254476
Rate (N/cm) 2495.65
Rate (N/mm) 249.565
Solid Height (inch) 3.26
Solid Height (cm) 8.28
Solid Height (mm) 82.8
Wire Diameter (inch) 0.393
Wire Diameter (cm) 0.998
Wire Diameter (mm) 9.98
Material Oil Tempered Chrome Silicon
Load at Solid Height (gm) 801511
Load at Solid Height (kg) 801.511
Load at Solid Height (lb) 1767
Load at Solid Height (N) 7860.01
Ends Squared and Ground
Active Coils 6.25
Direction of Wind Factory Option
Finish Orange Powder Coat
Total Coils 8.25
0.393 1.96 0.001 0.001 2 1 4.5 0.156 8.25 1425 142.5 3.26 1767 0.393 4.5 1.96 9.98 49.78 0.04 50.8 25.4 114.3 3.962 249.565 82.8 7860.01

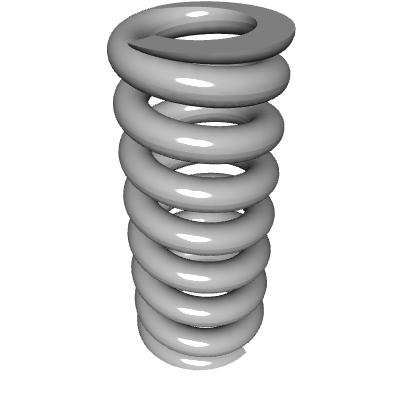

Default View

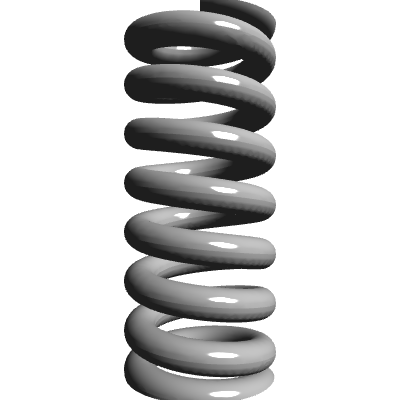

Side view

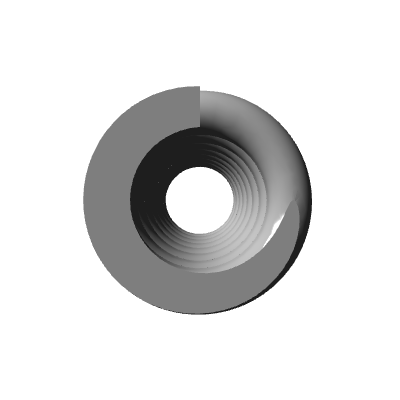

Top view
