Model Code
LHL

HEFTY™ Die Spring Compression Springs

Heavy Duty Compression Springs

Lee Spring LHL 2000C 07 is a heavy-duty die compression spring from the HEFTY™ Die Spring series, specifically engineered for demanding industrial applications requiring durabiliy and substantial load capacity. This spring features an 1.87-inch outside diameter (47.5 mm) with a 2-inch hole diameter (50.8 mm) and extends to a free length of 5.5 inch (139.7 mm), making it ideal for stamping and die applications. Made from Oil Tempered Chrome Silicon with a 0.362-inch wire diameter (9.19 mm), the spring delivers a spring rate of 875 lb/inch (153.241 N/mm) through its 8.23 active coils out of 10.23 total coils, with Factory Option wind for predictable deflection behavior. The spring compresses to a solid height of 3.72 inch (94.49 mm) while supporting a maximum load of 1557.5 lb (6928.11 N) at full compression. The spring has Squared and Ground ends and a Black Powder Coat finish for optimal die spring performance.

About the HEFTY™ Die Spring Series

HEFTY™ Die Springs offer you the economy of round wire and the durability of chrome silicon or music wire ideally suited for any high stress, heavy load application. Great for many applications such as clutches, brakes, farm machinery and aircraft mechanisms. Available in five different types with different load ratings to fit standard diameters.

HEFTY™ Die Spring Compression Springs have useful applications in various industries, including:

  • Medical devices
  • Firearms
  • Pharmaceutical delivery devices
  • Lighting and electrical control
  • Petro-chemical processes
  • Communication devices
  • Aerospace
  • Testing and measurement equipment
  • Marine applications
  • Automotive
  • Locks and security devices
  • Precision Instruments
  • Hardware

...and many more applications

419101
Product Compression OD 1.87 in, Length 5.5 in, Oil Tempered Chrome Silicon
Product Compression OD 47.5 mm, Length 139.7 mm, Oil Tempered Chrome Silicon
Part Number LHL 2000C 07
Series HEFTY™ Die Spring
Outside Diameter (inch) 1.87
Outside Diameter (cm) 4.75
Outside Diameter (mm) 47.5
Hole Diameter (inch) 2
Hole Diameter (cm) 5.08
Hole Diameter (mm) 50.8
Rod Diameter (inch) 1
Rod Diameter (cm) 2.54
Rod Diameter (mm) 25.4
Free Length (inch) 5.5
Free Length (cm) 13.97
Free Length (mm) 139.7
Rate (gm/mm) 15625.8
Rate (kg/cm) 156.258
Rate (kg/mm) 15.6258
Rate (lb/inch) 875
Rate (gm/cm) 156258
Rate (N/cm) 1532.41
Rate (N/mm) 153.241
Solid Height (inch) 3.72
Solid Height (cm) 9.449
Solid Height (mm) 94.49
Wire Diameter (inch) 0.362
Wire Diameter (cm) 0.919
Wire Diameter (mm) 9.19
Material Oil Tempered Chrome Silicon
Load at Solid Height (gm) 706482
Load at Solid Height (kg) 706.482
Load at Solid Height (lb) 1557.5
Load at Solid Height (N) 6928.11
Ends Squared and Ground
Active Coils 8.23
Direction of Wind Factory Option
Finish Black Powder Coat
Total Coils 10.23
0.362 1.87 0.001 0.001 2 1 5.5 0.175 10.23 875 87.5 3.72 1557.5 0.362 5.5 1.87 9.19 47.5 0.04 50.8 25.4 139.7 4.445 153.241 94.49 6928.11

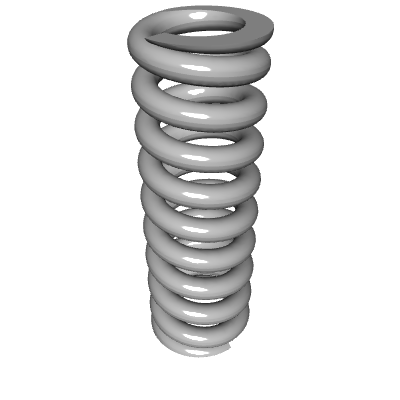

Default View

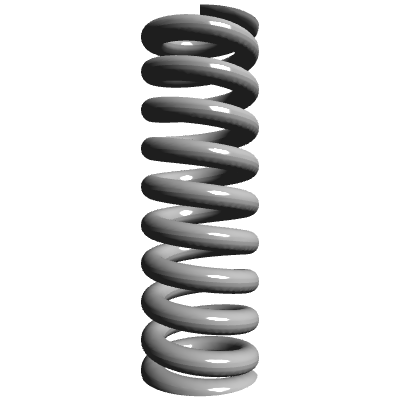

Side view
Top view
Quantity Price
1 - 24 $31.610
25 - 49 $29.380
50 - 99 $27.460
100 - 199 $24.960
200 - 299 $20.732
300 - 399 $18.935
400 - 499 $17.367
500 $16.019
