Model Code
LHL

HEFTY™ Die Spring Compression Springs

Heavy Duty Compression Springs

Lee Spring LHL 2000A 06 is a heavy-duty die compression spring from the HEFTY™ Die Spring series, specifically engineered for demanding industrial applications requiring durabiliy and substantial load capacity. This spring features an 1.83-inch outside diameter (46.48 mm) with a 2-inch hole diameter (50.8 mm) and extends to a free length of 5 inch (127 mm), making it ideal for stamping and die applications. Made from Oil Tempered Chrome Silicon with a 0.262-inch wire diameter (6.65 mm), the spring delivers a spring rate of 235 lb/inch (41.156 N/mm) through its 7.48 active coils out of 9.48 total coils, with Factory Option wind for predictable deflection behavior. The spring compresses to a solid height of 2.4 inch (60.96 mm) while supporting a maximum load of 611 lb (2717.86 N) at full compression. The spring has Squared and Ground ends and a Gray Powder Coat finish for optimal die spring performance.

About the HEFTY™ Die Spring Series

HEFTY™ Die Springs offer you the economy of round wire and the durability of chrome silicon or music wire ideally suited for any high stress, heavy load application. Great for many applications such as clutches, brakes, farm machinery and aircraft mechanisms. Available in five different types with different load ratings to fit standard diameters.

HEFTY™ Die Spring Compression Springs have useful applications in various industries, including:

  • Medical devices
  • Firearms
  • Pharmaceutical delivery devices
  • Lighting and electrical control
  • Petro-chemical processes
  • Communication devices
  • Aerospace
  • Testing and measurement equipment
  • Marine applications
  • Automotive
  • Locks and security devices
  • Precision Instruments
  • Hardware

...and many more applications

418811
Product Compression OD 1.83 in, Length 5 in, Oil Tempered Chrome Silicon
Product Compression OD 46.48 mm, Length 127 mm, Oil Tempered Chrome Silicon
Part Number LHL 2000A 06
Series HEFTY™ Die Spring
Outside Diameter (inch) 1.83
Outside Diameter (cm) 4.648
Outside Diameter (mm) 46.48
Hole Diameter (inch) 2
Hole Diameter (cm) 5.08
Hole Diameter (mm) 50.8
Rod Diameter (inch) 1
Rod Diameter (cm) 2.54
Rod Diameter (mm) 25.4
Free Length (inch) 5
Free Length (cm) 12.7
Free Length (mm) 127
Rate (gm/mm) 4196.63
Rate (kg/cm) 41.966
Rate (kg/mm) 4.1966
Rate (lb/inch) 235
Rate (gm/cm) 41966.3
Rate (N/cm) 411.56
Rate (N/mm) 41.156
Solid Height (inch) 2.4
Solid Height (cm) 6.096
Solid Height (mm) 60.96
Wire Diameter (inch) 0.262
Wire Diameter (cm) 0.665
Wire Diameter (mm) 6.65
Material Oil Tempered Chrome Silicon
Load at Solid Height (gm) 277150
Load at Solid Height (kg) 277.15
Load at Solid Height (lb) 611
Load at Solid Height (N) 2717.86
Ends Squared and Ground
Active Coils 7.48
Direction of Wind Factory Option
Finish Gray Powder Coat
Total Coils 9.48
0.262 1.83 0.001 0.001 2 1 5 0.175 9.48 235 23.5 2.4 611 0.262 5 1.83 6.65 46.48 0.04 50.8 25.4 127 4.445 41.156 60.96 2717.86

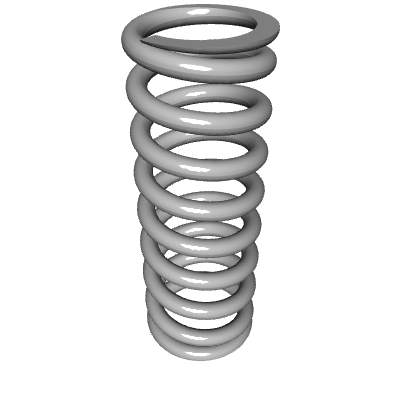

Default View

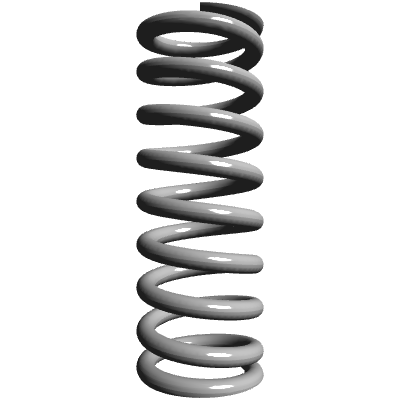

Side view
