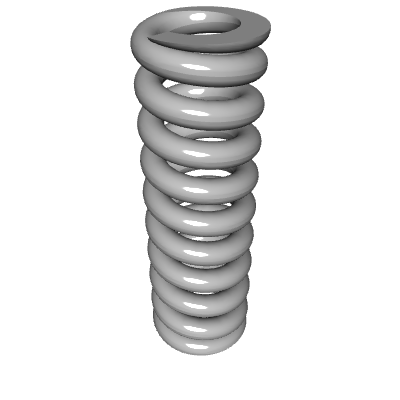

Lee Spring LHL 1500D 06 is a heavy-duty die compression spring from the HEFTY™ Die Spring series, specifically engineered for demanding industrial applications requiring durabiliy and substantial load capacity. This spring features an 1.465-inch outside diameter (37.21 mm) with a 1.5-inch hole diameter (38.1 mm) and extends to a free length of 4.5 inch (114.3 mm), making it ideal for stamping and die applications. Made from Oil Tempered Chrome Silicon with a 0.312-inch wire diameter (7.92 mm), the spring delivers a spring rate of 1045 lb/inch (183.014 N/mm) through its 8.5 active coils out of 10.5 total coils, with Factory Option wind for predictable deflection behavior. The spring compresses to a solid height of 3.29 inch (83.57 mm) while supporting a maximum load of 1264.5 lb (5624.78 N) at full compression. The spring has Squared and Ground ends and a Orange Powder Coat finish for optimal die spring performance.

About the HEFTY™ Die Spring Series

HEFTY™ Die Springs offer you the economy of round wire and the durability of chrome silicon or music wire ideally suited for any high stress, heavy load application. Great for many applications such as clutches, brakes, farm machinery and aircraft mechanisms. Available in five different types with different load ratings to fit standard diameters.

HEFTY™ Die Spring Compression Springs have useful applications in various industries, including:

  • Medical devices
  • Firearms
  • Pharmaceutical delivery devices
  • Lighting and electrical control
  • Petro-chemical processes
  • Communication devices
  • Aerospace
  • Testing and measurement equipment
  • Marine applications
  • Automotive
  • Locks and security devices
  • Precision Instruments
  • Hardware

...and many more applications

418711
Product Compression OD 1.465 in, Length 4.5 in, Oil Tempered Chrome Silicon
Product Compression OD 37.21 mm, Length 114.3 mm, Oil Tempered Chrome Silicon
Part Number LHL 1500D 06
Series HEFTY™ Die Spring
Outside Diameter (inch) 1.465
Outside Diameter (cm) 3.721
Outside Diameter (mm) 37.21
Hole Diameter (inch) 1.5
Hole Diameter (cm) 3.81
Hole Diameter (mm) 38.1
Rod Diameter (inch) 0.75
Rod Diameter (cm) 1.905
Rod Diameter (mm) 19.05
Free Length (inch) 4.5
Free Length (cm) 11.43
Free Length (mm) 114.3
Rate (gm/mm) 18661.6
Rate (kg/cm) 186.616
Rate (kg/mm) 18.6616
Rate (lb/inch) 1045
Rate (gm/cm) 186616
Rate (N/cm) 1830.14
Rate (N/mm) 183.014
Solid Height (inch) 3.29
Solid Height (cm) 8.357
Solid Height (mm) 83.57
Wire Diameter (inch) 0.312
Wire Diameter (cm) 0.792
Wire Diameter (mm) 7.92
Material Oil Tempered Chrome Silicon
Load at Solid Height (gm) 573577
Load at Solid Height (kg) 573.577
Load at Solid Height (lb) 1264.5
Load at Solid Height (N) 5624.78
Ends Squared and Ground
Active Coils 8.5
Direction of Wind Factory Option
Finish Orange Powder Coat
Total Coils 10.5
0.312 1.465 0.001 0.001 1.5 0.75 4.5 0.156 10.5 1045 104.5 3.29 1264.5 0.312 4.5 1.465 7.92 37.21 0.04 38.1 19.05 114.3 3.962 183.014 83.57 5624.78
Default View

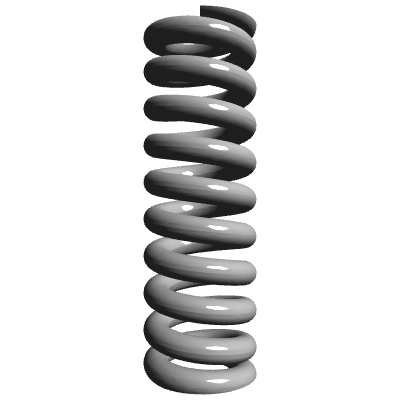

Side view

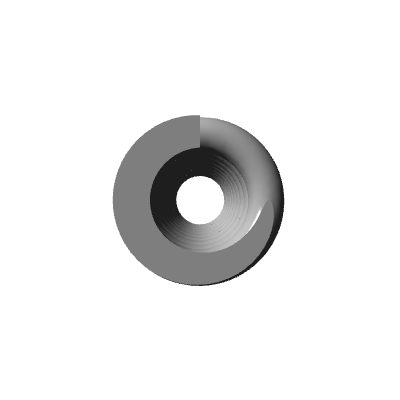

Top view
