HEFTY™ Die Spring Compression Springs

Heavy Duty Compression Springs

Lee Spring LHL 1500C 08 is a heavy-duty die compression spring from the HEFTY™ Die Spring series, specifically engineered for demanding industrial applications requiring durabiliy and substantial load capacity. This spring features an 1.415-inch outside diameter (35.94 mm) with a 1.5-inch hole diameter (38.1 mm) and extends to a free length of 5.5 inch (139.7 mm), making it ideal for stamping and die applications. Made from Oil Tempered Chrome Silicon with a 0.283-inch wire diameter (7.19 mm), the spring delivers a spring rate of 570 lb/inch (99.826 N/mm) through its 11.15 active coils out of 13.15 total coils, with Factory Option wind for predictable deflection behavior. The spring compresses to a solid height of 3.74 inch (95 mm) while supporting a maximum load of 1003.2 lb (4462.46 N) at full compression. The spring has Squared and Ground ends and a Black Powder Coat finish for optimal die spring performance.

About the HEFTY™ Die Spring Series

HEFTY™ Die Springs offer you the economy of round wire and the durability of chrome silicon or music wire ideally suited for any high stress, heavy load application. Great for many applications such as clutches, brakes, farm machinery and aircraft mechanisms. Available in five different types with different load ratings to fit standard diameters.

HEFTY™ Die Spring Compression Springs have useful applications in various industries, including:

  • Medical devices
  • Firearms
  • Pharmaceutical delivery devices
  • Lighting and electrical control
  • Petro-chemical processes
  • Communication devices
  • Aerospace
  • Testing and measurement equipment
  • Marine applications
  • Automotive
  • Locks and security devices
  • Precision Instruments
  • Hardware

...and many more applications

418621
Product Compression OD 1.415 in, Length 5.5 in, Oil Tempered Chrome Silicon
Product Compression OD 35.94 mm, Length 139.7 mm, Oil Tempered Chrome Silicon
Part Number LHL 1500C 08
Series HEFTY™ Die Spring
Outside Diameter (inch) 1.415
Outside Diameter (cm) 3.594
Outside Diameter (mm) 35.94
Hole Diameter (inch) 1.5
Hole Diameter (cm) 3.81
Hole Diameter (mm) 38.1
Rod Diameter (inch) 0.75
Rod Diameter (cm) 1.905
Rod Diameter (mm) 19.05
Free Length (inch) 5.5
Free Length (cm) 13.97
Free Length (mm) 139.7
Rate (gm/mm) 10179.1
Rate (kg/cm) 101.791
Rate (kg/mm) 10.1791
Rate (lb/inch) 570
Rate (gm/cm) 101791
Rate (N/cm) 998.26
Rate (N/mm) 99.826
Solid Height (inch) 3.74
Solid Height (cm) 9.5
Solid Height (mm) 95
Wire Diameter (inch) 0.283
Wire Diameter (cm) 0.719
Wire Diameter (mm) 7.19
Material Oil Tempered Chrome Silicon
Load at Solid Height (gm) 455052
Load at Solid Height (kg) 455.052
Load at Solid Height (lb) 1003.2
Load at Solid Height (N) 4462.46
Ends Squared and Ground
Active Coils 11.15
Direction of Wind Factory Option
Finish Black Powder Coat
Total Coils 13.15
0.283 1.415 0.001 0.001 1.5 0.75 5.5 0.175 13.15 570 57 3.74 1003.2 0.283 5.5 1.415 7.19 35.94 0.04 38.1 19.05 139.7 4.445 99.826 95 4462.46

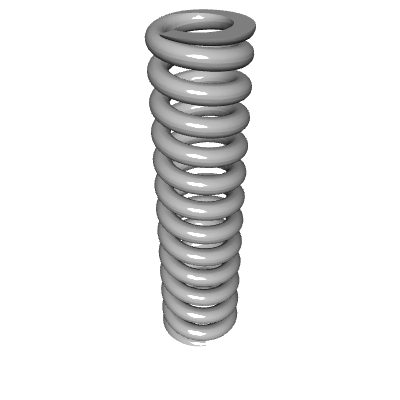

Default View
Side view

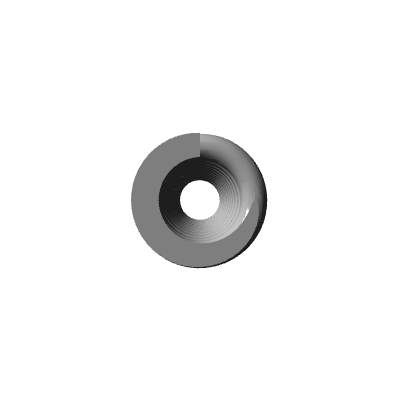

Top view
