Lee Spring LHL 1500A 03 is a heavy-duty die compression spring from the HEFTY™ Die Spring series, specifically engineered for demanding industrial applications requiring durabiliy and substantial load capacity. This spring features an 1.39-inch outside diameter (35.31 mm) with a 1.5-inch hole diameter (38.1 mm) and extends to a free length of 3 inch (76.2 mm), making it ideal for stamping and die applications. Made from Oil Tempered Chrome Silicon with a 0.195-inch wire diameter (4.95 mm), the spring delivers a spring rate of 220 lb/inch (38.529 N/mm) through its 5.54 active coils out of 7.54 total coils, with Factory Option wind for predictable deflection behavior. The spring compresses to a solid height of 1.48 inch (37.59 mm) while supporting a maximum load of 334.4 lb (1487.49 N) at full compression. The spring has Squared and Ground ends and a Gray Powder Coat finish for optimal die spring performance.

About the HEFTY™ Die Spring Series

HEFTY™ Die Springs offer you the economy of round wire and the durability of chrome silicon or music wire ideally suited for any high stress, heavy load application. Great for many applications such as clutches, brakes, farm machinery and aircraft mechanisms. Available in five different types with different load ratings to fit standard diameters.

HEFTY™ Die Spring Compression Springs have useful applications in various industries, including:

  • Medical devices
  • Firearms
  • Pharmaceutical delivery devices
  • Lighting and electrical control
  • Petro-chemical processes
  • Communication devices
  • Aerospace
  • Testing and measurement equipment
  • Marine applications
  • Automotive
  • Locks and security devices
  • Precision Instruments
  • Hardware

...and many more applications

418261
Product Compression OD 1.39 in, Length 3 in, Oil Tempered Chrome Silicon
Product Compression OD 35.31 mm, Length 76.2 mm, Oil Tempered Chrome Silicon
Part Number LHL 1500A 03
Series HEFTY™ Die Spring
Outside Diameter (inch) 1.39
Outside Diameter (cm) 3.531
Outside Diameter (mm) 35.31
Hole Diameter (inch) 1.5
Hole Diameter (cm) 3.81
Hole Diameter (mm) 38.1
Rod Diameter (inch) 0.75
Rod Diameter (cm) 1.905
Rod Diameter (mm) 19.05
Free Length (inch) 3
Free Length (cm) 7.62
Free Length (mm) 76.2
Rate (gm/mm) 3928.76
Rate (kg/cm) 39.288
Rate (kg/mm) 3.9288
Rate (lb/inch) 220
Rate (gm/cm) 39287.6
Rate (N/cm) 385.29
Rate (N/mm) 38.529
Solid Height (inch) 1.48
Solid Height (cm) 3.759
Solid Height (mm) 37.59
Wire Diameter (inch) 0.195
Wire Diameter (cm) 0.495
Wire Diameter (mm) 4.95
Material Oil Tempered Chrome Silicon
Load at Solid Height (gm) 151684
Load at Solid Height (kg) 151.684
Load at Solid Height (lb) 334.4
Load at Solid Height (N) 1487.49
Ends Squared and Ground
Active Coils 5.54
Direction of Wind Factory Option
Finish Gray Powder Coat
Total Coils 7.54
0.195 1.39 0.001 0.001 1.5 0.75 3 0.105 7.54 220 22 1.48 334.4 0.195 3 1.39 4.95 35.31 0.04 38.1 19.05 76.2 2.667 38.529 37.59 1487.49

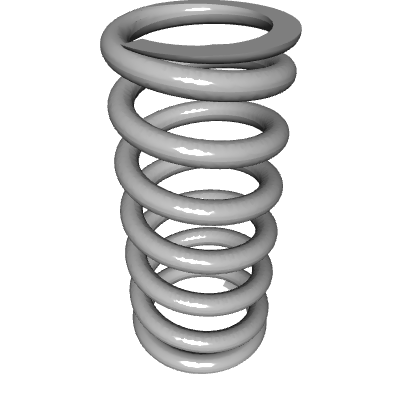

Default View

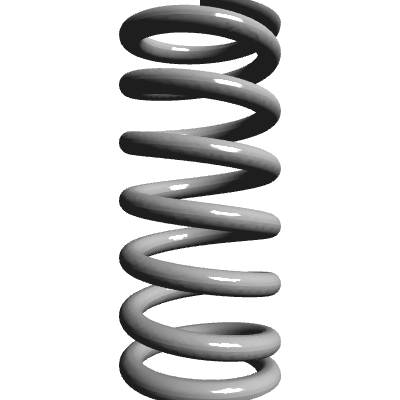

Side view

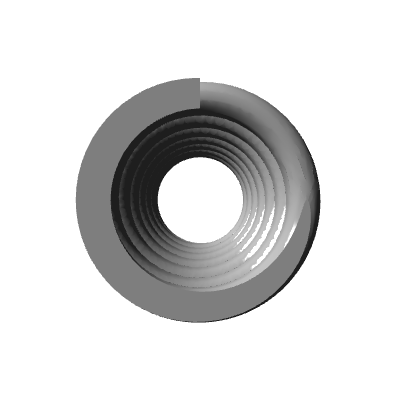

Top view
Quantity Price
1 - 24 $11.710
25 - 49 $10.220
50 - 99 $8.890
100 - 199 $7.540
200 - 299 $6.220
300 - 399 $5.682
400 - 499 $5.210
500 - 599 $4.807
600 - 699 $4.062
700 - 799 $3.755
800 - 899 $3.523
900 - 999 $3.370
1000 $3.290
