Model Code
LHL

HEFTY™ Die Spring Compression Springs

Heavy Duty Compression Springs

Lee Spring LHL 1500A 01 is a heavy-duty die compression spring from the HEFTY™ Die Spring series, specifically engineered for demanding industrial applications requiring durabiliy and substantial load capacity. This spring features an 1.43-inch outside diameter (36.32 mm) with a 1.5-inch hole diameter (38.1 mm) and extends to a free length of 2 inch (50.8 mm), making it ideal for stamping and die applications. Made from Oil Tempered Chrome Silicon with a 0.187-inch wire diameter (4.75 mm), the spring delivers a spring rate of 280 lb/inch (49.037 N/mm) through its 3.27 active coils out of 5.27 total coils, with Factory Option wind for predictable deflection behavior. The spring compresses to a solid height of 0.99 inch (25.15 mm) while supporting a maximum load of 282.8 lb (1257.96 N) at full compression. The spring has Squared and Ground ends and a Gray Powder Coat finish for optimal die spring performance.

About the HEFTY™ Die Spring Series

HEFTY™ Die Springs offer you the economy of round wire and the durability of chrome silicon or music wire ideally suited for any high stress, heavy load application. Great for many applications such as clutches, brakes, farm machinery and aircraft mechanisms. Available in five different types with different load ratings to fit standard diameters.

HEFTY™ Die Spring Compression Springs have useful applications in various industries, including:

  • Medical devices
  • Firearms
  • Pharmaceutical delivery devices
  • Lighting and electrical control
  • Petro-chemical processes
  • Communication devices
  • Aerospace
  • Testing and measurement equipment
  • Marine applications
  • Automotive
  • Locks and security devices
  • Precision Instruments
  • Hardware

...and many more applications

418241
Product Compression OD 1.43 in, Length 2 in, Oil Tempered Chrome Silicon
Product Compression OD 36.32 mm, Length 50.8 mm, Oil Tempered Chrome Silicon
Part Number LHL 1500A 01
Series HEFTY™ Die Spring
Outside Diameter (inch) 1.43
Outside Diameter (cm) 3.632
Outside Diameter (mm) 36.32
Hole Diameter (inch) 1.5
Hole Diameter (cm) 3.81
Hole Diameter (mm) 38.1
Rod Diameter (inch) 0.75
Rod Diameter (cm) 1.905
Rod Diameter (mm) 19.05
Free Length (inch) 2
Free Length (cm) 5.08
Free Length (mm) 50.8
Rate (gm/mm) 5000.24
Rate (kg/cm) 50.002
Rate (kg/mm) 5.0002
Rate (lb/inch) 280
Rate (gm/cm) 50002.4
Rate (N/cm) 490.37
Rate (N/mm) 49.037
Solid Height (inch) 0.99
Solid Height (cm) 2.515
Solid Height (mm) 25.15
Wire Diameter (inch) 0.187
Wire Diameter (cm) 0.475
Wire Diameter (mm) 4.75
Material Oil Tempered Chrome Silicon
Load at Solid Height (gm) 128278
Load at Solid Height (kg) 128.278
Load at Solid Height (lb) 282.8
Load at Solid Height (N) 1257.96
Ends Squared and Ground
Active Coils 3.27
Direction of Wind Factory Option
Finish Gray Powder Coat
Total Coils 5.27
0.187 1.43 0.001 0.001 1.5 0.75 2 0.062 5.27 280 28 0.99 282.8 0.187 2 1.43 4.75 36.32 0.04 38.1 19.05 50.8 1.575 49.037 25.15 1257.96
Default View

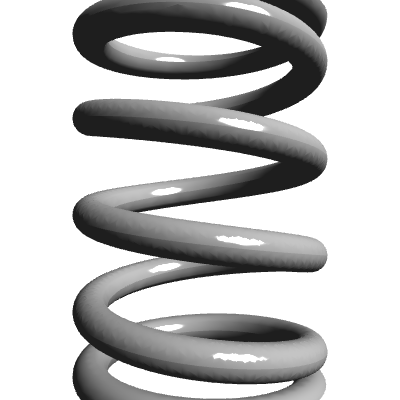

Side view

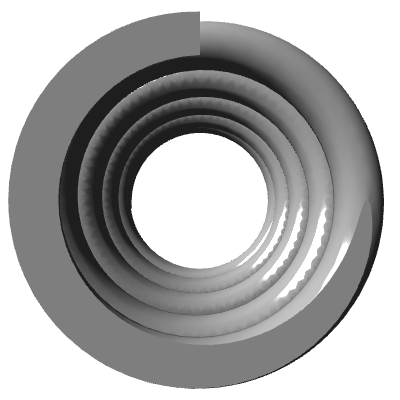

Top view
Quantity Price
1 - 24 $10.190
25 - 49 $8.580
50 - 99 $7.370
100 - 199 $6.120
200 - 299 $5.042
300 - 399 $4.604
400 - 499 $4.220
500 - 599 $3.895
600 - 699 $3.625
700 - 799 $3.404
800 - 899 $3.242
900 - 999 $3.134
1000 $3.081
