Lee Spring LHL 1250D 06 is a heavy-duty die compression spring from the HEFTY™ Die Spring series, specifically engineered for demanding industrial applications requiring durabiliy and substantial load capacity. This spring features an 1.195-inch outside diameter (30.35 mm) with a 1.25-inch hole diameter (31.75 mm) and extends to a free length of 4.5 inch (114.3 mm), making it ideal for stamping and die applications. Made from Oil Tempered Chrome Silicon with a 0.262-inch wire diameter (6.65 mm), the spring delivers a spring rate of 784 lb/inch (137.304 N/mm) through its 10.64 active coils out of 12.64 total coils, with Factory Option wind for predictable deflection behavior. The spring compresses to a solid height of 3.32 inch (84.33 mm) while supporting a maximum load of 925.1 lb (4115.05 N) at full compression. The spring has Squared and Ground ends and a Orange Powder Coat finish for optimal die spring performance.

About the HEFTY™ Die Spring Series

HEFTY™ Die Springs offer you the economy of round wire and the durability of chrome silicon or music wire ideally suited for any high stress, heavy load application. Great for many applications such as clutches, brakes, farm machinery and aircraft mechanisms. Available in five different types with different load ratings to fit standard diameters.

HEFTY™ Die Spring Compression Springs have useful applications in various industries, including:

  • Medical devices
  • Firearms
  • Pharmaceutical delivery devices
  • Lighting and electrical control
  • Petro-chemical processes
  • Communication devices
  • Aerospace
  • Testing and measurement equipment
  • Marine applications
  • Automotive
  • Locks and security devices
  • Precision Instruments
  • Hardware

...and many more applications

418191
Product Compression OD 1.195 in, Length 4.5 in, Oil Tempered Chrome Silicon
Product Compression OD 30.35 mm, Length 114.3 mm, Oil Tempered Chrome Silicon
Part Number LHL 1250D 06
Series HEFTY™ Die Spring
Outside Diameter (inch) 1.195
Outside Diameter (cm) 3.035
Outside Diameter (mm) 30.35
Hole Diameter (inch) 1.25
Hole Diameter (cm) 3.175
Hole Diameter (mm) 31.75
Rod Diameter (inch) 0.625
Rod Diameter (cm) 1.588
Rod Diameter (mm) 15.88
Free Length (inch) 4.5
Free Length (cm) 11.43
Free Length (mm) 114.3
Rate (gm/mm) 14000.7
Rate (kg/cm) 140.007
Rate (kg/mm) 14.0007
Rate (lb/inch) 784
Rate (gm/cm) 140007
Rate (N/cm) 1373.04
Rate (N/mm) 137.304
Solid Height (inch) 3.32
Solid Height (cm) 8.433
Solid Height (mm) 84.33
Wire Diameter (inch) 0.262
Wire Diameter (cm) 0.665
Wire Diameter (mm) 6.65
Material Oil Tempered Chrome Silicon
Load at Solid Height (gm) 419625
Load at Solid Height (kg) 419.625
Load at Solid Height (lb) 925.1
Load at Solid Height (N) 4115.05
Ends Squared and Ground
Active Coils 10.64
Direction of Wind Factory Option
Finish Orange Powder Coat
Total Coils 12.64
0.262 1.195 0.001 0.001 1.25 0.625 4.5 0.156 12.64 784 78.4 3.32 925.1 0.262 4.5 1.195 6.65 30.35 0.04 31.75 15.88 114.3 3.962 137.304 84.33 4115.05

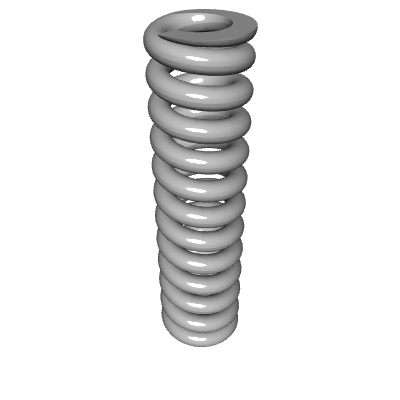

Default View
Side view

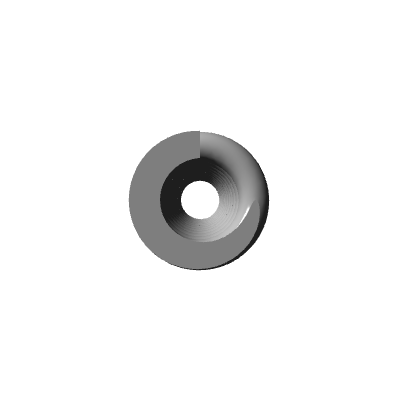

Top view
