Model Code
LHL

HEFTY™ Die Spring Compression Springs

Heavy Duty Compression Springs

Lee Spring LHL 1250D 01 is a heavy-duty die compression spring from the HEFTY™ Die Spring series, specifically engineered for demanding industrial applications requiring durabiliy and substantial load capacity. This spring features an 1.205-inch outside diameter (30.61 mm) with a 1.25-inch hole diameter (31.75 mm) and extends to a free length of 2 inch (50.8 mm), making it ideal for stamping and die applications. Made from Oil Tempered Chrome Silicon with a 0.25-inch wire diameter (6.35 mm), the spring delivers a spring rate of 1625 lb/inch (284.591 N/mm) through its 3.97 active coils out of 5.97 total coils, with Factory Option wind for predictable deflection behavior. The spring compresses to a solid height of 1.5 inch (38.1 mm) while supporting a maximum load of 812.5 lb (3614.18 N) at full compression. The spring has Squared and Ground ends and a Orange Powder Coat finish for optimal die spring performance.

About the HEFTY™ Die Spring Series

HEFTY™ Die Springs offer you the economy of round wire and the durability of chrome silicon or music wire ideally suited for any high stress, heavy load application. Great for many applications such as clutches, brakes, farm machinery and aircraft mechanisms. Available in five different types with different load ratings to fit standard diameters.

HEFTY™ Die Spring Compression Springs have useful applications in various industries, including:

  • Medical devices
  • Firearms
  • Pharmaceutical delivery devices
  • Lighting and electrical control
  • Petro-chemical processes
  • Communication devices
  • Aerospace
  • Testing and measurement equipment
  • Marine applications
  • Automotive
  • Locks and security devices
  • Precision Instruments
  • Hardware

...and many more applications

418141
Product Compression OD 1.205 in, Length 2 in, Oil Tempered Chrome Silicon
Product Compression OD 30.61 mm, Length 50.8 mm, Oil Tempered Chrome Silicon
Part Number LHL 1250D 01
Series HEFTY™ Die Spring
Outside Diameter (inch) 1.205
Outside Diameter (cm) 3.061
Outside Diameter (mm) 30.61
Hole Diameter (inch) 1.25
Hole Diameter (cm) 3.175
Hole Diameter (mm) 31.75
Rod Diameter (inch) 0.625
Rod Diameter (cm) 1.588
Rod Diameter (mm) 15.88
Free Length (inch) 2
Free Length (cm) 5.08
Free Length (mm) 50.8
Rate (gm/mm) 29019.2
Rate (kg/cm) 290.193
Rate (kg/mm) 29.0193
Rate (lb/inch) 1625
Rate (gm/cm) 290192
Rate (N/cm) 2845.91
Rate (N/mm) 284.591
Solid Height (inch) 1.5
Solid Height (cm) 3.81
Solid Height (mm) 38.1
Wire Diameter (inch) 0.25
Wire Diameter (cm) 0.635
Wire Diameter (mm) 6.35
Material Oil Tempered Chrome Silicon
Load at Solid Height (gm) 368550
Load at Solid Height (kg) 368.55
Load at Solid Height (lb) 812.5
Load at Solid Height (N) 3614.18
Ends Squared and Ground
Active Coils 3.97
Direction of Wind Factory Option
Finish Orange Powder Coat
Total Coils 5.97
0.25 1.205 0.001 0.001 1.25 0.625 2 0.062 5.97 1625 162.5 1.5 812.5 0.25 2 1.205 6.35 30.61 0.04 31.75 15.88 50.8 1.575 284.591 38.1 3614.18

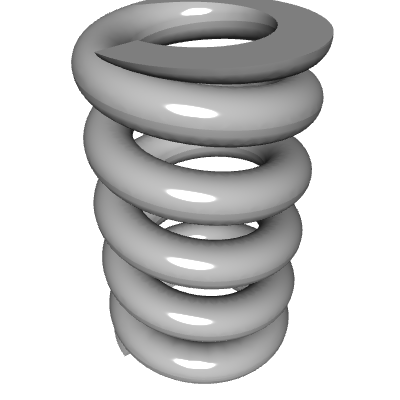

Default View

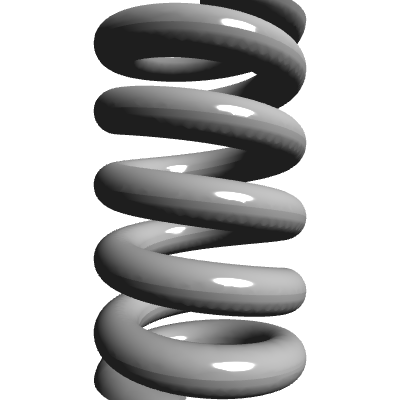

Side view

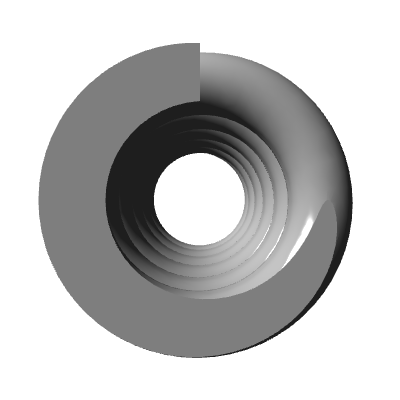

Top view
