Model Code
LHL

HEFTY™ Die Spring Compression Springs

Heavy Duty Compression Springs

Lee Spring LHL 1250C 11 is a heavy-duty die compression spring from the HEFTY™ Die Spring series, specifically engineered for demanding industrial applications requiring durabiliy and substantial load capacity. This spring features an 1.195-inch outside diameter (30.35 mm) with a 1.25-inch hole diameter (31.75 mm) and extends to a free length of 6 inch (152.4 mm), making it ideal for stamping and die applications. Made from Oil Tempered Chrome Silicon with a 0.243-inch wire diameter (6.17 mm), the spring delivers a spring rate of 390 lb/inch (68.302 N/mm) through its 14.9 active coils out of 16.9 total coils, with Factory Option wind for predictable deflection behavior. The spring compresses to a solid height of 4.12 inch (104.65 mm) while supporting a maximum load of 733.2 lb (3261.44 N) at full compression. The spring has Squared and Ground ends and a Black Powder Coat finish for optimal die spring performance.

About the HEFTY™ Die Spring Series

HEFTY™ Die Springs offer you the economy of round wire and the durability of chrome silicon or music wire ideally suited for any high stress, heavy load application. Great for many applications such as clutches, brakes, farm machinery and aircraft mechanisms. Available in five different types with different load ratings to fit standard diameters.

HEFTY™ Die Spring Compression Springs have useful applications in various industries, including:

  • Medical devices
  • Firearms
  • Pharmaceutical delivery devices
  • Lighting and electrical control
  • Petro-chemical processes
  • Communication devices
  • Aerospace
  • Testing and measurement equipment
  • Marine applications
  • Automotive
  • Locks and security devices
  • Precision Instruments
  • Hardware

...and many more applications

418111
Product Compression OD 1.195 in, Length 6 in, Oil Tempered Chrome Silicon
Product Compression OD 30.35 mm, Length 152.4 mm, Oil Tempered Chrome Silicon
Part Number LHL 1250C 11
Series HEFTY™ Die Spring
Outside Diameter (inch) 1.195
Outside Diameter (cm) 3.035
Outside Diameter (mm) 30.35
Hole Diameter (inch) 1.25
Hole Diameter (cm) 3.175
Hole Diameter (mm) 31.75
Rod Diameter (inch) 0.625
Rod Diameter (cm) 1.588
Rod Diameter (mm) 15.88
Free Length (inch) 6
Free Length (cm) 15.24
Free Length (mm) 152.4
Rate (gm/mm) 6964.62
Rate (kg/cm) 69.646
Rate (kg/mm) 6.9646
Rate (lb/inch) 390
Rate (gm/cm) 69646.2
Rate (N/cm) 683.02
Rate (N/mm) 68.302
Solid Height (inch) 4.12
Solid Height (cm) 10.465
Solid Height (mm) 104.65
Wire Diameter (inch) 0.243
Wire Diameter (cm) 0.617
Wire Diameter (mm) 6.17
Material Oil Tempered Chrome Silicon
Load at Solid Height (gm) 332580
Load at Solid Height (kg) 332.58
Load at Solid Height (lb) 733.2
Load at Solid Height (N) 3261.44
Ends Squared and Ground
Active Coils 14.9
Direction of Wind Factory Option
Finish Black Powder Coat
Total Coils 16.9
0.243 1.195 0.001 0.001 1.25 0.625 6 0.175 16.9 390 39 4.12 733.2 0.243 6 1.195 6.17 30.35 0.04 31.75 15.88 152.4 4.445 68.302 104.65 3261.44

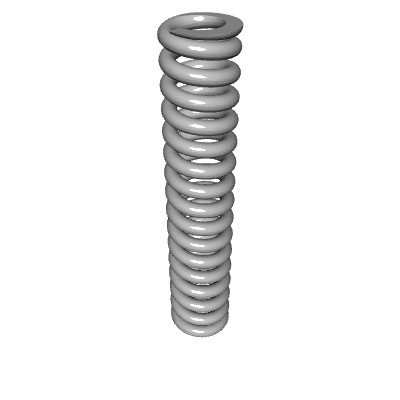

Default View
Side view

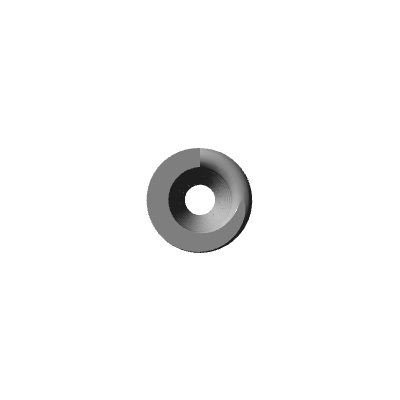

Top view
