Model Code
LHL

HEFTY™ Die Spring Compression Springs

Heavy Duty Compression Springs

Lee Spring LHL 1250C 06 is a heavy-duty die compression spring from the HEFTY™ Die Spring series, specifically engineered for demanding industrial applications requiring durabiliy and substantial load capacity. This spring features an 1.2-inch outside diameter (30.48 mm) with a 1.25-inch hole diameter (31.75 mm) and extends to a free length of 3.5 inch (88.9 mm), making it ideal for stamping and die applications. Made from Oil Tempered Chrome Silicon with a 0.243-inch wire diameter (6.17 mm), the spring delivers a spring rate of 715 lb/inch (125.22 N/mm) through its 8 active coils out of 10 total coils, with Factory Option wind for predictable deflection behavior. The spring compresses to a solid height of 2.44 inch (61.98 mm) while supporting a maximum load of 757.9 lb (3371.31 N) at full compression. The spring has Squared and Ground ends and a Black Powder Coat finish for optimal die spring performance.

About the HEFTY™ Die Spring Series

HEFTY™ Die Springs offer you the economy of round wire and the durability of chrome silicon or music wire ideally suited for any high stress, heavy load application. Great for many applications such as clutches, brakes, farm machinery and aircraft mechanisms. Available in five different types with different load ratings to fit standard diameters.

HEFTY™ Die Spring Compression Springs have useful applications in various industries, including:

  • Medical devices
  • Firearms
  • Pharmaceutical delivery devices
  • Lighting and electrical control
  • Petro-chemical processes
  • Communication devices
  • Aerospace
  • Testing and measurement equipment
  • Marine applications
  • Automotive
  • Locks and security devices
  • Precision Instruments
  • Hardware

...and many more applications

418061
Product Compression OD 1.2 in, Length 3.5 in, Oil Tempered Chrome Silicon
Product Compression OD 30.48 mm, Length 88.9 mm, Oil Tempered Chrome Silicon
Part Number LHL 1250C 06
Series HEFTY™ Die Spring
Outside Diameter (inch) 1.2
Outside Diameter (cm) 3.048
Outside Diameter (mm) 30.48
Hole Diameter (inch) 1.25
Hole Diameter (cm) 3.175
Hole Diameter (mm) 31.75
Rod Diameter (inch) 0.625
Rod Diameter (cm) 1.588
Rod Diameter (mm) 15.88
Free Length (inch) 3.5
Free Length (cm) 8.89
Free Length (mm) 88.9
Rate (gm/mm) 12768.5
Rate (kg/cm) 127.685
Rate (kg/mm) 12.7685
Rate (lb/inch) 715
Rate (gm/cm) 127685
Rate (N/cm) 1252.2
Rate (N/mm) 125.22
Solid Height (inch) 2.44
Solid Height (cm) 6.198
Solid Height (mm) 61.98
Wire Diameter (inch) 0.243
Wire Diameter (cm) 0.617
Wire Diameter (mm) 6.17
Material Oil Tempered Chrome Silicon
Load at Solid Height (gm) 343783
Load at Solid Height (kg) 343.783
Load at Solid Height (lb) 757.9
Load at Solid Height (N) 3371.31
Ends Squared and Ground
Active Coils 8
Direction of Wind Factory Option
Finish Black Powder Coat
Total Coils 10
0.243 1.2 0.001 0.001 1.25 0.625 3.5 0.125 10 715 71.5 2.44 757.9 0.243 3.5 1.2 6.17 30.48 0.04 31.75 15.88 88.9 3.175 125.22 61.98 3371.31

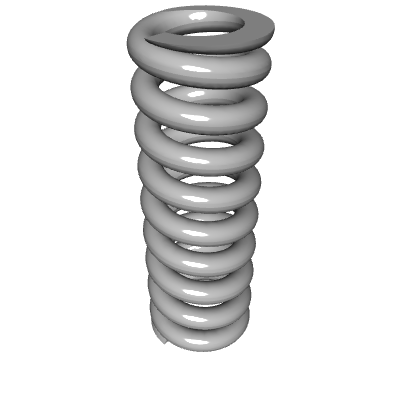

Default View

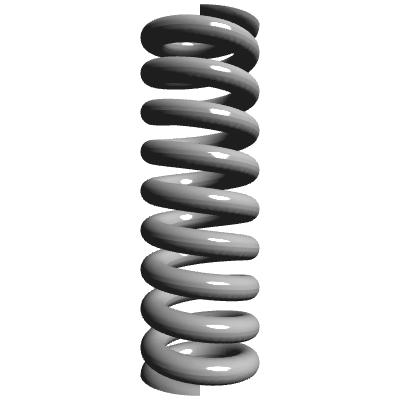

Side view
Top view
Quantity Price
1 - 24 $12.060
25 - 49 $10.680
50 - 99 $9.650
100 - 199 $8.350
200 - 299 $6.897
300 - 399 $6.297
400 - 499 $5.775
500 $5.329
