Model Code
LHL

HEFTY™ Die Spring Compression Springs

Heavy Duty Compression Springs

Lee Spring LHL 1250C 05 is a heavy-duty die compression spring from the HEFTY™ Die Spring series, specifically engineered for demanding industrial applications requiring durabiliy and substantial load capacity. This spring features an 1.18-inch outside diameter (29.97 mm) with a 1.25-inch hole diameter (31.75 mm) and extends to a free length of 3 inch (76.2 mm), making it ideal for stamping and die applications. Made from Oil Tempered Chrome Silicon with a 0.234-inch wire diameter (5.94 mm), the spring delivers a spring rate of 750 lb/inch (131.35 N/mm) through its 6.79 active coils out of 8.79 total coils, with Factory Option wind for predictable deflection behavior. The spring compresses to a solid height of 2.06 inch (52.32 mm) while supporting a maximum load of 705 lb (3136 N) at full compression. The spring has Squared and Ground ends and a Black Powder Coat finish for optimal die spring performance.

About the HEFTY™ Die Spring Series

HEFTY™ Die Springs offer you the economy of round wire and the durability of chrome silicon or music wire ideally suited for any high stress, heavy load application. Great for many applications such as clutches, brakes, farm machinery and aircraft mechanisms. Available in five different types with different load ratings to fit standard diameters.

HEFTY™ Die Spring Compression Springs have useful applications in various industries, including:

  • Medical devices
  • Firearms
  • Pharmaceutical delivery devices
  • Lighting and electrical control
  • Petro-chemical processes
  • Communication devices
  • Aerospace
  • Testing and measurement equipment
  • Marine applications
  • Automotive
  • Locks and security devices
  • Precision Instruments
  • Hardware

...and many more applications

418051
Product Compression OD 1.18 in, Length 3 in, Oil Tempered Chrome Silicon
Product Compression OD 29.97 mm, Length 76.2 mm, Oil Tempered Chrome Silicon
Part Number LHL 1250C 05
Series HEFTY™ Die Spring
Outside Diameter (inch) 1.18
Outside Diameter (cm) 2.997
Outside Diameter (mm) 29.97
Hole Diameter (inch) 1.25
Hole Diameter (cm) 3.175
Hole Diameter (mm) 31.75
Rod Diameter (inch) 0.625
Rod Diameter (cm) 1.588
Rod Diameter (mm) 15.88
Free Length (inch) 3
Free Length (cm) 7.62
Free Length (mm) 76.2
Rate (gm/mm) 13393.5
Rate (kg/cm) 133.935
Rate (kg/mm) 13.3935
Rate (lb/inch) 750
Rate (gm/cm) 133935
Rate (N/cm) 1313.5
Rate (N/mm) 131.35
Solid Height (inch) 2.06
Solid Height (cm) 5.232
Solid Height (mm) 52.32
Wire Diameter (inch) 0.234
Wire Diameter (cm) 0.594
Wire Diameter (mm) 5.94
Material Oil Tempered Chrome Silicon
Load at Solid Height (gm) 319788
Load at Solid Height (kg) 319.788
Load at Solid Height (lb) 705
Load at Solid Height (N) 3136
Ends Squared and Ground
Active Coils 6.79
Direction of Wind Factory Option
Finish Black Powder Coat
Total Coils 8.79
0.234 1.18 0.001 0.001 1.25 0.625 3 0.105 8.79 750 75 2.06 705 0.234 3 1.18 5.94 29.97 0.04 31.75 15.88 76.2 2.667 131.35 52.32 3136

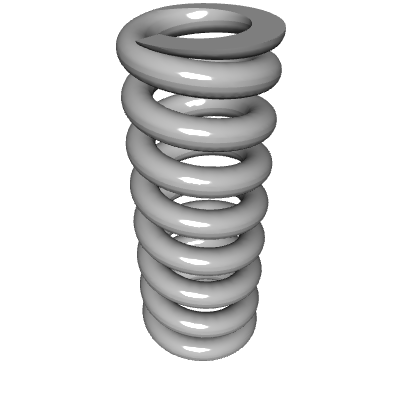

Default View

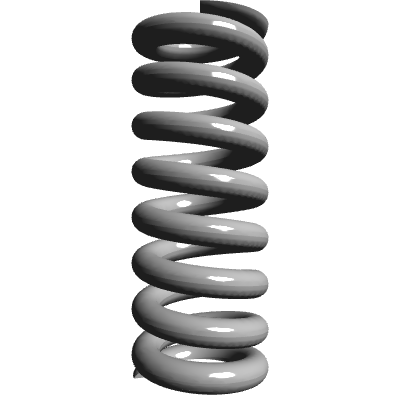

Side view

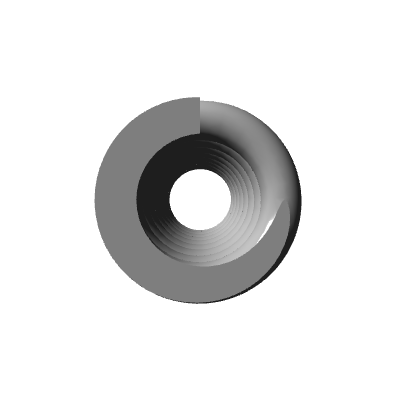

Top view
