Model Code
LHL

HEFTY™ Die Spring Compression Springs

Heavy Duty Compression Springs

Lee Spring LHL 1250C 01 is a heavy-duty die compression spring from the HEFTY™ Die Spring series, specifically engineered for demanding industrial applications requiring durabiliy and substantial load capacity. This spring features an 1.19-inch outside diameter (30.23 mm) with a 1.25-inch hole diameter (31.75 mm) and extends to a free length of 1.5 inch (38.1 mm), making it ideal for stamping and die applications. Made from Oil Tempered Chrome Silicon with a 0.225-inch wire diameter (5.72 mm), the spring delivers a spring rate of 1350 lb/inch (236.43 N/mm) through its 3.04 active coils out of 5.04 total coils, with Factory Option wind for predictable deflection behavior. The spring compresses to a solid height of 1.05 inch (26.67 mm) while supporting a maximum load of 607.5 lb (2702.29 N) at full compression. The spring has Squared and Ground ends and a Black Powder Coat finish for optimal die spring performance.

About the HEFTY™ Die Spring Series

HEFTY™ Die Springs offer you the economy of round wire and the durability of chrome silicon or music wire ideally suited for any high stress, heavy load application. Great for many applications such as clutches, brakes, farm machinery and aircraft mechanisms. Available in five different types with different load ratings to fit standard diameters.

HEFTY™ Die Spring Compression Springs have useful applications in various industries, including:

  • Medical devices
  • Firearms
  • Pharmaceutical delivery devices
  • Lighting and electrical control
  • Petro-chemical processes
  • Communication devices
  • Aerospace
  • Testing and measurement equipment
  • Marine applications
  • Automotive
  • Locks and security devices
  • Precision Instruments
  • Hardware

...and many more applications

418011

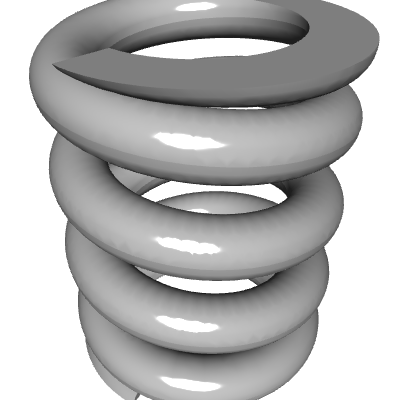

Product Compression OD 1.19 in, Length 1.5 in, Oil Tempered Chrome Silicon
Product Compression OD 30.23 mm, Length 38.1 mm, Oil Tempered Chrome Silicon
Part Number LHL 1250C 01
Series HEFTY™ Die Spring
Outside Diameter (inch) 1.19
Outside Diameter (cm) 3.023
Outside Diameter (mm) 30.23
Hole Diameter (inch) 1.25
Hole Diameter (cm) 3.175
Hole Diameter (mm) 31.75
Rod Diameter (inch) 0.625
Rod Diameter (cm) 1.588
Rod Diameter (mm) 15.88
Free Length (inch) 1.5
Free Length (cm) 3.81
Free Length (mm) 38.1
Rate (gm/mm) 24108.3
Rate (kg/cm) 241.083
Rate (kg/mm) 24.1083
Rate (lb/inch) 1350
Rate (gm/cm) 241083
Rate (N/cm) 2364.3
Rate (N/mm) 236.43
Solid Height (inch) 1.05
Solid Height (cm) 2.667
Solid Height (mm) 26.67
Wire Diameter (inch) 0.225
Wire Diameter (cm) 0.572
Wire Diameter (mm) 5.72
Material Oil Tempered Chrome Silicon
Load at Solid Height (gm) 275562
Load at Solid Height (kg) 275.562
Load at Solid Height (lb) 607.5
Load at Solid Height (N) 2702.29
Ends Squared and Ground
Active Coils 3.04
Direction of Wind Factory Option
Finish Black Powder Coat
Total Coils 5.04
0.225 1.19 0.001 0.001 1.25 0.625 1.5 0.048 5.04 1350 135 1.05 607.5 0.225 1.5 1.19 5.72 30.23 0.04 31.75 15.88 38.1 1.219 236.43 26.67 2702.29
Default View

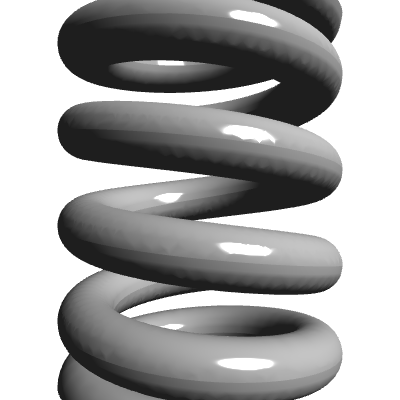

Side view

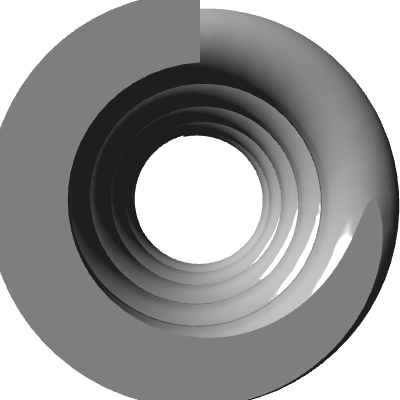

Top view
