Model Code
LHL

HEFTY™ Die Spring Compression Springs

Heavy Duty Compression Springs

Lee Spring LHL 1250B 12 is a heavy-duty die compression spring from the HEFTY™ Die Spring series, specifically engineered for demanding industrial applications requiring durabiliy and substantial load capacity. This spring features an 1.15-inch outside diameter (29.21 mm) with a 1.25-inch hole diameter (31.75 mm) and extends to a free length of 7 inch (177.8 mm), making it ideal for stamping and die applications. Made from Oil Tempered Chrome Silicon with a 0.207-inch wire diameter (5.26 mm), the spring delivers a spring rate of 174 lb/inch (30.473 N/mm) through its 18.09 active coils out of 20.09 total coils, with Factory Option wind for predictable deflection behavior. The spring compresses to a solid height of 4.158 inch (105.61 mm) while supporting a maximum load of 494.4 lb (2199.2 N) at full compression. The spring has Squared and Ground ends and a Purple Powder Coat finish for optimal die spring performance.

About the HEFTY™ Die Spring Series

HEFTY™ Die Springs offer you the economy of round wire and the durability of chrome silicon or music wire ideally suited for any high stress, heavy load application. Great for many applications such as clutches, brakes, farm machinery and aircraft mechanisms. Available in five different types with different load ratings to fit standard diameters.

HEFTY™ Die Spring Compression Springs have useful applications in various industries, including:

  • Medical devices
  • Firearms
  • Pharmaceutical delivery devices
  • Lighting and electrical control
  • Petro-chemical processes
  • Communication devices
  • Aerospace
  • Testing and measurement equipment
  • Marine applications
  • Automotive
  • Locks and security devices
  • Precision Instruments
  • Hardware

...and many more applications

417991
Product Compression OD 1.15 in, Length 7 in, Oil Tempered Chrome Silicon
Product Compression OD 29.21 mm, Length 177.8 mm, Oil Tempered Chrome Silicon
Part Number LHL 1250B 12
Series HEFTY™ Die Spring
Outside Diameter (inch) 1.15
Outside Diameter (cm) 2.921
Outside Diameter (mm) 29.21
Hole Diameter (inch) 1.25
Hole Diameter (cm) 3.175
Hole Diameter (mm) 31.75
Rod Diameter (inch) 0.625
Rod Diameter (cm) 1.588
Rod Diameter (mm) 15.88
Free Length (inch) 7
Free Length (cm) 17.78
Free Length (mm) 177.8
Rate (gm/mm) 3107.29
Rate (kg/cm) 31.073
Rate (kg/mm) 3.1073
Rate (lb/inch) 174
Rate (gm/cm) 31072.9
Rate (N/cm) 304.73
Rate (N/mm) 30.473
Solid Height (inch) 4.158
Solid Height (cm) 10.561
Solid Height (mm) 105.61
Wire Diameter (inch) 0.207
Wire Diameter (cm) 0.526
Wire Diameter (mm) 5.26
Material Oil Tempered Chrome Silicon
Load at Solid Height (gm) 224260
Load at Solid Height (kg) 224.26
Load at Solid Height (lb) 494.4
Load at Solid Height (N) 2199.2
Ends Squared and Ground
Active Coils 18.09
Direction of Wind Factory Option
Finish Purple Powder Coat
Total Coils 20.09
0.207 1.15 0.001 0.001 1.25 0.625 7 0.19 20.09 174 17.4 4.158 494.4 0.207 7 1.15 5.26 29.21 0.04 31.75 15.88 177.8 4.826 30.473 105.61 2199.2

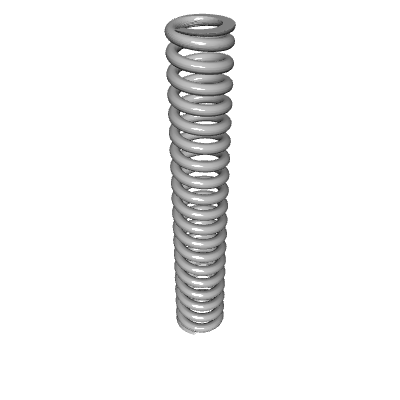

Default View
